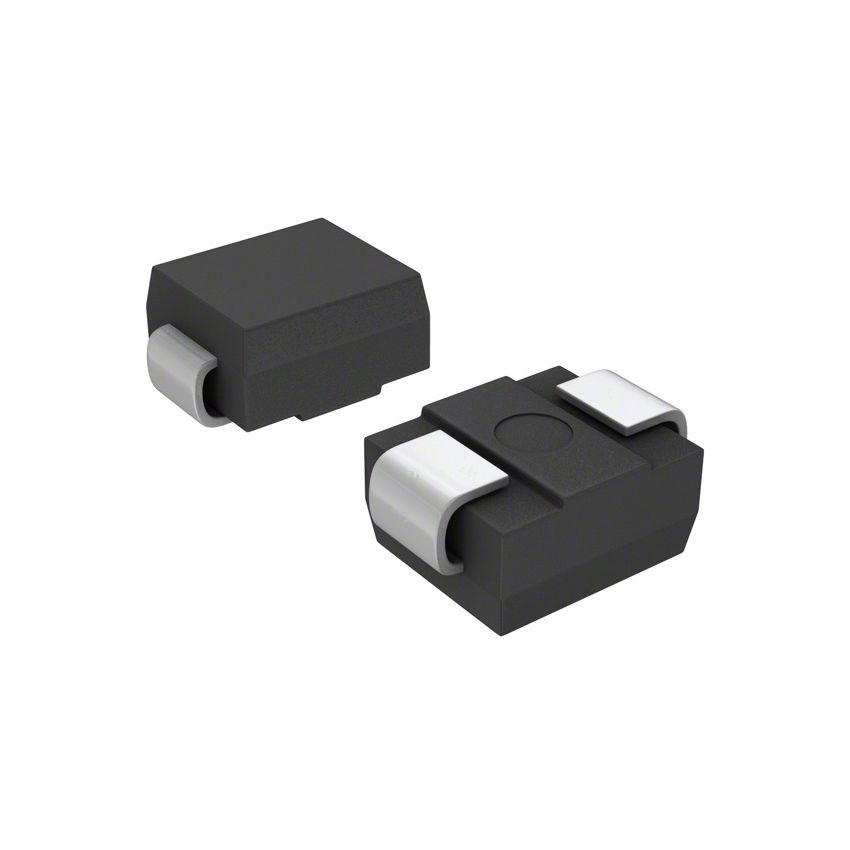

10BQ015TR DIODE SCHOTTKY 15V 1A DO214AA

FAQs for Products

1. What specific types of low-voltage, high-frequency applications is the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) ideally suited for?

   The 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) is exceptionally well-suited for a range of demanding low-voltage, high-frequency applications where efficiency and speed are paramount. Its design makes it an excellent choice for switch-mode power supplies (SMPS), DC-DC converters, and voltage clamping circuits, particularly in portable electronics and battery-powered devices. The fast switching capability of the 10BQ015TR Schottky Diode minimizes power losses during transitions, which is crucial in high-frequency rectification and freewheeling applications. Furthermore, its low forward voltage drop significantly contributes to enhanced energy efficiency, making it ideal for systems where heat dissipation must be minimized and battery life extended. Designers frequently select this 10BQ015TR Schottky Diode for its robust performance in environments requiring rapid current steering and minimal power loss.

2. How does the low forward voltage drop of the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) contribute to overall circuit efficiency and power dissipation?

   The inherent low forward voltage (Vf) drop of the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) is a critical advantage for improving circuit efficiency and reducing power dissipation. Unlike standard PN junction diodes, Schottky diodes achieve rectification with a significantly lower voltage drop across the junction when conducting. For the 10BQ015TR Schottky Diode, this means less energy is converted into heat during operation, as power dissipation (P_diss) is directly proportional to Vf × I_forward. In applications like power conversion, where the diode handles continuous current, even a small reduction in Vf can lead to substantial energy savings and cooler operation. This characteristic makes the 10BQ015TR an excellent component for energy-efficient designs, extending battery life in portable devices and reducing the need for elaborate thermal management solutions in compact systems, thereby enhancing overall system reliability and performance.

3. What benefits does the fast switching speed of the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) offer in high-frequency designs?

   The fast switching speed of the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) is a key attribute for optimizing performance in high-frequency designs. Traditional PN junction diodes suffer from reverse recovery time, where a momentary reverse current flows when the diode switches from forward conduction to reverse bias. This reverse recovery current leads to power losses and generates electromagnetic interference (EMI). The 10BQ015TR Schottky Diode, by virtue of its metal-semiconductor junction, exhibits negligible reverse recovery time, allowing it to switch states almost instantaneously. This rapid switching minimizes switching losses, making the 10BQ015TR Schottky Diode highly efficient in high-frequency rectification, freewheeling, and clamping circuits found in modern power supplies and converters. Its superior switching characteristics contribute to cleaner waveforms, reduced EMI, and overall improved system stability and efficiency at higher operating frequencies.

4. What are the practical considerations for integrating the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) into a surface mount design, specifically regarding its DO-214AA (SMB) package?

   Integrating the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) into a surface mount design requires attention to its DO-214AA (SMB) package characteristics. The SMB package is a widely adopted surface mount format, offering a good balance of compact size and power handling capability. When designing the PCB layout, it's crucial to follow the recommended land patterns for the DO-214AA package to ensure proper soldering, mechanical stability, and thermal dissipation. The thermal pad underneath the device should be connected to a sufficient copper area or thermal vias to facilitate heat transfer away from the 10BQ015TR Schottky Diode, especially when operating at its maximum current rating. Careful consideration of solder paste stencil design and reflow profiling is also important to prevent issues like tombstoning or insufficient solder joints, ensuring reliable operation of the 10BQ015TR in the final assembly. Its compact footprint makes it suitable for miniaturized electronic devices.

5. What are the critical reverse voltage and current considerations when designing with the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) to ensure reliability?

   When designing with the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA), the reverse voltage (VR) and reverse current (IR) specifications are crucial for ensuring long-term reliability and preventing device failure. The 10BQ015TR has a maximum reverse voltage rating of 15V. It is imperative that the peak reverse voltage encountered in the circuit, including any transient overshoots, never exceeds this rating. Exceeding the VR can lead to avalanche breakdown and permanent damage to the diode. While Schottky diodes offer low forward voltage, they typically have higher reverse leakage current (IR) compared to standard silicon diodes, especially at elevated temperatures. Designers must account for this IR, as it contributes to power loss and can affect circuit accuracy in sensitive applications. Although the 10BQ015TR's IR is optimized for its class, understanding its magnitude at the expected operating temperature is vital to avoid unintended current paths or excessive power dissipation when the diode is reverse biased, thus ensuring the reliability of the 10BQ015TR Schottky Diode.

6. Given its 1A current rating, what thermal management strategies should be considered when using the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) in continuous operation?

   For continuous operation at its 1A current rating, effective thermal management is crucial for the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) to prevent overheating and maintain optimal performance and longevity. Despite its low forward voltage drop, power dissipation will occur, generating heat within the compact SMB package. The primary strategy involves maximizing heat transfer from the diode to the ambient environment, typically through the PCB traces. A generous copper pour connected to the cathode terminal (which typically serves as the primary heat sink for SMB packages) is highly recommended. Utilizing thermal vias to connect this copper area to internal ground or power planes can further enhance heat dissipation. In confined enclosures or high-ambient temperature applications, additional measures like forced air cooling or external heatsinks may be necessary, although less common for this power level. Monitoring the junction temperature (Tj) is key to ensuring the 10BQ015TR Schottky Diode operates within its specified limits, preventing thermal runaway and extending its operational lifespan.

7. Can the 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) be effectively used for transient voltage suppression or reverse polarity protection in sensitive electronics?

   The 10BQ015TR Schottky Diode 15V 1A SMB (DO-214AA) can indeed be effectively utilized for reverse polarity protection in sensitive electronics due to its low forward voltage drop. When placed in series with the power input, it allows current to flow with minimal voltage loss when correctly polarized, while blocking current flow if the polarity is reversed, thereby protecting downstream components. For transient voltage suppression (TVS), while the 10BQ015TR Schottky Diode offers some clamping action, its primary function is not dedicated TVS protection. Its 15V reverse voltage rating means it would conduct at or above this voltage, potentially allowing damaging transients through if they exceed this level significantly. For robust TVS, a dedicated transient voltage suppressor diode (TVS diode) with a precise breakdown voltage and high peak pulse power capability is generally preferred. However, for minor transient clamping or basic overvoltage protection in conjunction with other components, the 10BQ015TR Schottky Diode can provide a degree of protection, especially when its fast response time is beneficial in sensitive, low-voltage circuits.
