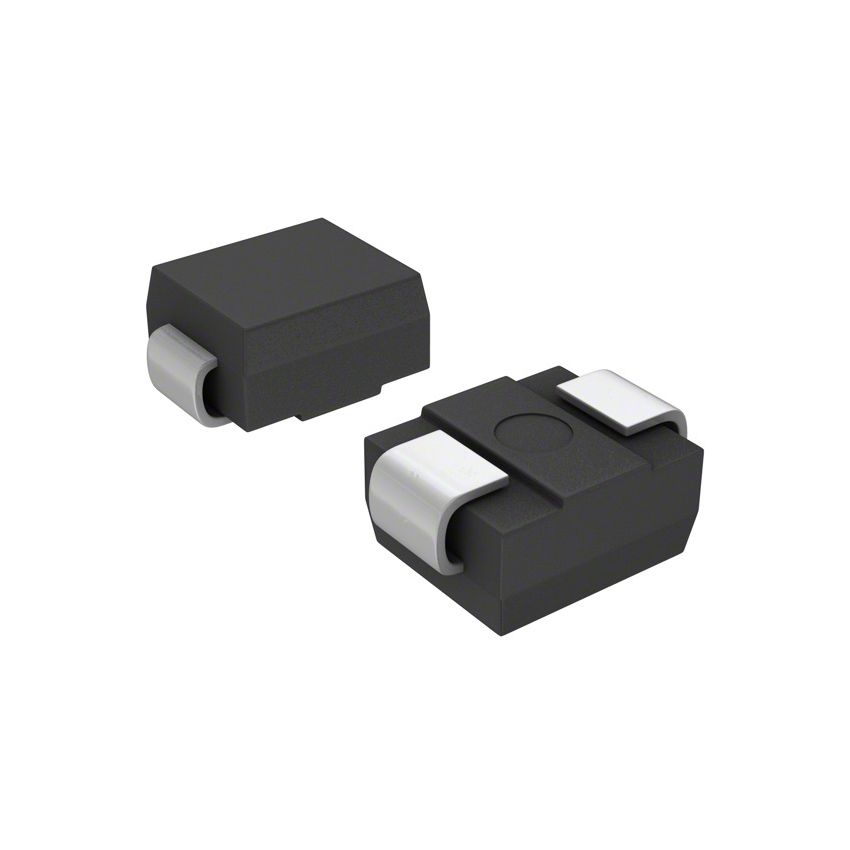

10BQ030TR Diode: Schottky rectifying; SMB; SMD; 30V; 1A

FAQs for Products

1. What are the primary advantages of utilizing the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A over a standard silicon rectifier in low-voltage power conversion circuits?

   The 10BQ030TR SMB Schottky Rectifier Diode 30V 1A offers significant advantages over conventional silicon rectifiers, particularly in low-voltage power conversion circuits where efficiency is paramount. Its key benefit lies in a substantially lower forward voltage drop (Vf), typically in the range of 0.3V to 0.4V, compared to 0.7V or more for standard silicon diodes. This reduced Vf directly translates to lower power dissipation and improved energy efficiency, making the 10BQ030TR ideal for battery-powered devices and energy-sensitive applications. Furthermore, Schottky diodes exhibit much faster switching speeds due to their minimal reverse recovery time (trr). This characteristic is crucial in high-frequency switching power supplies and DC-DC converters, where rapid switching minimizes losses during transitions, enhancing overall circuit performance and reducing heat generation. The 10BQ030TR's SMB package also ensures a compact footprint for space-constrained designs.

2. For what specific types of applications is the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A particularly well-suited, considering its 30V/1A rating and SMB package?

   The 10BQ030TR SMB Schottky Rectifier Diode 30V 1A is exceptionally well-suited for a variety of low-power, space-constrained, and high-efficiency applications. Its 30V reverse voltage rating makes it suitable for rectification in 3.3V, 5V, 12V, or even 24V power rails, while the 1A forward current capacity handles moderate load requirements. Typical applications include secondary rectification in switching mode power supplies (SMPS) for consumer electronics, freewheeling diodes in motor drive circuits or inductive load switching, and voltage clamping. It's also an excellent choice for reverse polarity protection in portable devices, battery charging circuits, and DC-DC converters where its low forward voltage drop minimizes power loss and extends battery life. The compact SMB package facilitates automated assembly and integration into dense PCB layouts common in modern electronic products.

3. What are the key considerations for thermal management when integrating the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A into a compact PCB design, given its 1A current rating?

   Effective thermal management is crucial for the long-term reliability and performance of the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A, especially when operating near its 1A current rating. Although Schottky diodes have a low forward voltage drop, power dissipation (P = Vf * If) still generates heat. In the compact SMB package, the primary heat dissipation path is through the PCB traces and copper planes. Designers should utilize generous copper areas connected to the diode's anode and cathode pads to act as heatsinks. Employing thermal vias to inner copper layers can further enhance heat transfer. Ambient temperature, airflow, and the proximity of other heat-generating components on the PCB must also be considered. Operating the 10BQ030TR within its specified maximum junction temperature is vital to prevent thermal runaway and ensure its rated lifespan and electrical characteristics are maintained.

4. How does the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A perform under transient voltage conditions or reverse current spikes, and what precautions should be taken?

   The 10BQ030TR SMB Schottky Rectifier Diode 30V 1A is designed to handle its specified reverse voltage of 30V. However, like all semiconductor devices, it has limits regarding transient voltage conditions and reverse current spikes. While Schottky diodes generally exhibit robust performance due to their fast response, exceeding the absolute maximum reverse voltage rating (VRRM) even momentarily can lead to irreversible damage. For applications prone to voltage transients, such as those with inductive loads or noisy power lines, it is crucial to implement external protection. This often involves using transient voltage suppression (TVS) diodes or snubber circuits in parallel with the 10BQ030TR to absorb excessive energy and clamp transient voltages below the diode's breakdown threshold. Careful circuit design to minimize inductance and proper PCB layout also contribute to the diode's resilience against unexpected voltage spikes, ensuring reliable long-term operation.

5. When selecting a diode for a 5V power rail, how does the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A compare to alternative low-voltage Schottky diodes in terms of forward voltage drop and reverse leakage current?

   For a 5V power rail application, the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A offers an excellent balance of characteristics. Its forward voltage drop (Vf) is typically very low, often around 0.3V to 0.4V at its rated 1A forward current, which is competitive with many other low-voltage Schottky diodes. This low Vf is critical for minimizing power loss and improving efficiency in 5V systems. Regarding reverse leakage current (IR), Schottky diodes inherently have higher leakage compared to standard silicon PN junction diodes. For the 10BQ030TR, this leakage current is specified in its datasheet and is generally in the microampere range at room temperature, increasing with temperature. When comparing to alternatives, designers must weigh the trade-off: some ultra-low Vf Schottky diodes might have slightly higher leakage, while others with lower leakage might have a marginally higher Vf. The 10BQ030TR provides a robust solution with a good compromise between low Vf and acceptable leakage for most 5V, 1A applications, ensuring efficient and reliable operation.

6. What are the recommended soldering profiles and handling guidelines for the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A in high-volume surface mount assembly processes?

   For high-volume surface mount assembly of the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A, adherence to industry-standard soldering profiles is essential to prevent damage and ensure reliable connections. The SMB package is suitable for reflow soldering processes. Typically, a lead-free reflow profile compliant with JEDEC J-STD-020 (e.g., peak temperature of 245-255°C for a short duration, with a ramp-up and ramp-down rate) is recommended. The preheat stage is crucial to prevent thermal shock. Hand soldering is generally discouraged due to inconsistent heat application but if necessary, should be performed quickly (e.g., within 3-5 seconds at 350°C) with minimal contact. Proper handling practices include storing the 10BQ030TR in moisture-barrier bags to prevent moisture absorption, which can lead to popcorn effect during reflow. ESD precautions must also be observed during handling and assembly to protect the semiconductor junction from static discharge.

7. What are the typical long-term reliability characteristics and potential degradation mechanisms of the 10BQ030TR SMB Schottky Rectifier Diode 30V 1A, especially in applications near its maximum ratings?

   The 10BQ030TR SMB Schottky Rectifier Diode 30V 1A is designed for high reliability, but its long-term performance can be influenced by operating conditions, especially when pushed near its maximum ratings. The primary degradation mechanisms include thermal stress and electromigration. Continuous operation at or above the maximum rated junction temperature can accelerate aging, leading to an increase in reverse leakage current (IR) and potentially a slight increase in forward voltage drop (Vf). This can eventually cause thermal runaway if not properly managed, resulting in device failure. Electromigration, while more common in ICs, can also affect the metallization within the diode under high current densities over extended periods. To ensure optimal long-term reliability, it is recommended to operate the 10BQ030TR with sufficient derating on both current and voltage, maintaining the junction temperature well below its absolute maximum. Proper thermal design and protection against transient overvoltages significantly contribute to the diode's extended operational lifespan.
