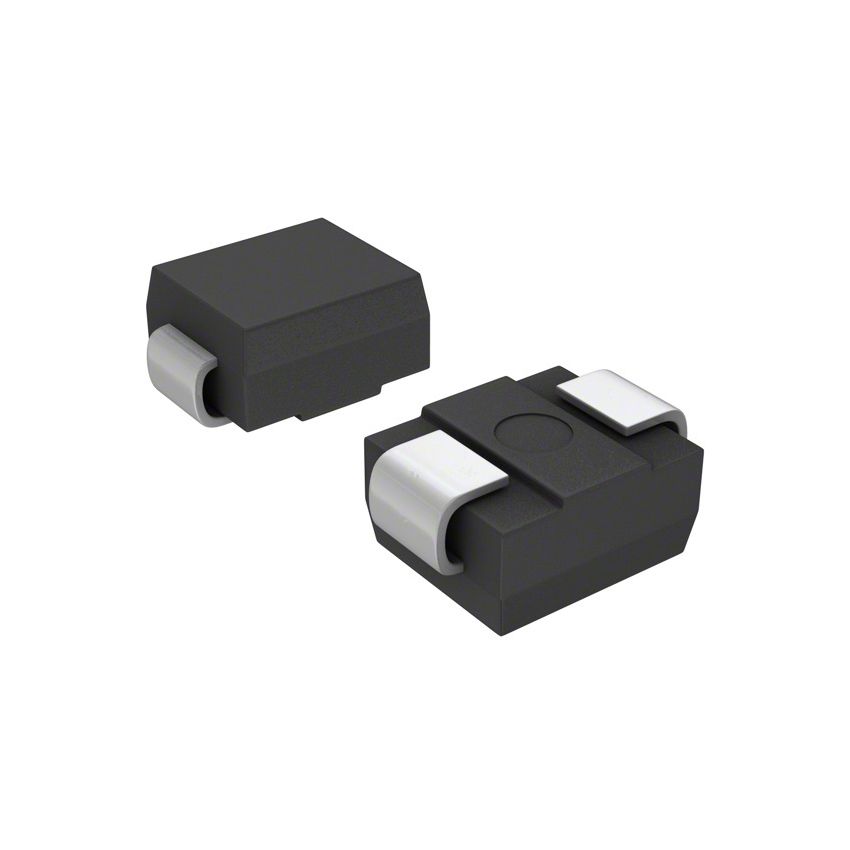

10BQ040TR DIODE SCHOTTKY 40V 1A DO214AA

FAQs for Products

1. What are the primary benefits of using the 10BQ040TR Schottky Diode over a standard silicon diode in power rectification applications?

   The 10BQ040TR Schottky Diode offers significant advantages over conventional silicon diodes, particularly in power rectification applications where efficiency is paramount. Its key benefit lies in its remarkably low forward voltage drop (VF). This characteristic means less power is dissipated as heat across the diode during conduction, leading to cooler operation and improved energy efficiency. Furthermore, the Schottky barrier construction of the 10BQ040TR Schottky Diode results in a much faster switching speed and minimal reverse recovery time. This makes it highly suitable for high-frequency switching power supplies and DC-DC converters, where rapid transitions are essential to maintain circuit performance and minimize switching losses. For designers focused on reducing power consumption and enhancing thermal management in their electronic systems, the 10BQ040TR Schottky Diode provides a superior solution.

2. In what types of circuits is the 10BQ040TR Schottky Diode most effectively utilized, given its 40V, 1A rating and SMB package?

   The 10BQ040TR Schottky Diode, with its 40V reverse voltage, 1A forward current capacity, and compact DO214AA (SMB) surface-mount package, is ideally suited for a wide array of applications demanding efficient power management in space-constrained designs. It excels in circuits requiring efficient rectification, such as switch-mode power supplies (SMPS) for secondary rectification, DC-DC converters, and voltage clamping applications. Its low forward voltage drop makes the 10BQ040TR Schottky Diode an excellent choice for battery-powered devices and portable electronics where minimizing power loss extends battery life. Additionally, it is frequently employed in reverse polarity protection circuits, freewheeling applications for inductive loads, and various general-purpose rectification tasks in consumer electronics, industrial controls, and automotive systems where its robust specifications and small footprint are highly valued.

3. How does the DO214AA (SMB) package of the 10BQ040TR Schottky Diode influence its thermal performance and suitability for surface-mount designs?

   The DO214AA (SMB) package of the 10BQ040TR Schottky Diode is specifically engineered for surface-mount technology (SMT), offering a balance of compact size and effective thermal dissipation. This package features larger metal tabs compared to smaller SMT packages, which are designed to be soldered directly to the PCB's copper traces. These traces act as heat sinks, drawing heat away from the diode junction. While compact, the SMB package provides a sufficient thermal path for the 1A current rating of the 10BQ040TR Schottky Diode under typical operating conditions, especially when proper PCB layout and copper area are considered. Its robust construction ensures reliable performance in various environmental conditions, making the 10BQ040TR Schottky Diode a practical choice for high-density electronic assemblies where space efficiency and thermal management are critical design considerations.

4. What are the considerations for selecting the 10BQ040TR Schottky Diode for reverse polarity protection or freewheeling applications?

   When selecting the 10BQ040TR Schottky Diode for reverse polarity protection or freewheeling applications, several factors related to its specifications are crucial. For reverse polarity protection, the diode's 40V reverse voltage rating must exceed the maximum expected reverse voltage of the power supply or circuit. The 1A forward current capacity must also be sufficient to handle the maximum continuous current that the protected circuit draws. In freewheeling applications, such as across relay coils or motor windings, the 10BQ040TR Schottky Diode's fast switching speed and low forward voltage drop are highly advantageous. Its rapid response minimizes voltage spikes generated by inductive loads during turn-off, protecting sensitive components. The SMB package further facilitates integration into compact designs, making the 10BQ040TR Schottky Diode an excellent choice for these protective and energy-saving roles.

5. Can the 10BQ040TR Schottky Diode be used in high-frequency switching applications, and what characteristics support this?

   Yes, the 10BQ040TR Schottky Diode is particularly well-suited for high-frequency switching applications, a key advantage of Schottky barrier diodes. Its fundamental characteristic, the absence of minority carrier storage effects, means it exhibits virtually no reverse recovery time. Unlike standard PN junction diodes that require time for stored charge to dissipate during reverse bias, the 10BQ040TR Schottky Diode can switch from forward conduction to reverse blocking states almost instantaneously. This rapid switching capability significantly reduces switching losses in high-frequency circuits, such as switch-mode power supplies, DC-DC converters, and inverters. The minimal reverse recovery current also reduces EMI generation, contributing to a cleaner power environment. Therefore, the 10BQ040TR Schottky Diode is an excellent component for enhancing efficiency and performance in demanding high-frequency power conversion designs.

6. What is the typical forward voltage drop (VF) of the 10BQ040TR Schottky Diode at its rated current, and how does this impact power dissipation?

   The typical forward voltage drop (VF) of the 10BQ040TR Schottky Diode is significantly lower than that of conventional silicon diodes, usually in the range of 0.3V to 0.5V at its rated 1A forward current, depending on temperature. This low VF is a critical performance metric for Schottky diodes. The impact on power dissipation is direct and substantial: power dissipated by the diode is calculated as P_dissipation = VF × IF. With a lower VF, the 10BQ040TR Schottky Diode dissipates less power as heat for a given current, compared to a standard silicon diode which might have a VF of 0.7V or higher. This reduced power loss translates to higher overall system efficiency, less heat generation, and potentially eliminates the need for bulky heat sinks, making the 10BQ040TR Schottky Diode ideal for energy-efficient and compact electronic designs.

7. What are the recommended soldering guidelines and handling precautions for the surface-mount 10BQ040TR Schottky Diode?

   For optimal performance and reliability of the surface-mount 10BQ040TR Schottky Diode in its DO214AA (SMB) package, adherence to proper soldering guidelines and handling precautions is essential. For reflow soldering, a standard lead-free profile with a peak temperature typically not exceeding 260°C for a short duration (e.g., 10 seconds) is recommended, following JEDEC J-STD-020 standards. Manual soldering should be performed quickly, with a soldering iron tip temperature below 350°C and contact time limited to 3-5 seconds to prevent thermal damage. Always allow the component to cool completely between passes. When handling the 10BQ040TR Schottky Diode, use anti-static precautions to prevent electrostatic discharge (ESD) damage, as semiconductors are sensitive to static electricity. Store in original packaging in a dry, controlled environment to avoid moisture absorption, which can lead to popcorn effect during reflow.
