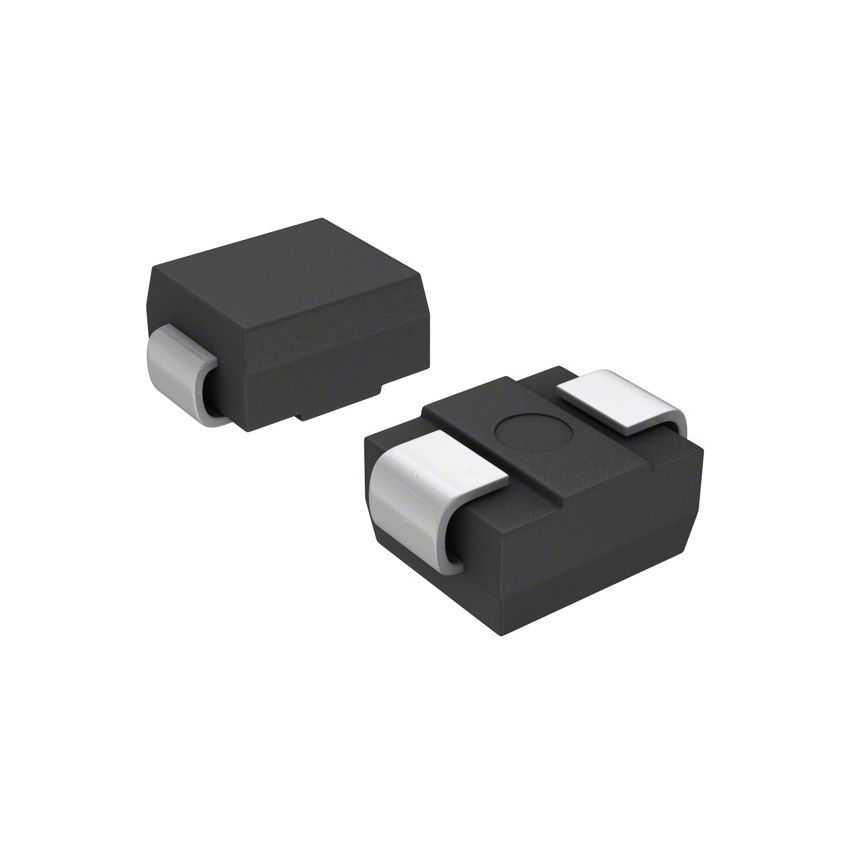

10BQ060TR DIODE SCHOTTKY 60V 1A DO214AA

FAQs for Products

1. What are the primary advantages of the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) regarding forward voltage drop and overall system efficiency compared to standard silicon rectifiers?

   The 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) offers significant advantages in terms of forward voltage drop (Vf) and system efficiency. Its Schottky barrier construction results in a substantially lower Vf compared to conventional PN junction silicon diodes, especially at higher forward currents. This reduced voltage drop translates directly into less power dissipation in the diode itself, as P_loss = I_F * V_F. For applications requiring efficient rectification or power conversion, such as DC-DC converters, switch-mode power supplies, and battery-powered devices, this minimized power loss is crucial. It leads to lower heat generation, simplifying thermal management, and enhancing the overall energy efficiency of the circuit. Furthermore, the lower Vf of the 10BQ060TR Schottky Diode can extend battery life in portable electronics and reduce operational costs in continuous-run systems, making it a preferred choice for energy-conscious designs.

2. How does the fast reverse recovery time of the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) benefit high-frequency switching applications?

   The 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) is characterized by an extremely fast, almost negligible, reverse recovery time (t_rr). Unlike conventional PN junction diodes that store a significant amount of charge during forward conduction, Schottky diodes have a metal-semiconductor junction that minimizes charge storage. When the diode switches from forward conduction to reverse blocking, this lack of stored charge allows it to transition very quickly, virtually without a reverse current spike. This characteristic is immensely beneficial in high-frequency switching applications like switch-mode power supplies (SMPS), DC-DC converters, and motor drive circuits. A short t_rr reduces switching losses, which are a major source of inefficiency and heat generation at high frequencies. It also minimizes electromagnetic interference (EMI) generated during the reverse recovery process, contributing to a cleaner and more stable power environment for sensitive components.

3. What considerations are important for thermal management when utilizing the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) in continuous 1A current applications?

   When operating the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) in continuous 1A current applications, effective thermal management is crucial to prevent the junction temperature (Tj) from exceeding its maximum rating, which could lead to performance degradation or device failure. While the low forward voltage drop of the 10BQ060TR minimizes power dissipation compared to standard diodes, at 1A, some heat will still be generated. The SMB (DO-214AA) package is designed for surface mounting and relies heavily on the PCB copper traces for heat spreading. Therefore, designing the PCB with adequate copper pour connected to the diode's terminals, particularly the cathode, is essential to act as a heatsink. For demanding applications or higher ambient temperatures, designers might consider increasing the copper area or even incorporating thermal vias to dissipate heat more effectively to inner layers or the underside of the PCB, ensuring the 10BQ060TR operates within its safe operating area.

4. For which specific circuit applications is the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) most ideally suited, given its 60V/1A rating and low Vf?

   The 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) is exceptionally well-suited for a variety of circuit applications that benefit from its low forward voltage drop, fast switching speed, and compact surface-mount package. Its 60V reverse voltage rating makes it suitable for many 5V, 12V, or 24V systems, while the 1A forward current capacity supports moderate power requirements. Key applications include freewheeling diodes in inductive load circuits (e.g., motor drives, relays, solenoids) where its fast recovery prevents damaging voltage spikes. It's also ideal for polarity protection in DC power inputs, reverse battery protection, and output rectification in low-voltage, high-frequency switch-mode power supplies. Furthermore, the 10BQ060TR is frequently employed in OR-ing diode configurations for power redundancy or in clamping circuits where fast response and minimal voltage drop are critical for circuit protection and efficient power delivery.

5. What are the typical reverse leakage current characteristics of the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) and how might this impact low-power or battery-operated designs?

   Schottky diodes, including the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA), inherently exhibit a higher reverse leakage current (IR) compared to standard silicon PN junction diodes. This leakage current, which flows when the diode is reverse-biased, is typically in the microampere range at room temperature but significantly increases with rising junction temperature. For low-power or battery-operated designs, this characteristic of the 10BQ060TR can be a critical consideration. In standby modes or circuits where the diode is continuously reverse-biased, a higher leakage current contributes to quiescent power consumption, potentially reducing battery life. Designers must carefully evaluate the trade-off between the low forward voltage drop (which saves power during conduction) and the reverse leakage current (which consumes power during blocking) to ensure the 10BQ060TR aligns with the overall power budget and efficiency requirements of their specific application, especially in extremely sensitive or long-duration battery systems.

6. Can you elaborate on the mounting requirements and mechanical robustness of the DO-214AA (SMB) package for the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA)?

   The 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) is housed in the industry-standard DO-214AA surface-mount package, commonly known as SMB. This package is designed for automated assembly processes, facilitating high-volume manufacturing. Mounting involves reflow soldering onto appropriately designed PCB pads. The SMB package offers a good balance between component size and power handling capability, making it suitable for compact designs without overly compromising thermal performance. Mechanically, the DO-214AA package is quite robust for its size, featuring robust leads that provide reliable electrical and thermal connections. When correctly soldered, the package withstands typical mechanical stresses encountered in electronic assemblies. Proper solder joint integrity is crucial, not only for electrical connection but also for efficient heat transfer from the diode junction to the PCB, ensuring the long-term reliability and performance of the 10BQ060TR in its intended application environments.

7. What is the surge current handling capability of the 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) and how does this relate to circuit protection against transient events?

   The 10BQ060TR Schottky Diode 60V 1A SMB (DO-214AA) possesses a specified non-repetitive peak forward surge current (I_FSM) rating, which indicates its ability to withstand momentary, high-current transients for a very short duration, typically a single half-sine wave pulse of 8.3ms or 10ms. This rating is critical for circuit protection, as it defines the diode's robustness against events like power-up inrush currents, capacitive charging currents, or brief fault conditions. While the continuous forward current rating is 1A, the I_FSM for the 10BQ060TR will be significantly higher, allowing it to absorb temporary overcurrents without immediate damage. When designing circuits, it's essential to ensure that any expected surge currents, such as those from capacitor charging at power-on, do not exceed the I_FSM rating of the 10BQ060TR Schottky Diode, considering the pulse duration. This helps in selecting appropriate fuses or other protection mechanisms to coordinate with the diode's surge capability, safeguarding the overall circuit reliability.
