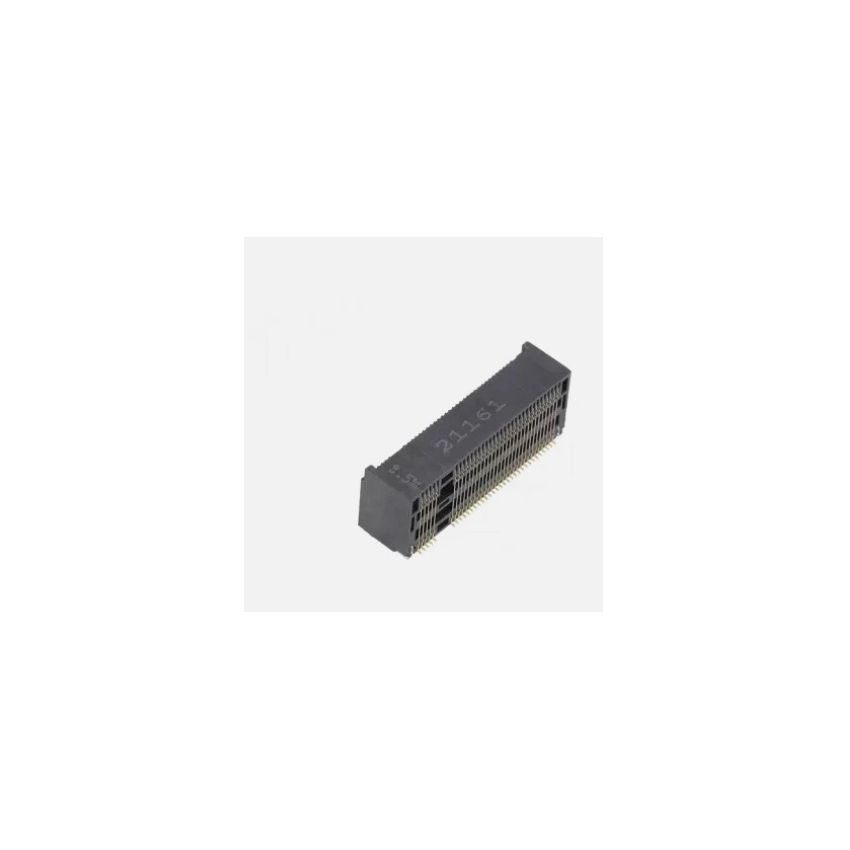

123A-85MA0 Connector: M.2 (NGFF); horizontal; SMT; gold flash; PIN: 67; 0.5A
Safe Checkout, Guaranteed
The 123A-85MA0 is a meticulously designed M.2 (NGFF) connector, perfectly suited for horizontal surface mount technology (SMT) applications. It boasts a high-quality gold flash finish, ensuring exceptional conductivity and resistance to corrosion for a long-lasting and reliable connection. Featuring a 67-pin configuration, this connector provides comprehensive support for a wide range of M.2 modules, including solid-state drives (SSDs), wireless communication modules, and other peripherals. With a current rating of 0.5A, it's designed to efficiently power connected devices while maintaining optimal performance. This connector is an essential component for modern electronic devices, offering high-speed data transfer and robust connectivity in a compact and efficient form factor. Its SMT compatibility simplifies the assembly process, making it an ideal choice for high-volume manufacturing and automated production lines.
The M.2 (NGFF) standard is the industry benchmark for high-performance storage and communication interfaces, and the 123A-85MA0 connector is engineered to meet and exceed these rigorous standards. Its horizontal orientation allows for easy insertion and removal of M.2 modules, simplifying maintenance and upgrades. The SMT design ensures precise and secure attachment to the PCB, minimizing the risk of misalignment and ensuring consistent performance even in demanding environments. The gold flash finish not only enhances conductivity but also provides exceptional protection against environmental factors, ensuring long-term reliability and minimizing signal degradation. Key features of the 123A-85MA0 connector include its comprehensive 67-pin configuration, which supports a variety of communication protocols, including PCI Express (PCIe), SATA, and USB, offering maximum flexibility for system design. This adaptability allows engineers to create versatile solutions that can accommodate different M.2 module types and configurations.
The robust construction of the connector ensures durability and reliable performance even under harsh conditions. Its wide range of applications makes it an invaluable component for laptops, desktops, servers, and embedded systems. Whether you're designing a high-performance SSD, a cutting-edge wireless communication module, or a custom embedded system, this M.2 connector delivers exceptional performance and reliability. Furthermore, the connector is designed to minimize signal interference, ensuring optimal data transfer rates and maximizing overall system performance. Choose the 123A-85MA0 M.2 connector for a reliable, versatile, and high-performance solution to your connectivity needs. Its gold flash finish, 67 pins, and SMT compatibility make it an easy and efficient addition to your PCB, ensuring the reliability and performance of your devices.
Don't settle for less when it comes to connectivity - order your 123A-85MA0 M.2 connector today and unlock the full potential of your M.2 modules. Invest in quality, invest in performance, invest in the 123A-85MA0.
| Product Name | 123A-85MA0 Connector: M.2 (NGFF); horizontal; SMT; gold flash; PIN: 67; 0.5A |
|---|---|
| SKU | 123A-85MA0 |
| Price | £4.99 |
| 123A-85MA0 Connector: M.2 (NGFF); horizontal; SMT; gold flash; PIN: 67; 0.5A Color | As per image |
| Category | Connectors |
| Brand | Nikko Electronics ltd |
| Product Code | 123A-85MA0 |
| Availability | Yes |
Shipping cost is based on order value. Just add products to your cart and use the Shipping Calculator to see the shipping price. We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
The 123A-85MA0 M.2 NGFF Horizontal SMT Connector features a 67-pin configuration, which is standard for M.2 form factors. This specific pin count typically indicates support for M.2 modules with a B-Key or M-Key notch, or potentially a B+M Key, depending on the specific pinout implementation. M.2 connectors are highly versatile, designed to accommodate various module types such as SSDs (NVMe and SATA), Wi-Fi cards, Bluetooth modules, and other peripherals. For precise compatibility, system integrators should cross-reference the module's keying and pinout with the connector's mechanical and electrical specifications. The 123A-85MA0 M.2 NGFF Horizontal SMT Connector is engineered to provide robust electrical contact for all 67 pins, ensuring comprehensive data and power transfer for compatible M.2 devices, making it a critical component for diverse embedded and computing applications.
Integrating the 123A-85MA0 M.2 NGFF Horizontal SMT Connector requires careful attention to PCB layout and manufacturing processes. Its horizontal orientation means the M.2 module will lie parallel to the PCB, often requiring more board real estate in one dimension but allowing for lower overall profile designs. For SMT assembly, precise pick-and-place programming is essential to ensure accurate pad alignment. The reflow soldering profile must be optimized to achieve reliable solder joints without overheating the connector's plastic housing or gold flash contacts. Stencil design for solder paste deposition is crucial to prevent bridging on the fine-pitch 67 pins. Design engineers should also consider proper pad geometry and potential heat sinking for the connector and the connected M.2 module to maintain optimal thermal performance, leveraging the compact footprint of the 123A-85MA0 M.2 NGFF Horizontal SMT Connector.
The gold flash finish on the contacts of the 123A-85MA0 M.2 NGFF Horizontal SMT Connector is pivotal for ensuring long-term reliability and maintaining superior signal integrity. Gold is an excellent electrical conductor and, critically, it is highly resistant to oxidation and corrosion, unlike other common contact materials. This resistance prevents the formation of insulative layers over time, which could otherwise degrade connection quality, increase resistance, and lead to intermittent failures, especially in environments with temperature fluctuations or humidity. The gold flash ensures a stable, low-resistance contact interface, which is vital for high-speed data transfer protocols commonly used with M.2 modules. By mitigating environmental degradation, the 123A-85MA0 M.2 NGFF Horizontal SMT Connector provides a dependable and consistent electrical pathway, extending the operational lifespan of the entire system and reducing maintenance requirements.
The 0.5A current rating of the 123A-85MA0 M.2 NGFF Horizontal SMT Connector signifies its capacity to safely supply up to 500mA to connected M.2 modules. This rating is typically sufficient for a wide range of standard M.2 peripherals, including many wireless communication modules (Wi-Fi, Bluetooth, cellular modems), smaller form-factor SSDs, and various expansion cards that do not require high power. For instance, many M.2 Wi-Fi modules operate well within this current limit. However, high-performance NVMe SSDs, especially those designed for intensive workloads, might have peak current draws exceeding 0.5A. System designers must ensure the power requirements of their chosen M.2 module fall within this specification to prevent overheating, voltage drops, or potential damage to the 123A-85MA0 M.2 NGFF Horizontal SMT Connector or the module itself, ensuring stable and efficient operation.
The horizontal SMT design of the 123A-85MA0 M.2 NGFF Horizontal SMT Connector significantly influences both thermal management and space utilization. Horizontally mounted M.2 modules lie flat against the PCB, resulting in a lower overall system height profile, which is crucial for slim devices like laptops, ultrabooks, and compact embedded systems. This orientation can also facilitate better airflow over the module's surface if designed correctly, potentially aiding in heat dissipation compared to a vertically oriented module that might create a localized heat pocket. However, horizontal mounting requires a larger footprint on the PCB itself. In terms of thermal management, the proximity to the PCB allows for easier thermal coupling to the board or a dedicated heatsink, enhancing the cooling efficiency of the M.2 module connected to the 123A-85MA0 M.2 NGFF Horizontal SMT Connector, making it an excellent choice for space-constrained, low-profile designs.
The 123A-85MA0 M.2 NGFF Horizontal SMT Connector, by its very nature as an M.2 connector, is designed to support a variety of high-speed data transfer protocols. M.2 is a versatile interface that can carry PCIe (Peripheral Component Interconnect Express), SATA (Serial Advanced Technology Attachment), and USB 3.0 signals. When paired with compatible M.2 modules, this connector facilitates PCIe Gen3 x4 (up to 32 Gbps), PCIe Gen4 x4 (up to 64 Gbps), or even future Gen5 speeds, depending on the host controller and module capabilities. For SATA-based M.2 SSDs, it supports speeds up to 6 Gbps. The gold flash contacts and precise pin alignment of the 123A-85MA0 M.2 NGFF Horizontal SMT Connector are critical for maintaining signal integrity at these high frequencies, minimizing data loss and ensuring reliable, high-performance connectivity for demanding applications like NVMe SSDs and high-bandwidth wireless modules.
While specific environmental standards (like RoHS, REACH, UL, or MIL-spec) are not explicitly detailed for the 123A-85MA0 M.2 NGFF Horizontal SMT Connector in the provided description, as an essential component for modern electronic devices, it is inherently designed to operate reliably within typical commercial and industrial temperature ranges. The use of a gold flash finish indicates a focus on durability and corrosion resistance, suggesting suitability for environments where oxidation might be a concern. Manufacturers of such components generally adhere to industry standards for material safety (e.g., lead-free soldering processes for RoHS compliance) and often test for vibration, shock, and humidity resistance. For critical applications, it is always recommended to consult the manufacturer's full datasheet for the 123A-85MA0 M.2 NGFF Horizontal SMT Connector to obtain precise specifications regarding operating temperature, humidity limits, and any relevant certifications, ensuring it meets the specific environmental demands of the end product.
