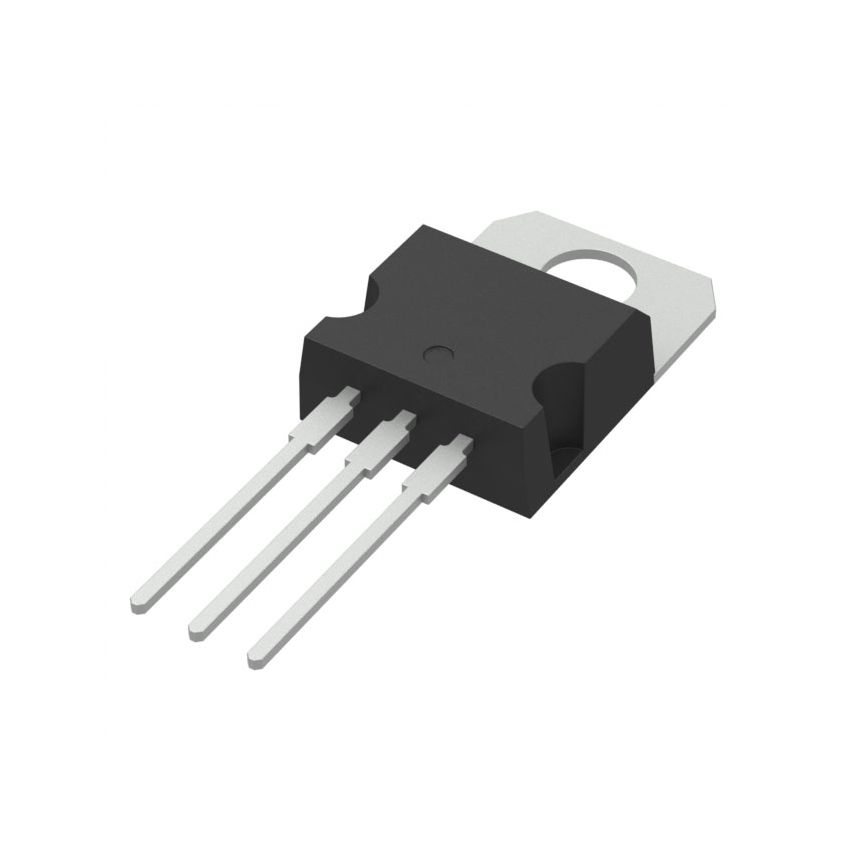

Diode: Schottky rectifying; THT; 30V; 12A; TO220AB; Ufmax: 730mV
Safe Checkout, Guaranteed
The 12CTQ030-SMC Diode is a high-performance Schottky rectifying diode designed for efficient and reliable power conversion. This THT (Through-Hole Technology) diode features a voltage rating of 30V and a current rating of 12A, making it suitable for a wide range of applications in power supplies, DC-DC converters, and other electronic circuits. Housed in a TO220AB package, this diode offers excellent thermal performance, allowing it to dissipate heat efficiently and maintain stable operation even under high current loads. Schottky diodes are known for their low forward voltage drop (Ufmax: 730mV), which minimizes power losses and improves overall efficiency. This makes the 12CTQ030-SMC diode an ideal choice for applications where energy efficiency is critical. The low forward voltage drop also reduces heat generation, which can improve the reliability and lifespan of the diode.
This diode is commonly used in switching power supplies, where its fast switching speed and low forward voltage drop contribute to improved efficiency and reduced EMI (Electromagnetic Interference). It is also suitable for use in solar power systems, where it can be used as a blocking diode to prevent reverse current flow. The 12CTQ030-SMC diode is manufactured to high-quality standards, ensuring reliable performance and long-term stability. Its robust construction and excellent thermal characteristics make it a dependable choice for demanding applications. Whether you're designing a new power supply or repairing an existing one, this Schottky diode will help you achieve optimal performance and efficiency. Its low forward voltage drop and fast switching speed make it a superior alternative to traditional silicon diodes in many applications.
Don't settle for inferior diodes that can waste energy and reduce the efficiency of your circuits. Invest in the 12CTQ030-SMC diode and experience the difference in performance and reliability. This diode is also suitable for use in automotive electronics, where its robust construction and wide operating temperature range make it a reliable choice for harsh environments. Protect your investment in electronic equipment by using high-quality components like the 12CTQ030-SMC diode. Order yours today and experience the difference in performance and reliability. Click here to add to cart and ensure the efficiency of your power circuits!
| Product Name | 12CTQ030-SMC Diode: Schottky rectifying; THT; 30V; 12A; TO220AB; Ufmax: 730mV |
|---|---|
| SKU | 12CTQ030 |
| Price | £3.75 |
| 12CTQ030-SMC Diode: Schottky rectifying; THT; 30V; 12A; TO220AB; Ufmax: 730mV Color | As per image |
| Category | Diodes |
| Brand | Nikko Electronics ltd |
| Product Code | 12CTQ030 |
| Availability | Yes |
Shipping cost is based on order value. Just add products to your cart and use the Shipping Calculator to see the shipping price. We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
Effective thermal management is crucial for the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode, especially when operating at or near its 12A current rating. The power dissipated by the diode, primarily due to its 730mV forward voltage drop, generates heat (P_diss = I_F * V_F). This heat must be efficiently transferred away from the junction to prevent exceeding the maximum junction temperature (Tjmax), which can lead to reduced reliability and premature failure. The TO-220AB package offers a reasonable thermal path, but a heatsink is almost always required for continuous high-current operation. Designers should calculate the required thermal resistance of the heatsink, considering the diode's junction-to-case thermal resistance, ambient temperature, and desired junction temperature. Using thermal interface material (TIM) like thermal paste or pads between the diode and heatsink is highly recommended to minimize thermal contact resistance and optimize heat transfer, ensuring the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode maintains stable and efficient operation.
The 30V reverse voltage rating (Vrrm) of the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode indicates the maximum repetitive peak reverse voltage it can withstand without damage. For applications operating at or near 30V, careful consideration of voltage transients is paramount. While Schottky diodes offer excellent switching performance, their reverse breakdown characteristics are typically sharp, meaning exceeding the Vrrm can lead to immediate failure. Unlike some PN junction diodes, Schottky diodes generally have limited avalanche capability. Therefore, in circuits prone to inductive spikes, load dumps, or other transient overvoltages, it is highly advisable to incorporate external transient voltage suppression (TVS) devices, such as TVS diodes or varistors, in parallel with the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode. This ensures that any voltage spikes are clamped below the diode's 30V rating, providing a robust and reliable design and preventing premature component failure.
The 730mV maximum forward voltage drop (Ufmax) of the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode is a significant advantage in power efficiency, particularly when compared to conventional silicon PN junction diodes, which typically have a forward voltage drop of 1.0V to 1.2V. This lower Vf directly translates to reduced power dissipation (P_loss = I_F * V_F) during conduction. For instance, at its rated 12A, a standard diode might dissipate over 12W, whereas the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode would dissipate approximately 8.76W (12A * 0.73V). This 25-30% reduction in power loss minimizes heat generation, simplifying thermal management requirements and allowing for smaller heatsinks or even fan-less designs in some cases. Ultimately, this leads to higher overall system efficiency, which is critical in power supplies, DC-DC converters, and other energy-sensitive applications where minimizing energy waste and heat is a priority.
The 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode is exceptionally well-suited for a variety of high-frequency switching applications primarily due to its fast switching characteristics and negligible reverse recovery time (trr). Unlike PN junction diodes that store charge during forward conduction and require a finite time to sweep this charge out during reverse bias, leading to reverse recovery current spikes and increased switching losses, Schottky diodes operate via majority carriers and exhibit almost no reverse recovery charge (Qrr). This makes the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode ideal for applications such as freewheeling diodes in buck converters, output rectification in switch-mode power supplies (SMPS), and synchronous rectification circuits where the switching frequency can be in the tens or hundreds of kilohertz. Its rapid turn-off capability minimizes switching losses, reduces electromagnetic interference (EMI), and enhances overall converter efficiency, especially in compact, high-power-density designs.
When paralleling multiple 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode units to achieve higher current capabilities, ensuring reliable current sharing is paramount to prevent thermal runaway and premature failure of individual diodes. The primary challenge arises from variations in forward voltage drop (Vf) among devices, even within the same production batch. A diode with a slightly lower Vf will conduct more current, heat up faster, and its Vf will decrease further, exacerbating the imbalance – a positive feedback loop leading to thermal runaway. To mitigate this, select diodes with tightly matched Vf characteristics. Implement individual heatsinking or ensure a common heatsink provides uniform thermal resistance to all paralleled diodes. Additionally, incorporating small current-balancing resistors in series with each 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode can help equalize current distribution. Careful PCB layout, ensuring symmetrical trace lengths and resistances, is also vital to minimize parasitic imbalances and promote stable, shared operation.
The through-hole (THT) TO-220AB package of the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode offers significant benefits for robust industrial applications and high-power prototyping. THT components provide superior mechanical stability compared to surface-mount (SMD) devices, making them less susceptible to damage from vibration, shock, or physical stress, which is common in harsh industrial environments. The robust leads of the TO-220AB package allow for secure soldering and provide excellent thermal contact to the PCB, further aiding heat dissipation. For prototyping, the THT format simplifies manual assembly and rework, making it easier to integrate the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode into breadboards or perfboards for testing and evaluation. Furthermore, the TO-220AB package's metal tab facilitates direct mounting to heatsinks, which is essential for managing the heat generated by its 12A current rating, ensuring reliable long-term performance in demanding power conversion circuits.
The reverse leakage current (IR) of the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode is an important characteristic, particularly for applications requiring high efficiency in low-power or standby modes. Schottky diodes, by their nature, generally exhibit higher reverse leakage currents compared to standard silicon PN junction diodes due to their lower barrier height. This leakage current is also highly temperature-dependent, increasing significantly with elevated junction temperatures. While negligible in high-current, active operation, this reverse current can become a factor in circuits where the diode is reverse-biased for extended periods, such as in battery-powered devices or systems with stringent standby power requirements. The continuous flow of even a small leakage current contributes to power loss, potentially reducing battery life or increasing quiescent power consumption. Designers should consult the datasheet's IR vs. Temperature graphs for the 12CTQ030-SMC 30V 12A TO-220AB Schottky Rectifier Diode and assess its impact on overall system efficiency in the specific low-power operating conditions.
