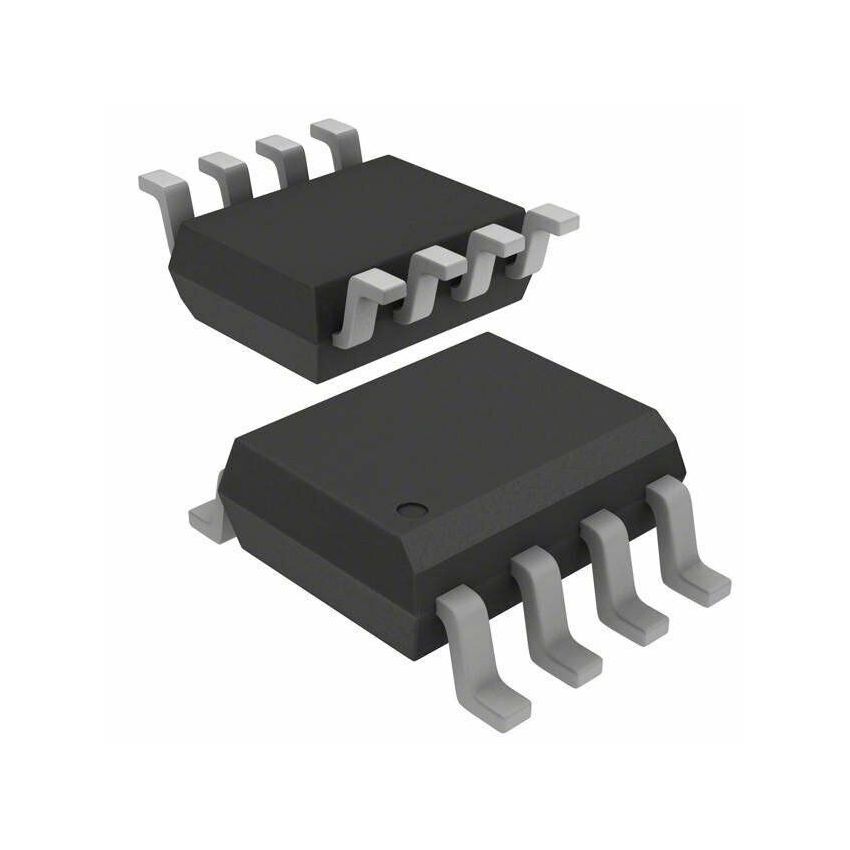

1EDI20N12AFXUMA1 IC IGBT DVR 1200V DSO8

The 1EDI20N12AFXUMA1 is a highly integrated single-channel IGBT (Insulated Gate Bipolar Transistor) driver IC, specifically designed for driving IGBTs with a blocking voltage of up to 1200V. This device comes in a compact DSO8 (Dual Small Outline 8-pin) package, making it ideal for space-constrained applications. The XUMA1 suffix indicates specific packaging and ordering information. This driver IC is engineered to provide efficient and reliable control of IGBTs in various applications, including motor drives, power supplies, inverters, and industrial automation systems. Its primary function is to amplify the control signal from a microcontroller or other logic device to a level suitable for driving the gate of an IGBT, enabling the IGBT to switch high voltages and currents with precision. The 1EDI20N12AFXUMA1 incorporates several key features to enhance performance and protect both the driver and the IGBT.

These features typically include undervoltage lockout (UVLO), which prevents the IGBT from turning on when the supply voltage is too low, thus avoiding potentially damaging operating conditions. Short-circuit protection is also a common feature, which detects overcurrent conditions and quickly shuts down the driver to protect the IGBT from damage. Furthermore, the driver often includes a Miller clamp, which helps to prevent unwanted turn-on of the IGBT due to the Miller capacitance effect, improving switching stability and reducing the risk of shoot-through. The DSO8 package offers a small footprint, making it suitable for surface-mount technology (SMT) assembly, which is essential in modern, compact electronic designs. The device is designed for optimal thermal performance within its package constraints, but careful consideration of thermal management is still necessary in high-power applications. The 1EDI20N12AFXUMA1 is typically used in applications where precise control of IGBTs is crucial.

In motor drives, it enables efficient and smooth control of motor speed and torque. In power supplies and inverters, it contributes to high efficiency and reliable operation. In industrial automation, it facilitates precise control of various actuators and power devices. When designing with the 1EDI20N12AFXUMA1, it's important to consider the specific requirements of the application, including the IGBT's gate charge, switching frequency, and operating voltage. Proper selection of external components, such as gate resistors and decoupling capacitors, is also crucial for optimal performance and reliability. Additionally, careful attention should be paid to PCB layout to minimize noise and ensure stable operation.

The 1EDI20N12AFXUMA1 is a versatile and reliable IGBT driver IC that offers a compact and efficient solution for driving high-voltage IGBTs. Its integrated protection features and small package size make it an excellent choice for a wide range of applications. Enhance the control and efficiency of your power electronics with the 1EDI20N12AFXUMA1. Order yours today and experience the difference in performance and reliability!
