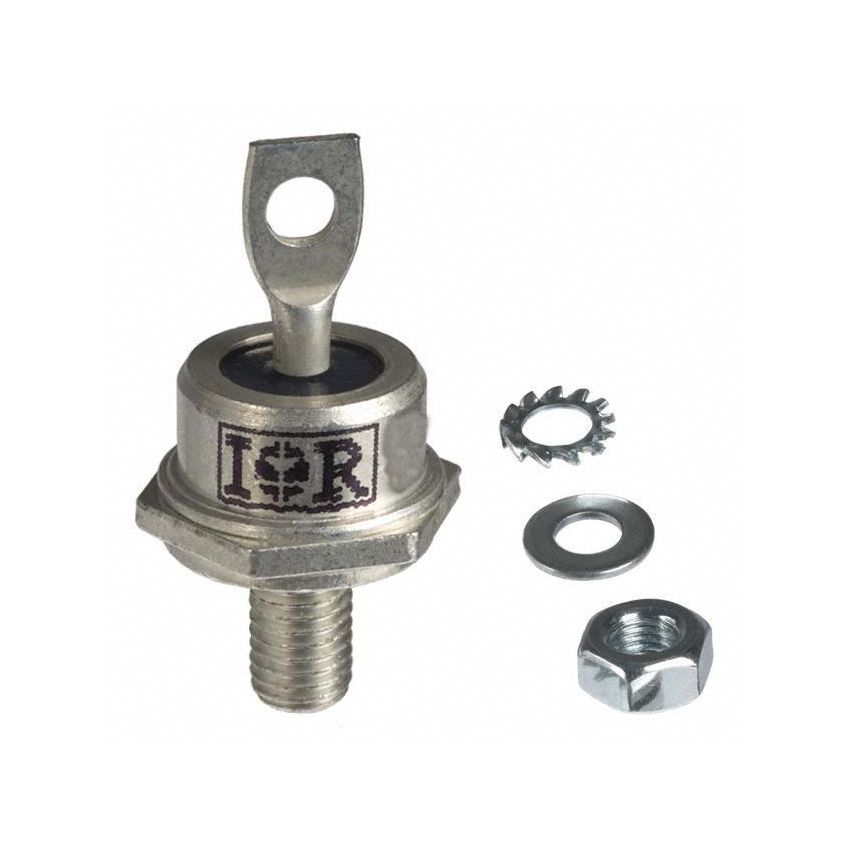

1N1188A DIODE GEN PURP 400V 35A DO203AB

The 1N1188A is a high-current, general-purpose silicon rectifier diode designed for a wide range of power rectification applications. Encased in the robust DO203AB (formerly DO-5) package, it offers excellent surge handling capabilities and is well-suited for demanding industrial and commercial environments. This diode is commonly used in power supplies, battery chargers, and AC-DC converters where reliable and efficient rectification is essential. Its ability to handle high voltages and currents makes it a dependable choice for heavy-duty applications.

This general-purpose diode features a peak reverse voltage (VRRM) of 400V and a forward current (IF) of 35A, making it capable of handling substantial power. The 1N1188A boasts a high surge current capability, allowing it to withstand transient current spikes without damage. Its low forward voltage drop minimizes power losses and improves efficiency. The DO203AB package provides excellent thermal conductivity, allowing the diode to dissipate heat effectively. The 1N1188A is designed for reliable operation in harsh environments, making it suitable for industrial applications.

The 1N1188A diode finds applications in a wide range of power electronics systems. In power supplies, it can be used as a rectifier to convert AC voltage to DC voltage. In battery chargers, it prevents reverse current flow and ensures efficient charging. AC-DC converters utilize the 1N1188A for reliable power conversion. Its robust characteristics and reliable performance make it suitable for both industrial and commercial applications. The 1N1188A is a versatile component that can be used in various circuit configurations to achieve efficient and reliable power rectification.

When using the 1N1188A, it's crucial to ensure proper heat sinking to prevent overheating, especially in high-current applications. The DO203AB package is designed for efficient heat dissipation, but additional heat sinking may be required depending on the operating conditions. The diode should be mounted securely to ensure good thermal contact with the heat sink. Consult the datasheet for detailed information on the 1N1188A's electrical characteristics, thermal performance, and application guidelines. Following these recommendations will ensure the reliable and efficient operation of the 1N1188A in your circuits.

Upgrade your power electronics designs with the 1N1188A diode and experience the benefits of its high voltage, high current, and robust construction. Whether you're building a power supply, a battery charger, or an AC-DC converter, the 1N1188A provides the performance and reliability you need. Its high surge current capability, low forward voltage drop, and excellent thermal performance make it an ideal choice for demanding applications. Order your 1N1188A diode today and take your power electronics projects to the next level!
