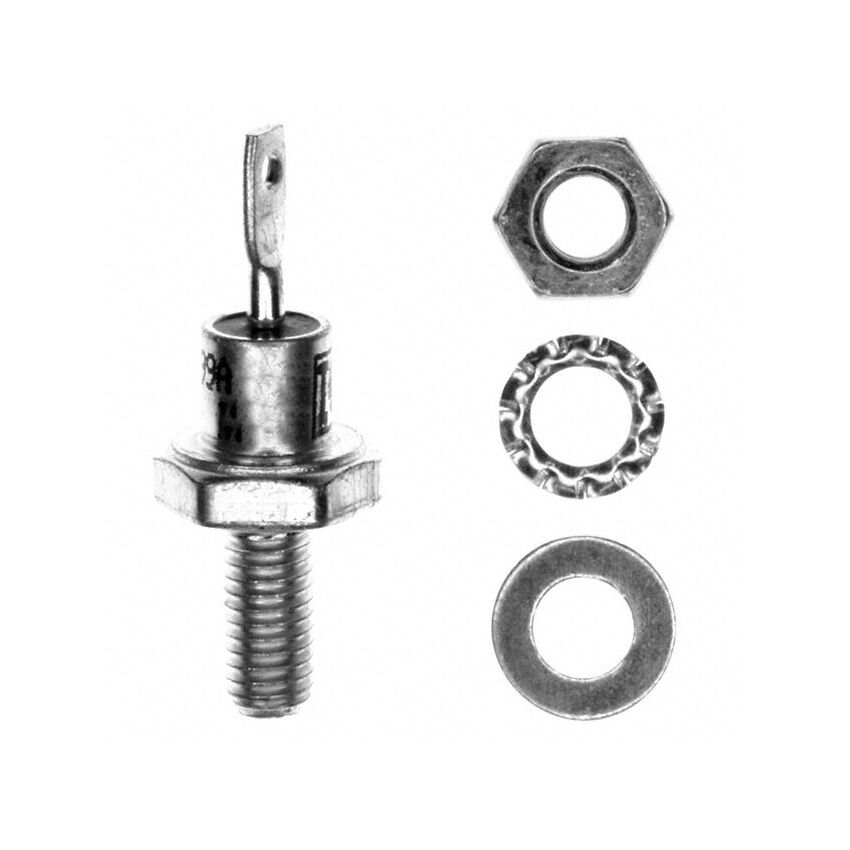

1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package

FAQs for Products

1. What are the primary advantages of using the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package in high-frequency switching power supplies?

   The 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package is specifically engineered for high-efficiency power conversion. Unlike standard PN-junction diodes, this Schottky diode utilizes a metal-to-semiconductor barrier, which results in a significantly lower forward voltage drop (typically around 0.5V to 0.6V at rated current). This lower voltage drop directly translates to reduced power dissipation and higher overall system efficiency, which is critical in modern DC-DC converters and switching regulators. Furthermore, the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package features near-zero reverse recovery time. Because Schottky diodes are majority carrier devices, they do not suffer from the charge storage effects seen in traditional silicon diodes. This allows the 1N6095 to switch at very high frequencies with minimal switching losses and significantly reduced electromagnetic interference (EMI). For engineers designing high-density power modules, the combination of low conduction losses and high-speed switching makes this component an essential choice for minimizing heat and maximizing throughput in low-voltage, high-current applications.

2. How should the thermal management be handled for the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package when operating at its full 25A rating?

   Effective thermal management is vital when operating the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package at or near its maximum 25A current limit. The DO-4 package is a stud-mount design, which is specifically intended to facilitate superior heat transfer to a chassis or a dedicated heatsink. When installing the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package, it is crucial to ensure that the mounting surface is clean, flat, and free of burrs. A thin layer of high-quality thermal grease (thermal interface material) should be applied to the base of the stud to fill microscopic air gaps and minimize thermal resistance. The diode must be secured using the appropriate torque specifications to ensure consistent contact pressure without stripping the threads. Since the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package can generate substantial heat at 25A, the heatsink must be sized according to the worst-case ambient temperature and the diode's thermal resistance (RthJC). Proper cooling ensures the junction temperature remains within safe limits, preventing thermal runaway and extending the component's operational lifespan in demanding environments.

3. Can the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package be used in parallel to handle higher current loads?

   While it is possible to parallel multiple 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package units to increase current capacity, it requires careful circuit design. Schottky diodes possess a negative temperature coefficient for their forward voltage (Vf); as the diode heats up, its forward voltage drop decreases. If one 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package carries slightly more current than its parallel counterpart, it will get hotter, its Vf will drop further, and it will draw even more current. This phenomenon can lead to thermal runaway and the eventual failure of the diode. To mitigate this when using the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package in parallel, engineers often use small ballast resistors in series with each diode or ensure that the diodes are thermally coupled on the same heatsink to maintain temperature parity. However, for most high-reliability applications, it is generally recommended to select a single diode with a higher current rating rather than paralleling multiple 1N6095 units, unless strict current-sharing measures are implemented.

4. What are the reverse leakage current characteristics of the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package at elevated temperatures?

   A key consideration when specifying the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package is its reverse leakage current (Ir). Schottky diodes inherently exhibit higher reverse leakage compared to standard silicon rectifiers, and this leakage is highly dependent on temperature. As the operating temperature of the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package increases, the reverse leakage current rises exponentially. At a 30V reverse bias, the leakage might be negligible at room temperature but could become significant as the junction temperature approaches its maximum rating. This is a critical factor in low-power or battery-operated circuits where standby current is a concern. Designers must ensure that the total power dissipation—which includes both forward conduction losses and reverse leakage losses—does not exceed the thermal capabilities of the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package and its cooling system. Monitoring the leakage current at the maximum expected operating temperature is essential to avoid unexpected circuit behavior or thermal instability in high-temperature industrial environments.

5. Is the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package suitable for use as a freewheeling diode in inductive motor control?

   Yes, the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package is an excellent choice for freewheeling (flyback) applications in motor control and inductive load switching. When an inductive load is switched off, a high-voltage spike is generated; the 1N6095 provides a safe path for this current to dissipate, protecting sensitive switching transistors like MOSFETs or IGBTs. The 25A current rating of the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package allows it to handle the significant surge currents often encountered in motor applications. Furthermore, its ultra-fast switching speed ensures that the diode turns on almost instantaneously when the switch opens, clamping the voltage spike effectively. However, users must ensure the 30V reverse voltage rating of the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package is sufficient for the bus voltage of the system. For 12V or 24V systems, this diode provides a robust solution, but for higher voltage rails, a diode with a higher Vrrm would be required to prevent reverse breakdown.

6. What are the mounting considerations for the DO-4 metal case of the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package regarding electrical isolation?

   When integrating the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package into a system, it is important to note that the DO-4 package is a metal-can stud-mount type where the stud is typically connected to one of the electrodes (usually the cathode, though this should be verified via the specific manufacturer datasheet). This means the heatsink or chassis the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package is mounted to will become electrically live if it is not isolated. If the application requires the heatsink to be grounded or shared with other components at different potentials, an insulating kit consisting of a mica or silicone washer and an insulating bushing for the mounting hole must be used. While these insulators provide the necessary dielectric barrier, they also increase the thermal resistance between the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package and the heatsink. Designers must factor in this additional thermal impedance when calculating the cooling requirements for the 25A load to ensure the diode remains within its safe operating temperature range.

7. How does the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package compare to a standard 25A silicon diode in terms of power loss?

   The 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package offers a significant reduction in power loss compared to a standard silicon PN-junction diode of the same rating. A standard silicon diode typically has a forward voltage drop (Vf) of approximately 1.1V at 25A, resulting in a power loss of about 27.5 Watts ($P = I \times V$). In contrast, the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package features a much lower Vf, often around 0.55V at the same current, which reduces the power loss to approximately 13.75 Watts. This 50% reduction in conduction loss is a major advantage for the 1N6095 Schottky Barrier Rectifier Diode, 30V, 25A, DO-4 Package, as it reduces the size and weight of the required heatsinking and improves the energy efficiency of the power supply. Additionally, the absence of reverse recovery losses in the 1N6095 further widens the efficiency gap in high-frequency applications, making it the superior choice for low-voltage rectification where thermal efficiency and power density are the primary design constraints.
