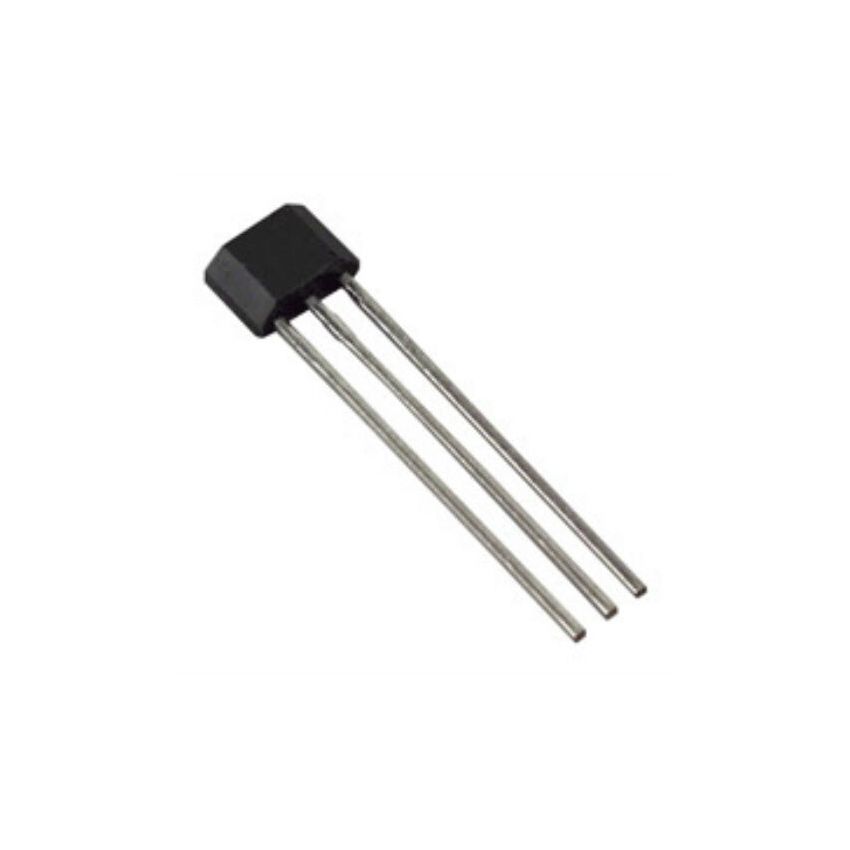

2SA1267GR +2SC3199GR TRANSISTOR TO-92S A1267GR+C3199GR

The 2SA1267GR and 2SC3199GR transistor pair represents a complementary solution for audio amplification and general-purpose switching applications. Housed in the ubiquitous TO-92S package, these transistors are designed to work in tandem, providing a balanced and efficient performance in push-pull amplifier configurations and other complementary circuits. The 2SA1267GR is a PNP transistor, while the 2SC3199GR is an NPN transistor, making them ideally suited for applications requiring both positive and negative signal handling. Their compact size and ease of use make them a popular choice among electronics hobbyists, students, and professionals alike.

The key features of the 2SA1267GR and 2SC3199GR transistors include their high gain, low noise, and excellent linearity. These characteristics are essential for achieving high-fidelity audio amplification and precise signal control. The transistors offer a collector-emitter voltage of 50V and a collector current of 150mA, making them suitable for a wide range of low-power applications. Their fast switching speed and low saturation voltage contribute to efficient circuit operation, minimizing power loss and maximizing performance. The complementary nature of these transistors ensures that they can handle both positive and negative signals with equal efficiency, resulting in a balanced and symmetrical output.

The 2SA1267GR and 2SC3199GR transistor pair finds applications in various electronic circuits, including audio amplifiers, preamplifiers, headphone amplifiers, and general-purpose switching circuits. In audio applications, they can be used to create high-quality push-pull amplifiers that deliver clear and accurate sound reproduction. In switching applications, they can be used to control relays, solenoids, and other devices with high efficiency and reliability. Their versatility and complementary nature make them a valuable addition to any electronics toolkit, providing a reliable solution for a wide range of circuit design needs.

When incorporating the 2SA1267GR and 2SC3199GR transistors into your projects, it is crucial to consider their key specifications and operating conditions to ensure optimal performance. Always refer to the datasheets for detailed information on voltage and current ratings, thermal characteristics, and switching speeds. Proper biasing and circuit design are essential for achieving the desired performance characteristics. Use appropriate heat sinks if necessary to prevent overheating, especially when operating at high power levels. By understanding their capabilities and limitations, you can effectively utilize these transistors to create innovative and efficient electronic solutions.

Enhance your audio and general-purpose circuits with the reliable and efficient 2SA1267GR and 2SC3199GR transistor pair. Their complementary nature, high gain, and low noise make them an ideal choice for a wide range of applications. Whether you're designing audio amplifiers, switching circuits, or other electronic devices, these transistors provide a balanced and efficient solution. Order your 2SA1267GR and 2SC3199GR transistor pair today and experience the difference in your electronic creations. Don't miss out on this opportunity to elevate your projects with a high-quality, versatile transistor pair.
