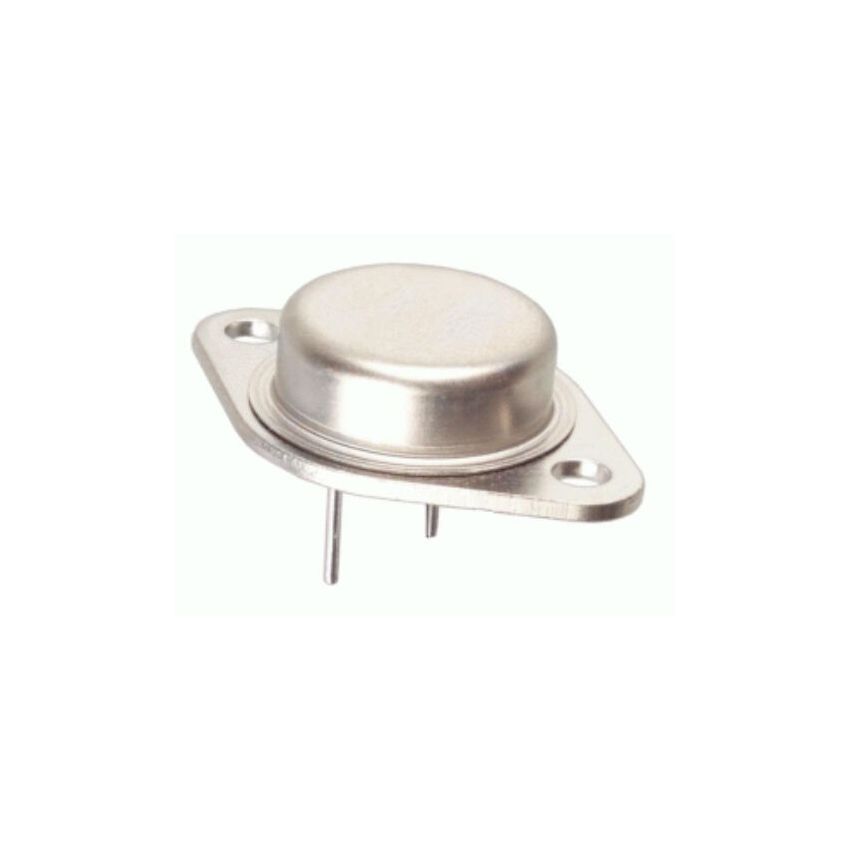

2SA757 TRANSISTOR TO-3 A757

The 2SA757 is a silicon PNP power transistor designed for audio amplification and general-purpose switching applications. Encased in a robust TO-3 package, this transistor is capable of handling significant power levels and is well-suited for demanding applications. Its key features include high collector current capability, low saturation voltage, and excellent linearity. These characteristics make it ideal for use in audio power amplifiers, power supplies, and motor control circuits. The TO-3 package provides excellent thermal conductivity, allowing for efficient heat dissipation and stable operation even under high power conditions. This transistor is commonly used in audio power amplifiers, where it serves as the output stage to drive loudspeakers.

Its high current gain and low distortion characteristics ensure accurate reproduction of audio signals. The 2SA757 is also suitable for use in switching regulators and DC-DC converters, where it can efficiently switch high currents with minimal power loss. The key specifications of the 2SA757 include a collector-emitter voltage (Vceo) of -80V, a collector current (Ic) of -10A, and a power dissipation (Pc) of 80W. These parameters make it well-suited for handling moderate to high power levels in a variety of applications. When designing with the 2SA757, it's important to consider proper biasing techniques to ensure optimal performance and prevent thermal runaway. The transistor's characteristics can be influenced by temperature and operating conditions, so careful attention should be paid to thermal management and circuit stability.

The 2SA757 is a reliable and cost-effective solution for power amplification and switching applications. Its proven performance and wide availability make it a valuable component in any electronics engineer's or hobbyist's toolkit. Whether you're building an audio amplifier, a power supply, or a motor control circuit, the 2SA757 transistor offers the performance and reliability you need. Upgrade your power electronics projects with the 2SA757 transistor today and experience the difference in performance and efficiency. Order now to take advantage of this versatile and high-quality component.
