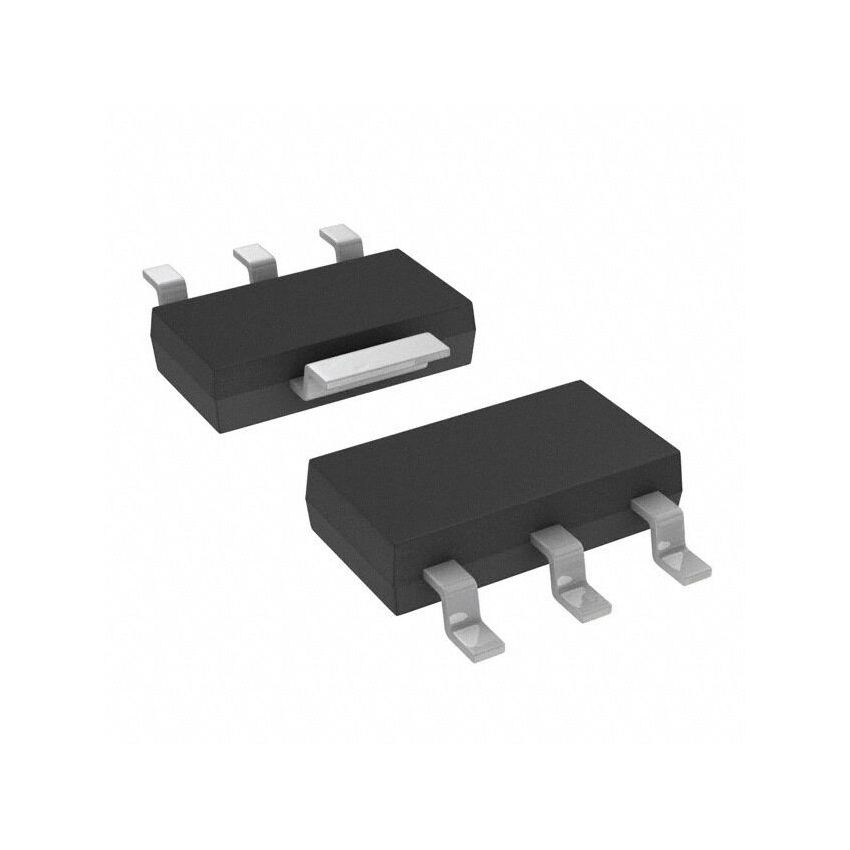

2SB1188 PNP Epitaxial Planar Power Transistor

FAQs for Products

1. What are the primary thermal management considerations when integrating the 2SB1188 PNP Epitaxial Planar Power Transistor into high-current designs?

   When utilizing the 2SB1188 PNP Epitaxial Planar Power Transistor in circuits approaching its maximum collector current of -2A, thermal management becomes a critical factor for long-term reliability. The 2SB1188 is typically housed in a medium-power surface-mount package like the SOT-89, which relies heavily on the PCB copper traces for heat dissipation. To ensure the 2SB1188 PNP Epitaxial Planar Power Transistor operates within its safe junction temperature range, designers must provide an adequate thermal pad connected to the collector terminal. Without proper heat sinking, the power dissipation (Pc) limit—often around 0.5W to 2W depending on mounting conditions—can be easily exceeded, leading to thermal runaway or degraded performance. It is recommended to use 2oz copper and maximize the surface area of the collector plane to lower the thermal resistance from junction to ambient. For professional applications, conducting a thermal simulation or using infrared thermography during prototyping is essential to verify that the 2SB1188 PNP Epitaxial Planar Power Transistor remains stable under worst-case ambient temperatures and maximum load conditions.

2. Which NPN transistor is recommended as a complementary pair for the 2SB1188 PNP Epitaxial Planar Power Transistor in push-pull configurations?

   For engineers designing balanced amplifier stages or H-bridge motor controllers, the 2SD1766 is the designated NPN complementary pair for the 2SB1188 PNP Epitaxial Planar Power Transistor. Using a matched complementary pair is vital because it ensures that both the positive and negative halves of the signal or drive circuit exhibit symmetrical gain (hFE) and switching characteristics. When the 2SB1188 PNP Epitaxial Planar Power Transistor is paired with the 2SD1766, the circuit achieves significantly lower total harmonic distortion (THD) in audio applications and more predictable timing in switching applications. It is important to match the gain rank (such as Q, R, or S) of both the 2SB1188 PNP Epitaxial Planar Power Transistor and its NPN counterpart to maintain circuit balance. This synergy between the two components allows for efficient power delivery and reduces the complexity of bias compensation networks, making the 2SB1188 PNP Epitaxial Planar Power Transistor an industry standard for medium-power complementary designs where precision and reliability are paramount.

3. How does the low collector-emitter saturation voltage of the 2SB1188 PNP Epitaxial Planar Power Transistor benefit battery-powered applications?

   The 2SB1188 PNP Epitaxial Planar Power Transistor is highly regarded for its exceptionally low collector-emitter saturation voltage, typically denoted as VCE(sat). In battery-powered or portable electronics, minimizing this voltage drop is crucial because any voltage lost across the transistor is converted into wasted heat and reduces the overall efficiency of the system. By using the 2SB1188 PNP Epitaxial Planar Power Transistor, designers can ensure that a larger portion of the battery voltage reaches the load, extending the operational life of the device. This low VCE(sat) characteristic also means the 2SB1188 PNP Epitaxial Planar Power Transistor remains cooler during high-current switching tasks compared to standard transistors. Whether used in a power management module or as a high-side switch for peripherals, the efficient conduction of the 2SB1188 PNP Epitaxial Planar Power Transistor makes it an ideal choice for modern green-energy designs and compact consumer electronics where every milliwatt of power savings counts toward a better user experience and longer hardware longevity.

4. What are the specific DC current gain (hFE) characteristics of the 2SB1188 PNP Epitaxial Planar Power Transistor and how do they impact driver circuit design?

   The 2SB1188 PNP Epitaxial Planar Power Transistor features a high and relatively linear DC current gain (hFE), which is typically categorized into different ranks (such as P, Q, or R) to suit specific design requirements. A high hFE ensures that the 2SB1188 PNP Epitaxial Planar Power Transistor can be fully driven into saturation with a relatively small base current, allowing it to be interfaced directly with microcontrollers or low-power logic gates through a simple current-limiting resistor. This high sensitivity is particularly useful in relay driving or LED strip control where the driving source has limited current sourcing capability. Furthermore, the 2SB1188 PNP Epitaxial Planar Power Transistor maintains consistent gain across a wide range of collector currents, which prevents non-linearities in signal amplification. When designing with the 2SB1188 PNP Epitaxial Planar Power Transistor, it is important to consult the datasheet for the specific gain binning to ensure the base drive circuit is optimized for the worst-case minimum hFE, ensuring the transistor switches fully and efficiently under all operating loads.

5. Can the 2SB1188 PNP Epitaxial Planar Power Transistor handle inductive loads such as relays and small DC motors safely?

   Yes, the 2SB1188 PNP Epitaxial Planar Power Transistor is frequently used to drive inductive loads like relays, solenoids, and small DC motors due to its robust -2A collector current rating. However, when switching inductive loads, the 2SB1188 PNP Epitaxial Planar Power Transistor is susceptible to high-voltage spikes caused by back-EMF when the transistor turns off. Since the 2SB1188 PNP Epitaxial Planar Power Transistor has a maximum collector-emitter voltage (VCEO) of approximately -32V, these inductive spikes can easily exceed the breakdown voltage and damage the component. To protect the 2SB1188 PNP Epitaxial Planar Power Transistor, it is mandatory to place a flyback diode (such as a 1N4007 or a Schottky diode) in parallel with the inductive load. This diode provides a safe path for the inductive current to dissipate, preventing the voltage at the collector of the 2SB1188 PNP Epitaxial Planar Power Transistor from rising above the supply voltage. With this standard protection, the 2SB1188 PNP Epitaxial Planar Power Transistor offers a highly reliable and compact solution for industrial automation and robotics control.

6. What are the advantages of the epitaxial planar construction used in the 2SB1188 PNP Epitaxial Planar Power Transistor?

   The epitaxial planar technology used in the manufacturing of the 2SB1188 PNP Epitaxial Planar Power Transistor provides several distinct advantages over older diffused-junction transistors. This process allows for precise control over the dopant profiles, resulting in a 2SB1188 PNP Epitaxial Planar Power Transistor with very low leakage currents and high breakdown voltage stability. Additionally, the epitaxial structure contributes to a lower parasitic capacitance, which improves the frequency response and switching speed of the 2SB1188 PNP Epitaxial Planar Power Transistor. This makes the component suitable not just for DC switching, but also for high-fidelity audio pre-amplifiers and high-speed signal processing. The planar passivated surface also ensures that the 2SB1188 PNP Epitaxial Planar Power Transistor is highly resistant to environmental degradation and exhibits excellent long-term parameter stability. For professional electronics manufacturers, the 2SB1188 PNP Epitaxial Planar Power Transistor represents a mature, high-yield technology that offers consistent performance across different production batches, reducing the need for extensive circuit tuning or component binning.

7. What factors should be considered when replacing an older transistor with the 2SB1188 PNP Epitaxial Planar Power Transistor in an existing PCB layout?

   When performing a repair or an upgrade using the 2SB1188 PNP Epitaxial Planar Power Transistor, the first consideration must be the physical footprint and pinout compatibility. The 2SB1188 PNP Epitaxial Planar Power Transistor is commonly found in the SOT-89 package, which has a specific pin configuration (typically Base, Collector, Emitter from left to right, with the large tab also being the Collector). If the original part was in a different package like a TO-92 or TO-126, a direct drop-in may not be possible without PCB modifications. Secondly, ensure that the -32V VCEO and -2A IC ratings of the 2SB1188 PNP Epitaxial Planar Power Transistor meet or exceed the specifications of the original component. It is also vital to check the hFE (gain) rank; if the original circuit relied on a specific gain range for biasing, using a 2SB1188 PNP Epitaxial Planar Power Transistor with a significantly different gain could shift the operating point of an amplifier or cause a switch to not saturate fully. Finally, verify that the 2SB1188 PNP Epitaxial Planar Power Transistor can handle the thermal load of the existing design, as SMD components often have different thermal profiles than through-hole equivalents.
