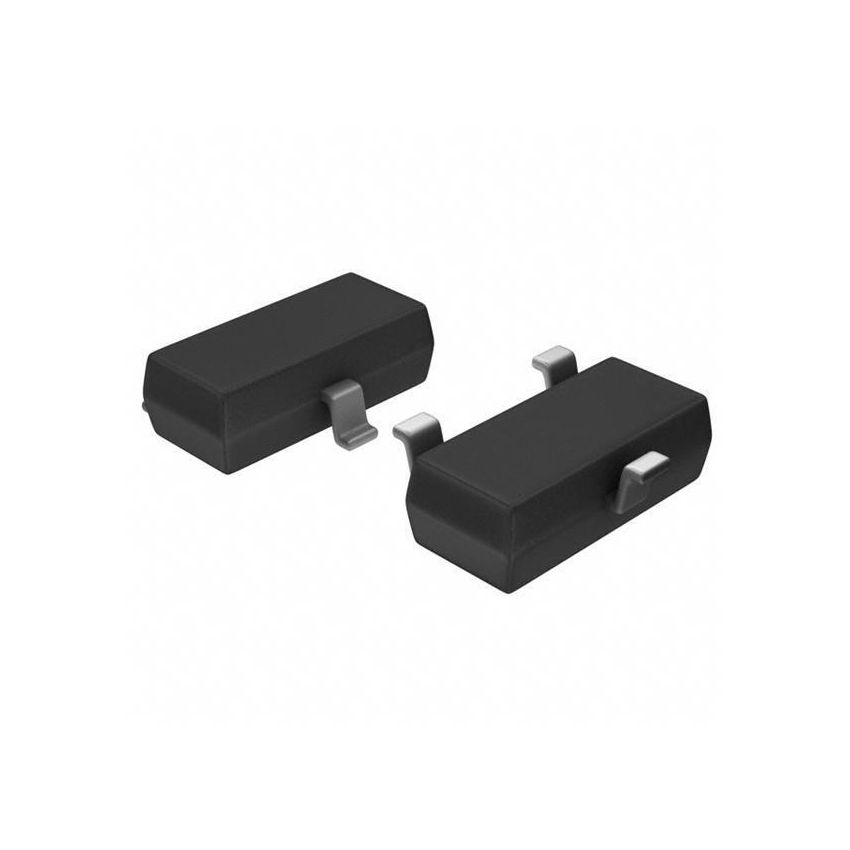

2SC-2713 TRANS NPN 120V 0.1A S-MINI C2713 2SC2713 (LOT OF 2)

The 2SC2713 is a versatile NPN silicon transistor designed for general-purpose amplification and switching applications. Housed in a compact S-Mini package, this transistor offers excellent performance in space-constrained environments. This lot includes two 2SC2713 transistors, providing a convenient and cost-effective solution for prototyping, repairs, and small-scale production. The 2SC2713's well-defined specifications and readily available datasheets simplify integration into various electronic circuits. Its 120V collector-emitter voltage and 0.1A collector current ratings make it suitable for a wide range of low-power applications. The S-Mini package allows for high-density board layouts, optimizing space utilization in compact electronic devices.

This NPN transistor features a high collector-emitter voltage (VCEO) rating of 120V, enabling it to handle substantial voltage swings without breakdown. Its collector current (IC) capability of 0.1A allows it to drive small loads with ease. The 2SC2713's high gain (hFE) ensures efficient amplification of signals, minimizing the need for complex biasing networks. Its low saturation voltage (VCE(sat)) reduces power dissipation in switching applications, improving overall circuit efficiency. The S-Mini package provides excellent thermal dissipation for its size, preventing overheating and ensuring reliable operation.

The 2SC2713 finds widespread use in small signal amplifiers, switching circuits, and general-purpose control applications. In audio amplifiers, it can be used in preamplifier stages to boost weak signals. In switching circuits, it can control small loads such as LEDs and relays. Its compact size and low power consumption make it suitable for portable electronic devices, such as mobile phones and handheld gadgets. The 2SC2713's versatility extends to various other electronic applications, including sensor circuits, signal processing, and logic gates.

The 2SC2713's ease of use and compact size make it a popular choice among hobbyists and engineers alike. Its readily available datasheets provide comprehensive information on its electrical characteristics, simplifying circuit design and troubleshooting. The S-Mini package is easily soldered onto PCBs using standard techniques. The transistor's wide operating temperature range ensures reliable operation in diverse environments. Its proven track record of reliability and performance makes it a dependable choice for various low-power applications.

Enhance your electronic projects with the 2SC2713 NPN transistor and experience the benefits of reliable amplification and switching in a compact package. Its high voltage rating, low current rating, and small size make it an ideal choice for a wide range of applications. Order your lot of two 2SC2713 transistors today and take your projects to the next level. Don't miss out on this essential component for building efficient and compact electronic systems. Invest in quality, invest in the 2SC2713.
