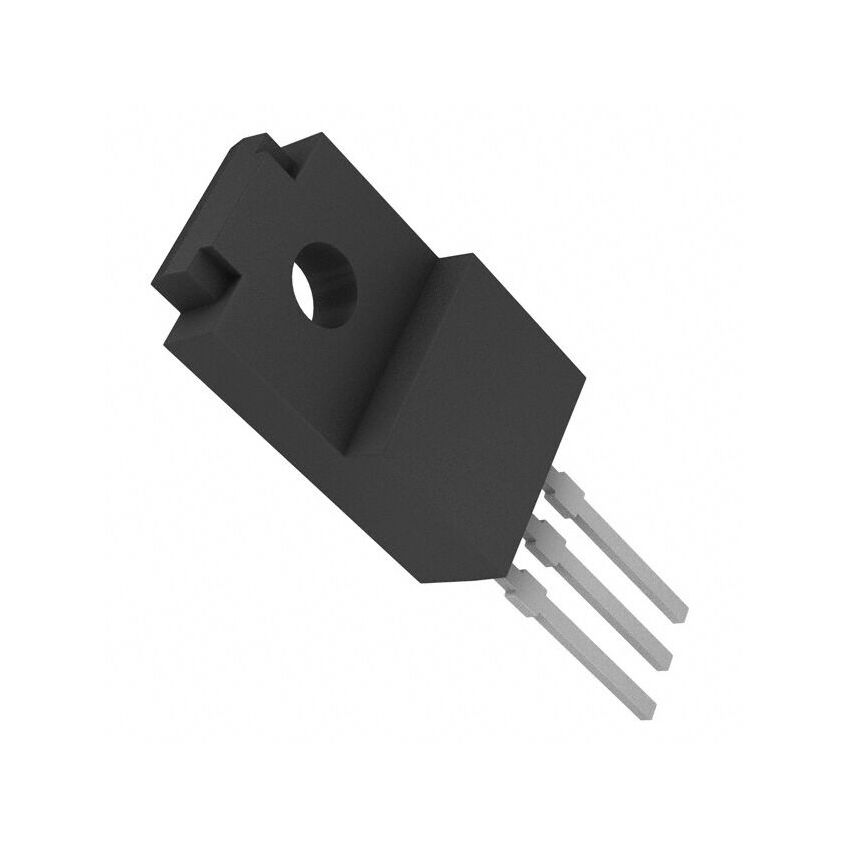

2SD1276Q TRANSISTOR TO-220FP D1276Q

The 2SD1276Q is a high-performance NPN transistor designed for a wide range of power switching and amplification applications. Encased in a TO-220FP (Full Pack) package, it offers excellent thermal performance and electrical isolation, making it suitable for demanding industrial and commercial environments. The “D1276Q” marking ensures traceability and quality control. Its robust construction ensures efficient heat dissipation, preventing thermal runaway and ensuring stable operation even under high-power conditions. The 2SD1276Q is a versatile component that can handle significant current and voltage levels, making it a popular choice for designers seeking a reliable and high-performance transistor.

This transistor boasts impressive specifications, including a collector-emitter voltage (VCEO) of up to 60V, a collector current (IC) of up to 7A, and a power dissipation (PD) of up to 20W. These characteristics make it well-suited for applications requiring substantial power handling capabilities. The 2SD1276Q also features a high gain (hFE), typically around 1000, which allows for efficient amplification of signals. Its fast switching speeds further enhance its suitability for switching regulator applications, where rapid transitions are crucial for optimal performance. The TO-220FP package ensures easy mounting and effective heat sinking with full isolation.

The 2SD1276Q transistor finds applications in various power supply designs, where it serves as a crucial component in regulating voltage and current. It is also commonly used in audio amplifiers to boost the power of audio signals, delivering clear and powerful sound. In motor control circuits, the 2SD1276Q can efficiently control the speed and torque of motors, making it suitable for industrial automation and robotics. Its high power handling capability and robust design make it a reliable choice for these demanding applications. Furthermore, its use extends to inverters and UPS systems, and LED lighting drivers.

When selecting the 2SD1276Q, consider its key parameters such as VCEO, IC, and PD to ensure it meets the specific requirements of your application. Proper heat sinking is essential to maintain its performance and longevity, especially when operating at high power levels. Always refer to the datasheet for detailed specifications and application guidelines. The 2SD1276Q offers a cost-effective solution for high-power amplification and switching needs. Its widespread availability and proven reliability make it a popular choice among engineers and hobbyists alike. The full pack package simplifies isolation requirements.

Ready to enhance your power circuits with a reliable and high-performance transistor? The 2SD1276Q is your ideal choice. With its robust TO-220FP package, high current and voltage ratings, and excellent thermal performance, it's perfect for power amplifiers, switching regulators, and motor control applications. Don't compromise on quality and performance. Order your 2SD1276Q transistor today and experience the difference in your electronic projects. Click here to add to cart and power up your designs!
