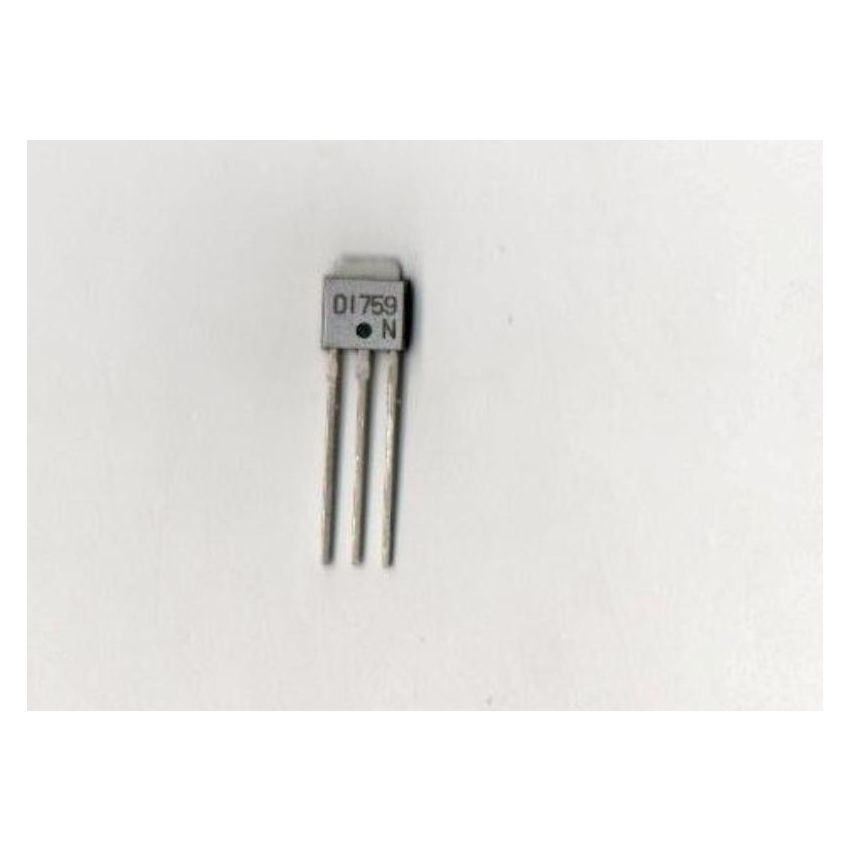

2SD1759 Rohm Semiconductor TO-92S D1759N (Lotto Da 5)

The 2SD1759 is a versatile NPN transistor manufactured by Rohm Semiconductor, designed for a wide range of general-purpose applications. This lot includes five 2SD1759 transistors, providing ample components for multiple projects or replacements. Housed in the compact TO-92S package, this transistor is easy to integrate into various circuit designs. Its small size and reliable performance make it a popular choice for both hobbyists and professional engineers. The 2SD1759 is commonly used in signal amplification, switching circuits, and small-signal applications where space is a constraint.

Key specifications of the 2SD1759 include a collector-emitter voltage (VCEO) of up to 50V and a continuous collector current (IC) of up to 150mA. The transistor features a high current gain (hFE), typically ranging from 200 to 400, which allows for efficient amplification of small signals. This makes it ideal for use in preamplifiers, audio amplifiers, and sensor circuits. The TO-92S package is designed for easy through-hole mounting, simplifying the assembly process. The transistor also exhibits low noise characteristics, ensuring clean and accurate signal amplification.

The 2SD1759 transistor finds applications in various electronic circuits, including audio amplifiers, signal processing circuits, and switching applications. In audio amplifiers, it can be used as a preamplifier to boost weak audio signals. In signal processing circuits, it can amplify and condition signals from sensors or other input devices. In switching applications, it can control small loads such as LEDs or relays. Its high gain and low noise characteristics make it suitable for use in sensitive measurement equipment and instrumentation. The 2SD1759 is also used in consumer electronics, such as radios, televisions, and remote controls.

When using the 2SD1759, it's important to ensure proper biasing to achieve optimal performance. The transistor should be operated within its specified voltage and current limits to prevent damage. A series resistor should be used to limit the base current and protect the transistor from overcurrent conditions. Always refer to the datasheet for detailed specifications and application guidelines. With its compact size, reliable performance, and versatile capabilities, the 2SD1759 is a valuable component for any electronics project requiring small-signal amplification or switching.

Enhance your electronic projects with the reliable and versatile 2SD1759 transistor from Rohm Semiconductor. This lot of five ensures you have the components you need for your next innovation. Whether you're building an audio amplifier, signal processing circuit, or switching application, the 2SD1759 delivers the performance and reliability you demand. Don't miss out – add this essential component to your toolkit today and experience the difference! Order now and take your projects to the next level!
