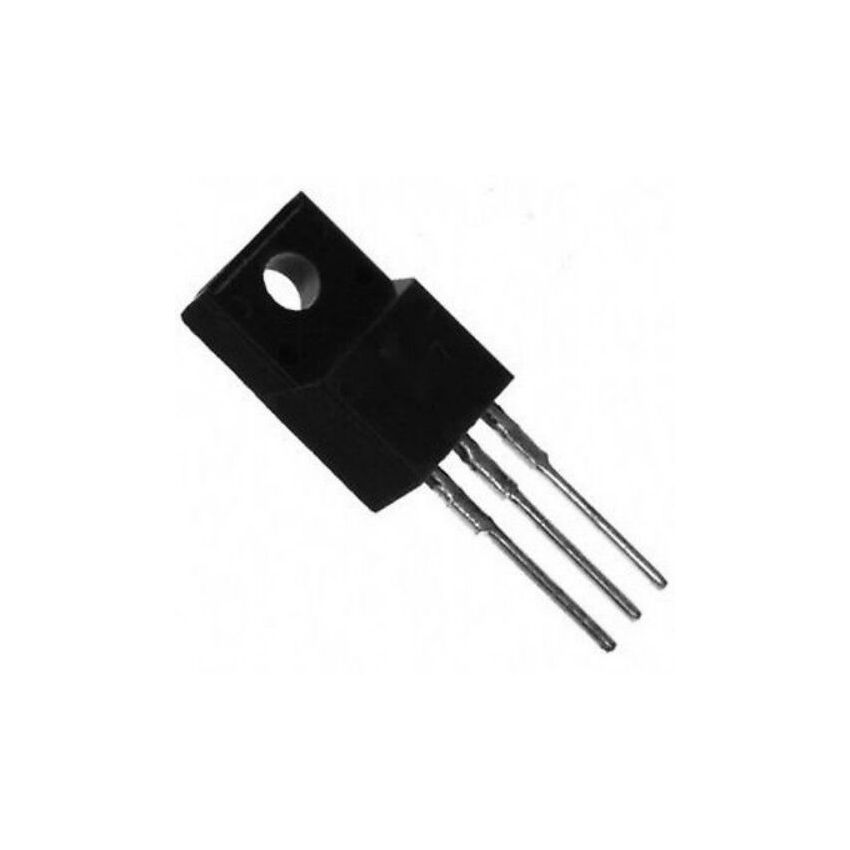

2SJ545 HITACHI TRANSISTOR TO-220F

The 2SJ545 is a high-performance P-channel MOSFET transistor manufactured by Hitachi, designed for a wide array of power control and amplification applications. This transistor is housed in a TO-220F package, which provides excellent thermal isolation, making it ideal for applications where heat dissipation is a critical concern. The 'F' designation in the package name indicates full isolation, meaning the mounting tab is electrically isolated from the transistor's internal circuitry. This feature simplifies heatsinking and allows for direct mounting to a chassis without the need for insulating washers or bushings. The 2SJ545 is characterized by its low on-resistance (RDS(on)), which minimizes power loss and heat generation during operation. This is particularly important in high-current applications where efficiency is paramount.

Its high drain current capability enables it to handle substantial loads, making it suitable for applications such as power supplies, motor drivers, and audio amplifiers. The TO-220F package ensures efficient heat transfer, allowing the 2SJ545 to operate reliably even under demanding conditions. This transistor is designed for both linear and switching applications, offering versatility in circuit design. Its fast switching speed makes it suitable for high-frequency applications, while its robust construction ensures reliable operation in harsh environments. Whether you are designing a power supply, a motor control system, or an audio amplifier, the 2SJ545 provides the performance and reliability you need. Its isolated package simplifies mounting and enhances safety, making it a popular choice for both beginners and experienced engineers.

Unlock the potential of your next project with the 2SJ545. Order yours today and experience the power of Hitachi MOSFET technology!
