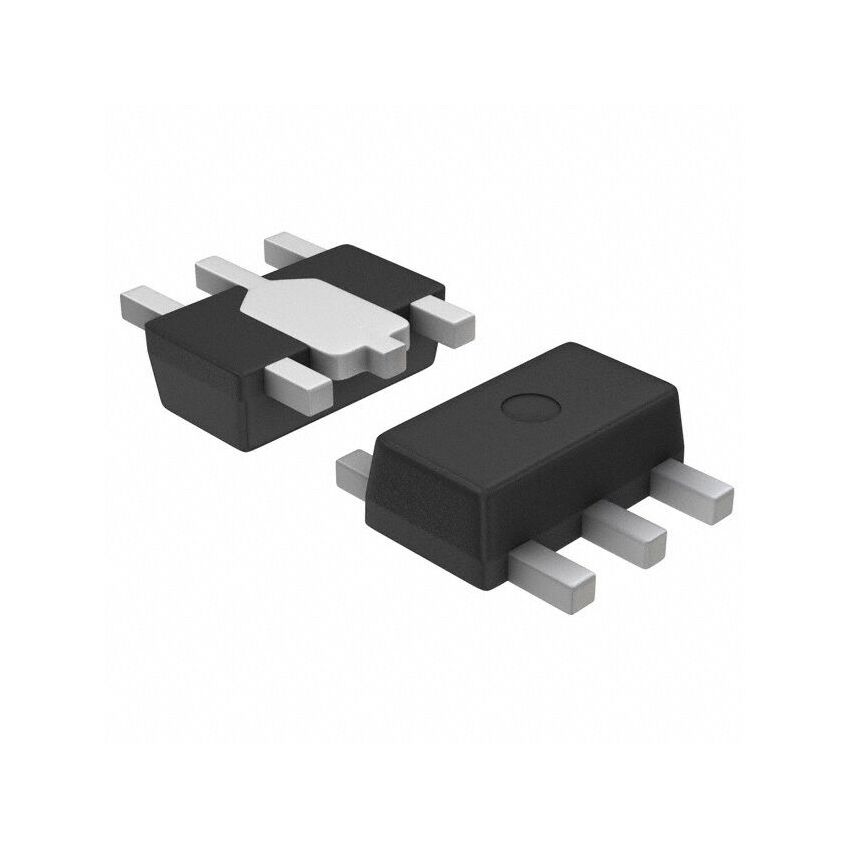

2SK680 N-Channel Power MOSFET (SOT-89)

FAQs for Products

1. What are the primary thermal management considerations when integrating the 2SK680 N-Channel Power MOSFET (SOT-89) into high-density PCB layouts?

   Effective thermal management is critical for the 2SK680 N-Channel Power MOSFET (SOT-89) due to its compact surface-mount footprint. While the SOT-89 package is designed for better heat dissipation than smaller packages like SOT-23, it still relies heavily on the PCB copper planes to act as a heat sink. The large center lead (Tab) is internally connected to the Drain, and it is essential to provide a wide copper pour around this terminal to minimize thermal resistance from junction to ambient (RθJA). In high-current switching applications, designers should utilize thermal vias to transfer heat to internal or bottom-layer ground planes. Because the 2SK680 N-Channel Power MOSFET (SOT-89) is often used in space-constrained portable devices, monitoring the junction temperature is vital to prevent thermal runaway. Engineers should calculate the power dissipation (Pd = I² × RDS(on)) and ensure that the total thermal load does not exceed the maximum rated junction temperature, typically 150°C, especially when operating in enclosed environments without active airflow.

2. How does the RDS(on) characteristic of the 2SK680 N-Channel Power MOSFET (SOT-89) impact efficiency in battery-operated power management systems?

   The 2SK680 N-Channel Power MOSFET (SOT-89) is engineered with a low Drain-Source On-Resistance (RDS(on)), which is a pivotal specification for maximizing efficiency in battery-powered electronics. When the MOSFET is in the 'on' state, the internal resistance causes a voltage drop and power loss in the form of heat, following the I²R formula. By utilizing the 2SK680 N-Channel Power MOSFET (SOT-89), designers can significantly reduce these conduction losses, which directly translates to longer battery life and reduced thermal stress on surrounding components. This efficiency is particularly important in DC-DC converters and load-switching applications where high current passes through the device frequently. Furthermore, a lower RDS(on) ensures that the voltage delivered to the load remains stable, minimizing the 'droop' that can occur in low-voltage systems. When selecting this component, professionals should evaluate the RDS(on) specifically at the logic-level gate voltages they intend to use, ensuring the 2SK680 N-Channel Power MOSFET (SOT-89) is fully saturated for peak performance.

3. Is the 2SK680 N-Channel Power MOSFET (SOT-89) suitable for logic-level gate driving directly from 3.3V or 5V microcontrollers?

   The 2SK680 N-Channel Power MOSFET (SOT-89) is specifically designed to be compatible with logic-level signals, making it an excellent choice for direct interfacing with modern microcontrollers and digital signal processors. The Gate-Source Threshold Voltage (VGS(th)) is low enough that a 3.3V or 5V output from a standard MCU can effectively drive the transistor into saturation. However, for high-speed switching or high-current loads, it is recommended to check the transfer characteristics curve in the datasheet to ensure the 2SK680 N-Channel Power MOSFET (SOT-89) provides sufficient drain current at the specific logic voltage provided. Driving the gate with a higher voltage (closer to 5V or 10V) typically further reduces the RDS(on), optimizing efficiency. In high-frequency PWM applications, engineers should also consider the gate charge (Qg); while the 2SK680 N-Channel Power MOSFET (SOT-89) has low gate capacitance, using a dedicated gate driver or a low-impedance MCU pin will ensure crisp switching transitions and minimize switching losses, preventing the MOSFET from lingering in the linear region.

4. What are the specific advantages of the 'K680A' marking and the SOT-89 package for industrial surface-mount assembly?

   The 'K680A' marking on the 2SK680 N-Channel Power MOSFET (SOT-89) serves as a critical identifier for quality control and automated optical inspection (AOI) during the PCB assembly process. In industrial manufacturing, clear component marking ensures that the correct N-channel MOSFET is placed, preventing costly rework. The SOT-89 package itself offers a unique middle ground between the ultra-small SOT-23 and the larger DPAK. It provides a robust physical structure that is resistant to mechanical stress and vibration, which is essential for automotive or industrial handheld devices. The lead geometry of the 2SK680 N-Channel Power MOSFET (SOT-89) is optimized for reliable solder fillet formation, allowing for easy inspection of solder joints. Additionally, the low profile of the SOT-89 enables the 2SK680 N-Channel Power MOSFET (SOT-89) to be used in slim consumer electronics where vertical clearance is limited, all while maintaining a power handling capability that exceeds many other small-signal surface-mount transistors.

5. Can the 2SK680 N-Channel Power MOSFET (SOT-89) be used effectively in high-frequency switching amplification circuits?

   Yes, the 2SK680 N-Channel Power MOSFET (SOT-89) is highly effective for high-frequency switching and small-signal amplification due to its low parasitic capacitances (Ciss, Coss, and Crss). In RF or high-speed switching applications, these capacitances determine the maximum frequency at which the device can operate without significant signal distortion or power loss. The 2SK680 N-Channel Power MOSFET (SOT-89) exhibits fast turn-on and turn-off times, making it suitable for Class D amplifiers, high-speed pulse generators, and signal modulation stages. When designing with the 2SK680 N-Channel Power MOSFET (SOT-89) for high-frequency use, it is important to minimize trace inductance at the gate and source terminals to prevent ringing and oscillation. Using a proper PCB layout with a tight return path for the gate drive signal will allow the 2SK680 N-Channel Power MOSFET (SOT-89) to achieve its full switching potential, ensuring clean waveforms and efficient power delivery across a wide frequency spectrum.

6. What protection circuitry is recommended when using the 2SK680 N-Channel Power MOSFET (SOT-89) to drive inductive loads like relays or motors?

   When employing the 2SK680 N-Channel Power MOSFET (SOT-89) to drive inductive loads such as DC motors, solenoids, or relays, it is crucial to implement flyback protection. Inductive loads generate high-voltage spikes (back EMF) when the MOSFET switches off and the magnetic field collapses. These spikes can easily exceed the Drain-Source Voltage (VDS) rating of the 2SK680 N-Channel Power MOSFET (SOT-89), leading to permanent avalanche breakdown. To protect the device, a fast-recovery Schottky diode should be placed in parallel with the load (cathode to positive supply). Furthermore, adding a small resistor in series with the gate of the 2SK680 N-Channel Power MOSFET (SOT-89) can help dampen high-frequency oscillations caused by the interaction of the gate capacitance and lead inductance. For harsh environments, a Zener diode across the Gate-Source junction is also advisable to clamp any transient voltage spikes that might exceed the maximum VGS rating, ensuring the long-term reliability of the 2SK680 N-Channel Power MOSFET (SOT-89) in the field.

7. How does the 2SK680 N-Channel Power MOSFET (SOT-89) perform in low-voltage load switching compared to standard bipolar junction transistors (BJTs)?

   The 2SK680 N-Channel Power MOSFET (SOT-89) offers several significant advantages over traditional BJTs in low-voltage load switching applications. Unlike BJTs, which are current-controlled and require a continuous base current to remain in the 'on' state, the 2SK680 N-Channel Power MOSFET (SOT-89) is voltage-controlled. This means it draws virtually no current at the gate once the gate capacitance is charged, drastically reducing the power consumed by the control circuitry. Additionally, the 2SK680 N-Channel Power MOSFET (SOT-89) does not suffer from the saturation voltage drop (VCE(sat)) typical of BJTs; instead, it behaves like a low-value resistor (RDS(on)). This results in a much lower voltage drop across the switch, which is vital for preserving signal integrity and power efficiency in 1.8V or 3.3V systems. The faster switching speeds of the 2SK680 N-Channel Power MOSFET (SOT-89) also make it superior for PWM-controlled loads, providing better control resolution and lower thermal output compared to a BJT-based solution in the same SOT-89 footprint.
