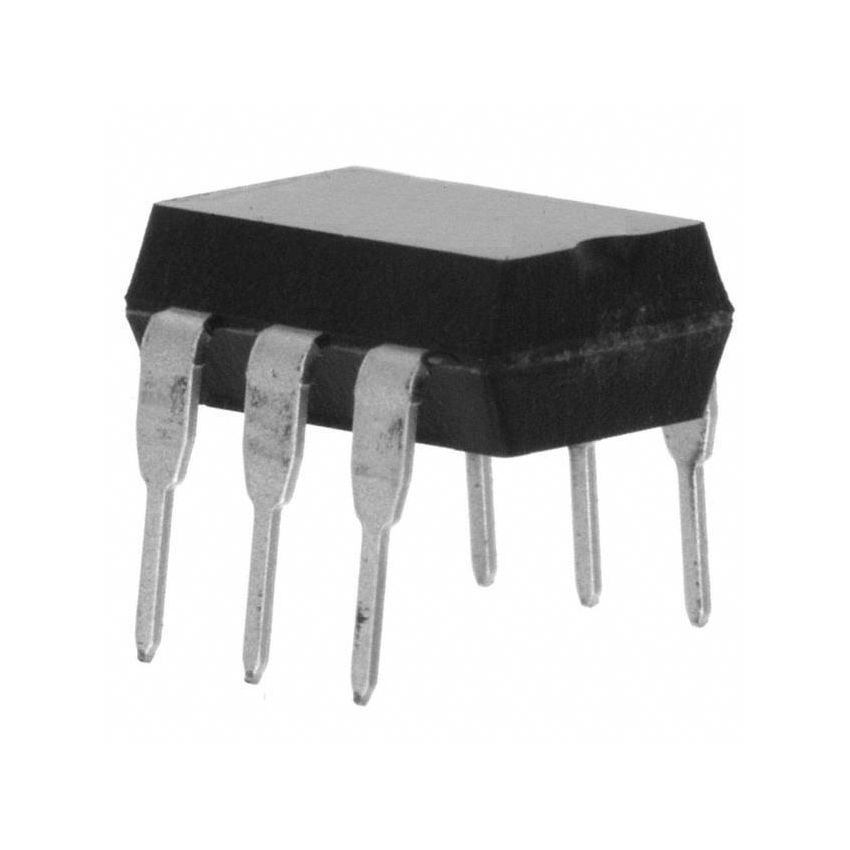

4N29 OPTO INTEGRATED CIRCUIT DIP-6

The 4N29 is an optocoupler, also known as an optoisolator, integrated circuit (IC) housed in a 6-pin DIP (Dual In-Line Package). This device provides electrical isolation between two circuits, allowing signals to be transmitted without a direct electrical connection. The 4N29 consists of an infrared light-emitting diode (LED) and a phototransistor, which are optically coupled. When current flows through the LED, it emits infrared light, which activates the phototransistor. This allows for the transfer of signals while maintaining a high degree of electrical isolation, protecting sensitive circuits from voltage spikes and noise. The 6-pin DIP package makes it easy to integrate into various circuit boards and electronic systems.

The primary function of the 4N29 is to provide electrical isolation between two circuits. This is particularly useful in applications where there is a need to protect sensitive circuits from high voltages or electrical noise. The optocoupler achieves this by using light to transmit the signal, rather than a direct electrical connection. The input side of the 4N29 consists of an infrared LED, which emits light when current flows through it. The output side consists of a phototransistor, which is sensitive to infrared light. When the LED emits light, the phototransistor turns on, allowing current to flow through the output circuit. This provides a safe and reliable way to transmit signals between circuits with different voltage levels or ground potentials.

The 6-pin DIP package of the 4N29 simplifies the prototyping and assembly processes. This through-hole package is widely supported by breadboards and prototyping boards, allowing engineers and hobbyists to quickly test and implement the IC in their designs. The dual in-line configuration also makes it easy to solder and connect the IC to other components. The compact size of the 6-pin DIP package ensures that the 4N29 can be integrated into space-constrained applications without compromising performance. This makes it an ideal choice for both professional and DIY electronics projects.

The 4N29 optocoupler is used in a wide range of applications, including industrial control systems, power supplies, and communication equipment. In industrial control systems, it is used to isolate control signals from high-voltage power circuits, protecting sensitive control electronics from damage. In power supplies, it is used to provide feedback signals while maintaining electrical isolation between the primary and secondary sides. In communication equipment, it is used to isolate data signals, preventing ground loops and noise from interfering with the signal. Its versatility and reliability make it a valuable component in many electronic systems.

Whether you are designing an industrial control system, a power supply, or a communication device, the 4N29 optocoupler offers the electrical isolation and signal transfer capabilities you need. Its robust design, easy-to-use 6-pin DIP package, and wide range of applications make it an excellent choice for any electronics project. Order your 4N29 optocoupler IC today and ensure your circuits are protected from voltage spikes and noise. Add this essential component to your cart now and take the first step towards safer and more reliable electronic designs.
