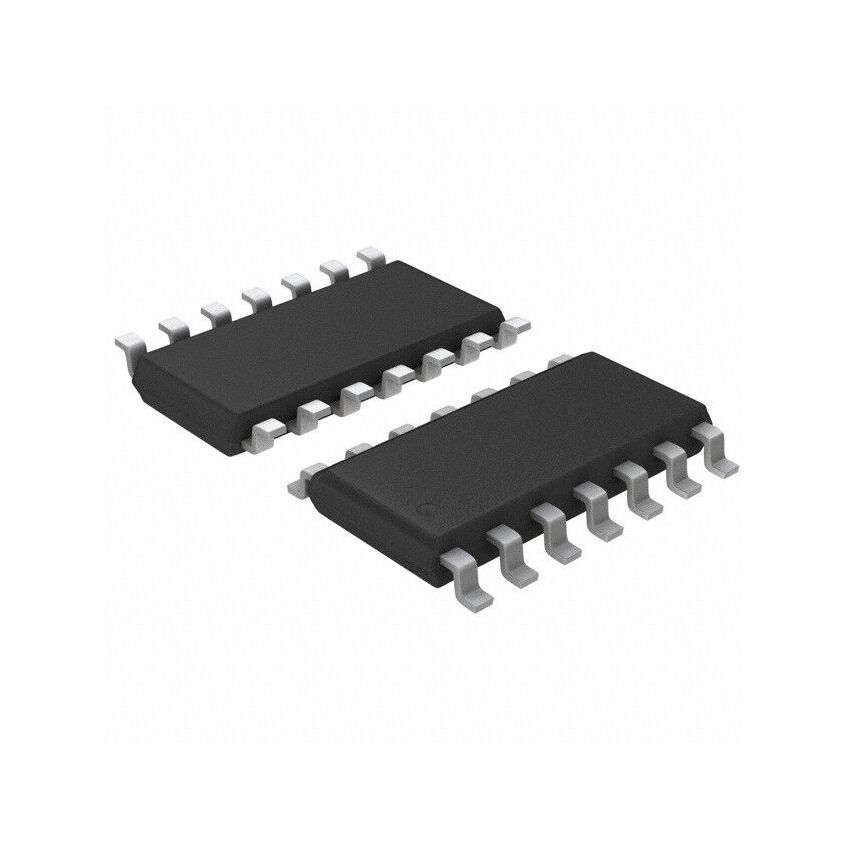

74AS00D SMD INTEGRATED CIRCUIT SOP-14 74AS00/SOP

The 74AS00D is a high-speed quad 2-input NAND gate integrated circuit, fabricated using advanced Schottky TTL technology. Encased in a compact SOP-14 (Small Outline Package) suitable for surface mount device (SMD) assembly, this IC offers exceptional performance in digital logic applications. The 74AS00D is a member of the 74AS series, known for its superior speed and drive capabilities compared to standard TTL logic. Its primary function is to perform the NAND logic operation on two input signals, providing a single output that is low only when both inputs are high. This fundamental logic gate is a building block in numerous digital circuits, including microprocessors, memory systems, and control logic.

The SOP-14 package of the 74AS00D allows for efficient use of board space, making it ideal for high-density circuit designs. Surface mount technology ensures reliable connections and simplifies automated assembly processes, reducing manufacturing costs and improving overall product quality. The 74AS00D operates over a wide supply voltage range, typically 4.5V to 5.5V, and features a low power consumption, contributing to energy efficiency in electronic systems. Its high noise immunity further enhances its reliability in noisy environments, ensuring stable and predictable operation. The 74AS00D is a dependable choice for demanding digital logic applications.

The 74AS00D finds widespread use in various electronic systems, including data processing, telecommunications, and industrial control. It can be employed in address decoding, data multiplexing, and control signal generation. In microprocessor-based systems, the 74AS00D can be used to implement complex logic functions, such as address decoding for memory access or control logic for peripheral devices. Its high speed allows for fast data processing and efficient system operation. In telecommunications equipment, the 74AS00D can be used in signal routing and data transmission circuits, ensuring reliable communication. Its versatility and performance make it a valuable component in a wide range of applications.

From a technical standpoint, the 74AS00D features a typical propagation delay of just a few nanoseconds, enabling high-speed operation. Its output drive capability is sufficient to drive multiple TTL loads, allowing for fan-out to other logic gates. The device is designed to meet industry standards for electrostatic discharge (ESD) protection, ensuring robustness against accidental damage during handling and assembly. The 74AS00D is also available in other package options, such as DIP-14, for through-hole mounting. However, the SOP-14 package offers advantages in terms of size and assembly efficiency. The 74AS00D is a reliable and high-performance logic gate that meets the demands of modern electronic systems.

In conclusion, the 74AS00D SMD integrated circuit in the SOP-14 package is a high-speed, low-power, and reliable quad 2-input NAND gate. Its compact size, surface mount design, and excellent performance make it an ideal choice for a wide range of digital logic applications. Whether you are designing a microprocessor-based system, telecommunications equipment, or industrial control system, the 74AS00D can provide the logic functionality you need. Order your 74AS00D today and experience the benefits of high-speed, reliable logic!
