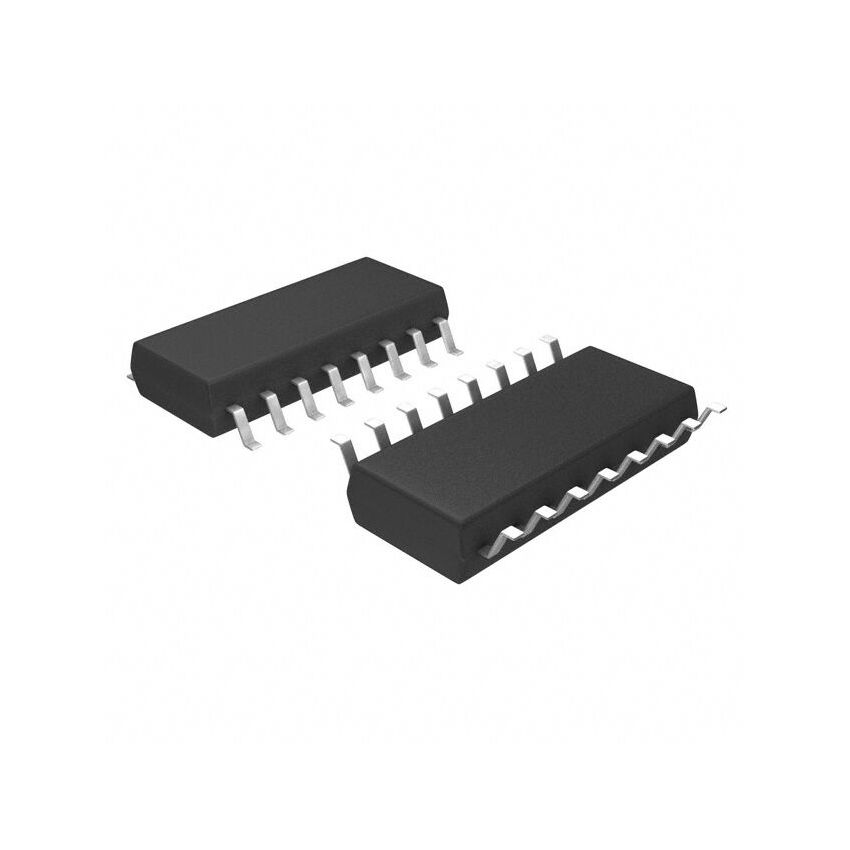

74HC138 SMD INTEGRATED CIRCUIT SOP-16

The 74HC138 is a high-speed CMOS 3-to-8 line decoder/demultiplexer fabricated using silicon gate CMOS technology. Encased in a compact SOP-16 (Small Outline Package) for surface mount applications, this integrated circuit is designed for efficient and reliable performance in a wide array of digital logic systems. Its low power consumption and high noise immunity make it an ideal choice for battery-powered devices and environments with electrical interference. The 74HC138 simplifies complex decoding tasks, reducing component count and board space in your designs. This SMD IC is a staple for modern electronics.

This decoder/demultiplexer accepts three binary address inputs (A0, A1, A2) and enables one of eight outputs based on the input code. The device features three enable inputs (E1, E2, E3), which must be at their active levels to enable the outputs. This allows for easy cascading and expansion of the decoder function. The 74HC138's outputs are active-low, meaning the selected output will be low while all other outputs remain high. This configuration is commonly used in memory addressing, data routing, and control signal generation. Its SOP-16 package ensures easy integration into automated assembly processes.

The 74HC138 finds extensive use in memory systems for address decoding, enabling specific memory locations based on the input address. It is also employed in data routing applications, directing data from a single source to one of multiple destinations. In control systems, the 74HC138 can generate control signals for various devices based on a central command. Its versatility makes it a valuable component in a wide range of applications, from simple logic circuits to complex digital systems. The surface mount design allows for high-density board layouts.

The 74HC138 SMD IC offers several advantages over traditional through-hole components, including reduced size, lower profile, and improved thermal performance. The SOP-16 package is well-suited for automated assembly processes, leading to increased manufacturing efficiency and reduced costs. Its high-speed operation and low power consumption make it a suitable replacement for older TTL logic devices. The 74HC138 is a reliable and cost-effective solution for your decoding and demultiplexing needs. Its robust design ensures long-term performance.

Upgrade your digital logic designs with the 74HC138 SMD Integrated Circuit SOP-16. Experience the benefits of high-speed operation, low power consumption, and compact size. Order yours today and simplify your decoding and demultiplexing tasks. Benefit from its ease of integration and reliable performance. Don't miss out on this opportunity to enhance your projects with a top-quality integrated circuit. Invest in the 74HC138 and see the difference it makes in your designs. Take your projects to the next level with this versatile and dependable component.
