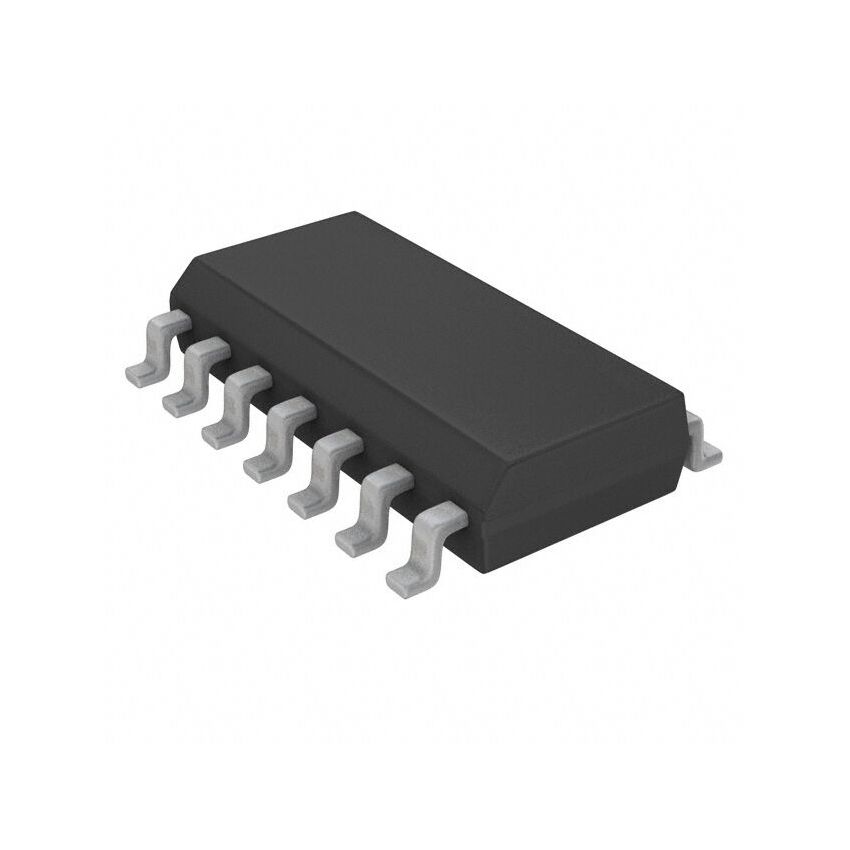

74HC20D IC DUAL 4-IN NAND GATE 14SOIC 74HC20 SMD SN74HC20DR

The 74HC20D is a high-speed CMOS device that integrates two independent 4-input NAND gates into a single, compact 14-pin SOIC package. This integrated circuit is part of the widely utilized 74HC family, known for its excellent balance of high-speed performance and low power consumption. Each gate in the 74HC20D performs the Boolean function of Y = A • B • C • D in negative logic, providing a fundamental building block for complex digital systems. Designed for surface-mount applications, the SOIC-14 footprint allows for high-density PCB layouts, making it an ideal choice for modern electronics where board space is a critical design constraint. Whether you are working on industrial automation, consumer electronics, or telecommunications equipment, the 74HC20D offers the reliable logic processing required for sophisticated signal routing and mathematical computations within your digital architecture.

Technically, the 74HC20D stands out due to its wide operating voltage range, typically from 2V to 6V, which makes it compatible with both legacy 5V systems and modern 3.3V low-power designs. The CMOS technology used in its fabrication ensures extremely low static power consumption, which is a significant advantage for battery-operated devices and energy-efficient systems. Despite its low power draw, the 74HC20D does not compromise on speed, offering propagation delays that are comparable to standard TTL logic families. The device also features high noise immunity, which is essential for maintaining signal integrity in electrically noisy environments such as factory floors or high-frequency communication hubs. Each input is equipped with clamp diodes to protect the gate from electrostatic discharge (ESD) and overvoltage transients, ensuring the IC remains functional even under less-than-ideal electrical conditions.

The physical construction of the 74HC20D in the 14-SOIC package is engineered for durability and ease of automated assembly. The small outline integrated circuit (SOIC) format is specifically designed for pick-and-place machines, facilitating rapid and accurate production cycles. The leads are finished with high-quality plating to ensure excellent solderability and long-term joint reliability, even in applications subject to thermal cycling or mechanical vibration. Furthermore, the 74HC20D is designed to operate over a wide temperature range, typically from -40 to +125 degrees Celsius, making it suitable for automotive and industrial applications where extreme conditions are common. This level of environmental resilience, combined with its robust electrical characteristics, ensures that the 74HC20D provides a consistent and dependable logic solution throughout the entire lifecycle of your electronic product, reducing the need for maintenance and costly field failures.

In terms of application versatility, the 74HC20D Dual 4-Input NAND Gate is an essential component for a vast array of digital logic functions. It is frequently used in address decoding, where multiple signals must be combined to enable specific memory banks or peripheral devices. It also plays a vital role in implementing complex combinational logic circuits, such as parity generators, magnitude comparators, and data multiplexers. Because NAND gates are functionally complete, the 74HC20D can be used to construct any other logic gate (AND, OR, NOT, XOR), providing engineers with incredible flexibility during the prototyping phase. Its dual-gate configuration allows for two independent logic operations to be performed within a single chip, which helps in reducing the overall component count and simplifying the trace routing on the printed circuit board, leading to a more streamlined and cost-effective final design.

Integrating the 74HC20D into your design is made simple by its industry-standard pinout and compatibility with other 74 series logic families. It can interface seamlessly with other HC, HCT, and CMOS logic devices, allowing for easy expansion of existing digital systems. The 14-pin SOIC package is standard across the industry, meaning that footprint libraries are readily available in almost all PCB design software, accelerating the development process from schematic capture to board layout. For developers working on high-speed digital buses, the 74HC20D provides the necessary drive capability to handle moderate capacitive loads without significant signal degradation. Its predictable switching characteristics and well-defined logic levels simplify the timing analysis of complex synchronous systems, ensuring that your digital designs operate reliably at their intended clock speeds and meet all performance benchmarks during the validation phase.

Choosing the 74HC20D Dual 4-Input NAND Gate IC is a commitment to quality and efficiency in your digital logic designs. This component offers the perfect combination of high-speed CMOS performance, low power consumption, and physical compactness. By utilizing this IC, you are ensuring that your digital systems are built on a foundation of reliable and well-understood logic technology. Whether you are a professional hardware engineer or an advanced electronics hobbyist, the 74HC20D provides the versatility and precision needed to bring your complex digital ideas to life. We provide high-quality, genuine 74HC20D components that meet all original manufacturer specifications, ensuring that you receive the best possible performance for your investment. Purchase your 74HC20D ICs today and enhance your digital circuitry with a component that is trusted by engineers worldwide for its consistency, durability, and superior logic processing capabilities.
