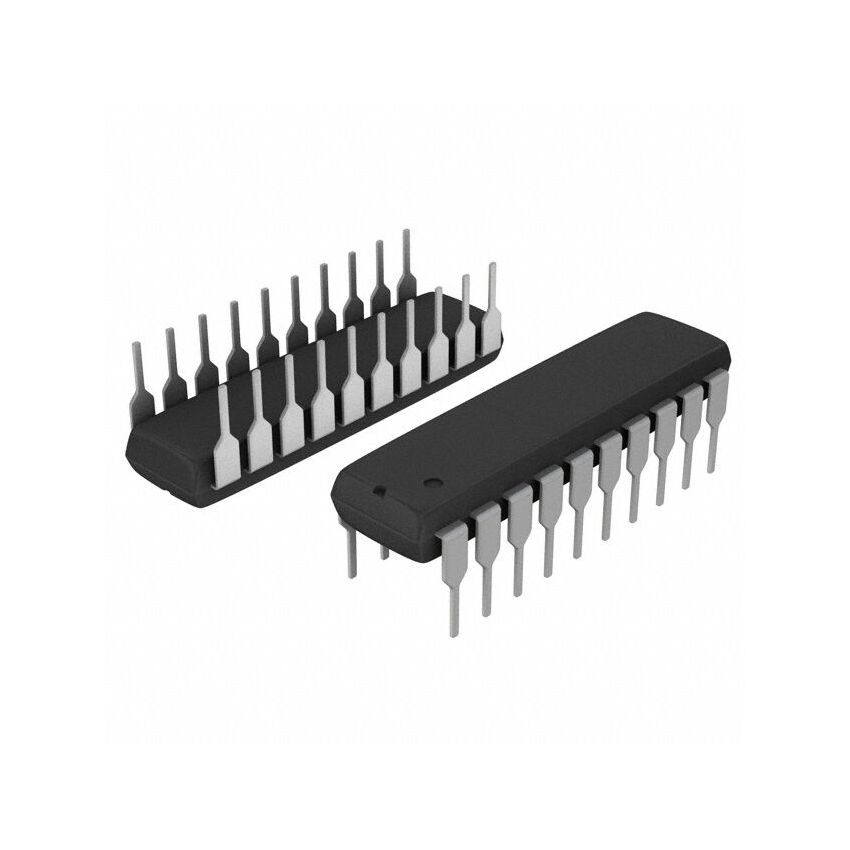

74HC244 INTGRATED CIRCUIT DIP-20

The 74HC244 INTEGRATED CIRCUIT DIP-20 is a high-speed, octal buffer/line driver designed for a multitude of digital logic applications. Encased in a 20-pin Dual In-line Package (DIP-20), this integrated circuit leverages the advanced High-speed CMOS (HCMOS) technology, delivering superior performance compared to standard TTL (Transistor-Transistor Logic) devices. The 74HC244 functions as a non-inverting buffer, meaning it amplifies and strengthens digital signals without changing their polarity. This makes it ideal for driving high-capacitance loads, buffering signals across long distances, and isolating sensitive circuits from external noise. Its primary function is to improve signal integrity and prevent signal degradation in digital systems. The HC designation indicates that this IC belongs to the high-speed CMOS family, characterized by its low power consumption and fast switching speeds.

Compared to older CMOS or TTL logic, the 74HC244 provides significantly faster propagation delays, enabling it to handle high-frequency signals with ease. The DIP-20 package simplifies installation on printed circuit boards (PCBs) and breadboards, making it suitable for both prototyping and mass production. Its standardized pinout ensures compatibility with existing designs, streamlining the integration process. The 74HC244 features three-state outputs, which can be either high, low, or high-impedance. This feature allows multiple devices to share a common bus, enabling efficient data transmission and multiplexing. The output enable (OE) pins control the state of the outputs.

When OE is active (typically low), the outputs are enabled, allowing signals to pass through the buffer. When OE is inactive (typically high), the outputs are placed in a high-impedance state, effectively disconnecting the buffer from the bus. This is crucial for preventing bus contention and ensuring proper data transfer in complex digital systems. The applications of the 74HC244 are vast and diverse. It's commonly used in memory systems to buffer address and data lines, in microprocessor systems to isolate peripherals from the CPU, and in communication systems to drive long cables. Its high fan-out capability allows it to drive multiple logic gates simultaneously, making it a versatile component in various digital circuits.

When designing with the 74HC244, it's essential to consider its operating voltage range, input voltage levels, and output current capabilities. The IC typically operates from 2V to 6V, and its input voltage levels must conform to the CMOS logic thresholds. Exceeding the maximum ratings can damage the IC or compromise its performance. By carefully adhering to the recommended operating conditions and employing proper design techniques, engineers can maximize the benefits of the 74HC244. Whether you're building a high-speed data acquisition system or designing a complex control circuit, the 74HC244 INTEGRATED CIRCUIT DIP-20 offers the performance, reliability, and versatility you need. Don't let signal degradation slow you down.

Secure your 74HC244 today and ensure clean, strong signals in your digital circuits!
