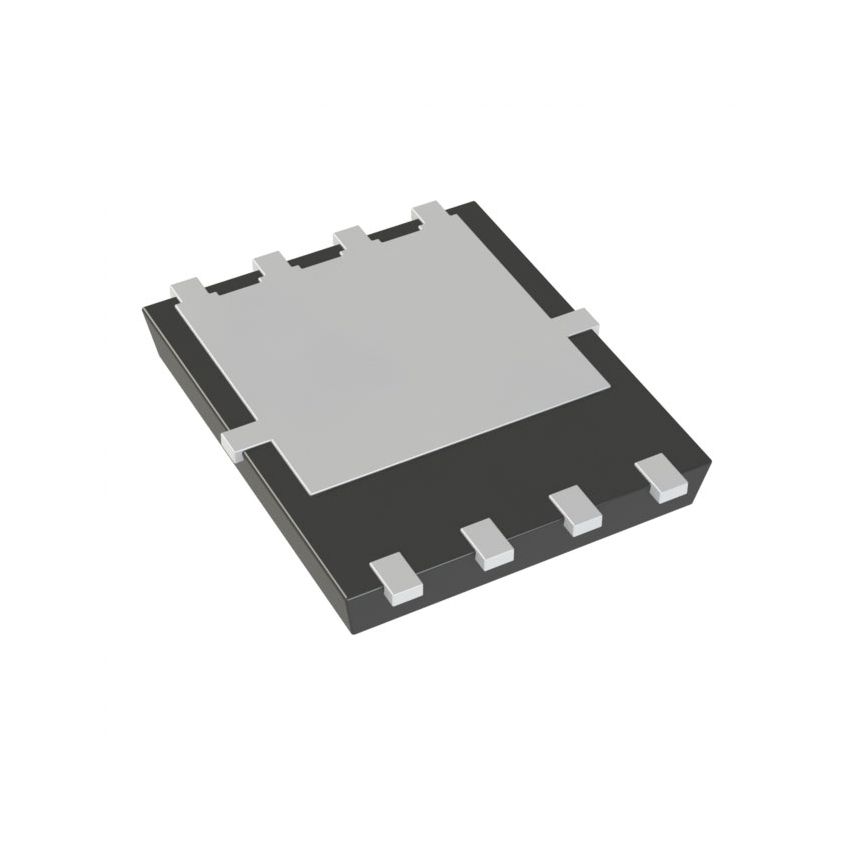

AON6560 MOSFET N-CH 30V 84A/200A 8DFN

The AON6560 is a high-performance N-Channel MOSFET designed for a wide range of power management applications. This device boasts a 30V drain-source voltage rating and an impressive continuous drain current of 84A, with pulsed drain current reaching up to 200A. Encased in a compact 8DFN package, the AON6560 offers exceptional thermal performance and efficient space utilization on the circuit board. Its low on-resistance (RDS(on)) minimizes power losses, contributing to improved energy efficiency in various electronic systems. This MOSFET is ideal for synchronous rectification, DC-DC converters, and load switching applications where high current handling and minimal power dissipation are crucial.

Featuring advanced trench MOSFET technology, the AON6560 delivers superior switching performance and reduced gate charge, enabling faster switching speeds and improved overall efficiency. The device's robust design ensures reliable operation even under demanding conditions, making it suitable for use in industrial, automotive, and consumer electronics applications. Its low gate threshold voltage allows for easy driving and compatibility with a wide range of driver circuits. The AON6560's optimized design minimizes parasitic inductances and capacitances, further enhancing its high-frequency performance and reducing electromagnetic interference (EMI).

The AON6560's key specifications include a drain-source voltage (VDS) of 30V, a continuous drain current (ID) of 84A, and a pulsed drain current (IDM) of 200A. Its low on-resistance (RDS(on)) of 3.5 mΩ (at VGS = 10V) ensures minimal power loss and efficient operation. The gate-source voltage (VGS) is rated at ±20V, providing a wide operating range. The device's total gate charge (Qg) is typically 35 nC, contributing to its fast switching speed. The AON6560's operating temperature range spans from -55°C to +150°C, making it suitable for use in harsh environments.

This MOSFET is an excellent choice for applications requiring high efficiency, high current handling, and compact size. Its low on-resistance minimizes power dissipation, reducing heat generation and improving overall system reliability. The AON6560's fast switching speed enables efficient operation in high-frequency circuits, while its robust design ensures stable performance under varying load conditions. Whether you're designing a power supply, motor control system, or battery management system, the AON6560 offers the performance and reliability you need.

Upgrade your power management solutions with the AON6560 MOSFET. Experience the benefits of its high current handling, low on-resistance, and efficient thermal performance. Order yours today and take your designs to the next level. Don't miss out on this opportunity to enhance the efficiency and reliability of your electronic systems. Click here to purchase the AON6560 and revolutionize your power management designs!
