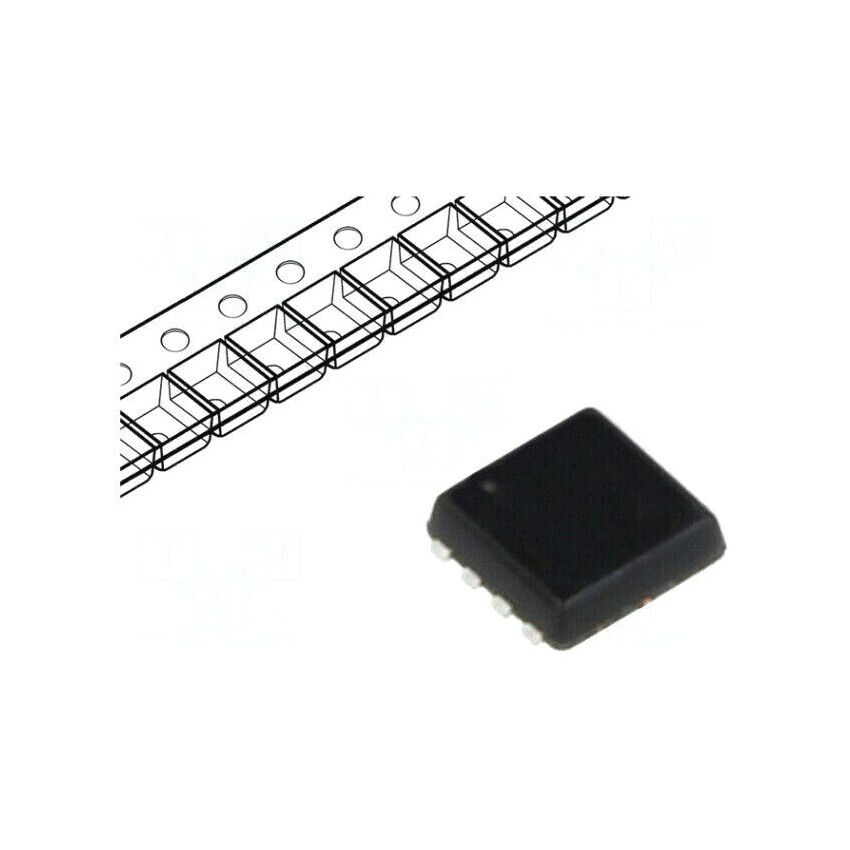

AON7752 Transistor: N-MOSFET; unipolar; 30V; 12A; 8.3W; DFN3x3 EP

The AON7752 transistor is a high-performance N-channel MOSFET designed for a wide range of power management and switching applications. This unipolar transistor boasts a voltage rating of 30V and a continuous drain current of 12A, making it suitable for both low-side and high-side switching configurations. Encased in a compact DFN3x3 EP (exposed pad) package, the AON7752 offers excellent thermal performance, efficiently dissipating heat with a power dissipation rating of 8.3W. Its low on-resistance (RDS(on)) minimizes conduction losses, contributing to improved energy efficiency in your circuits. This MOSFET is an ideal choice for designers seeking a reliable and efficient switching solution in a small form factor.

Key features of the AON7752 include its fast switching speed, which reduces switching losses and improves overall system efficiency. The device's low gate charge (Qg) further contributes to faster switching and reduced power consumption. The DFN3x3 EP package not only enhances thermal performance but also allows for easy integration into densely populated circuit boards. The AON7752 is designed to operate over a wide temperature range, ensuring reliable performance in various environmental conditions. Its robust design and high-quality manufacturing make it a dependable component for demanding applications.

The AON7752 transistor finds applications in various fields, including DC-DC converters, load switching, power management in portable devices, and motor control circuits. Its ability to handle moderate current levels and its efficient thermal characteristics make it well-suited for applications where space and power efficiency are critical. In DC-DC converters, the AON7752 can be used as a synchronous rectifier to improve efficiency. In load switching applications, it provides a reliable and efficient way to control power to various loads. Its compact size makes it ideal for use in smartphones, tablets, and other portable devices.

When selecting a MOSFET for your application, consider the AON7752's key specifications, including its voltage and current ratings, on-resistance, and thermal characteristics. Ensure that these parameters meet the requirements of your circuit to ensure optimal performance and reliability. The AON7752's low on-resistance minimizes power dissipation, reducing heat generation and improving overall system efficiency. Its fast switching speed reduces switching losses, further contributing to energy savings. The DFN3x3 EP package provides excellent thermal performance, allowing the device to operate at higher power levels without overheating.

In conclusion, the AON7752 transistor is a versatile and efficient N-channel MOSFET suitable for a wide range of power management and switching applications. Its compact size, excellent thermal performance, and low on-resistance make it an ideal choice for designers seeking a reliable and efficient switching solution. Upgrade your circuits with the AON7752 and experience improved performance and energy efficiency. Order yours today and take your designs to the next level!
