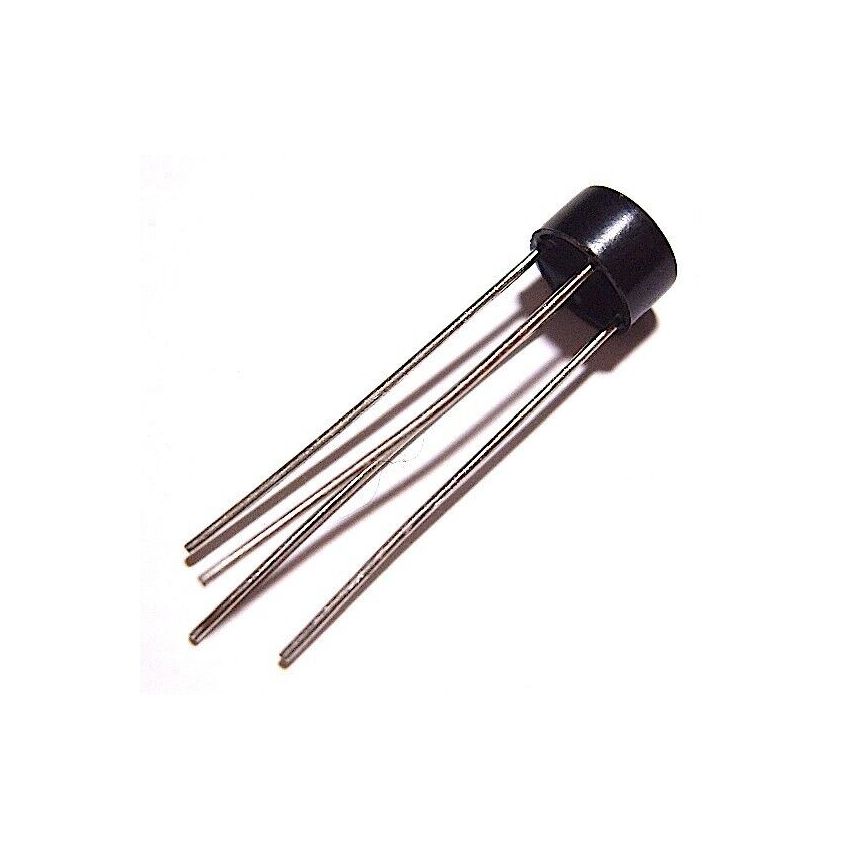

B250C1500RD 1.5A 600V BRIDGE RECTIFIER DIODE = W06M

FAQs for Products

1. What are the optimal applications for the B250C1500RD Bridge Rectifier, considering its 600V and 2.5A ratings?

   The B250C1500RD Bridge Rectifier, with its robust 600V reverse voltage and 2.5A average forward current ratings, is ideally suited for a wide range of power conversion applications where moderate power levels are required. Its 600V rating makes it suitable for rectifying mains AC voltages in regions with 120V, 230V, or even higher line voltages, offering a significant safety margin against transient voltage spikes. Common applications include power adapters for consumer electronics, where it efficiently converts AC wall power to DC for device operation. It's also excellent for battery chargers, providing the necessary DC current to recharge various battery chemistries. Furthermore, its reliability makes the B250C1500RD Bridge Rectifier a strong choice for industrial control systems, where stable DC power is critical for sensors, actuators, and control logic, ensuring dependable operation in demanding environments. This rectifier efficiently handles the conversion of AC input into a stable DC output for these crucial systems.

2. How does the compact package of the B250C1500RD Bridge Rectifier influence its thermal management requirements in various circuit designs?

   The B250C1500RD Bridge Rectifier's compact package is designed for space-constrained applications, facilitating easy integration into diverse circuit designs. While offering space savings, its compact nature necessitates careful consideration of thermal management, especially when operating near its maximum 2.5A current rating. During operation, the forward voltage drop across the diodes converts a portion of the power into heat. For the B250C1500RD Bridge Rectifier, this heat must be efficiently dissipated to prevent thermal runaway and ensure long-term reliability. In lower power applications, the PCB traces and ambient airflow might be sufficient. However, for continuous operation at higher currents or in elevated ambient temperatures, integrating a small heatsink or ensuring adequate copper pour on the PCB for thermal conduction becomes crucial. Proper thermal design ensures the B250C1500RD Bridge Rectifier maintains its specified performance and longevity within the circuit.

3. What level of surge current protection does the B250C1500RD Bridge Rectifier offer, and why is this critical for its specified applications?

   The B250C1500RD Bridge Rectifier boasts a high surge current capability, a critical feature for protecting connected circuitry from transient overcurrent conditions. This capability allows the B250C1500RD Bridge Rectifier to withstand brief, non-repetitive current spikes that are significantly higher than its average forward current rating without sustaining damage. This is particularly vital in applications like power adapters and battery chargers, where initial power-on can result in substantial inrush currents as capacitors charge. In industrial control systems, motors or inductive loads can also generate momentary current surges. By absorbing these high current pulses, the B250C1500RD Bridge Rectifier safeguards not only itself but also downstream components, preventing premature failure and enhancing the overall reliability and robustness of the power supply design. This ensures stable and continuous operation even in the presence of electrical disturbances.

4. Can the B250C1500RD Bridge Rectifier be directly substituted for a W06M, and what are the key electrical parameters to verify for compatibility?

   Yes, the B250C1500RD Bridge Rectifier is explicitly stated to be equivalent to the W06M, indicating direct substitutability in most typical applications. However, when replacing any component, it's always prudent to verify key electrical parameters to ensure full compatibility with the existing circuit design. For the B250C1500RD Bridge Rectifier (and its W06M equivalent), the critical parameters to check are the maximum repetitive peak reverse voltage (VRRM), which is 600V, and the average forward rectified current (IF(AV)), which is 2.5A. Additionally, comparing the forward voltage drop (VF) at the operating current and the reverse leakage current (IR) at the peak reverse voltage can confirm similar power dissipation and efficiency characteristics. Surge current rating (IFSM) and thermal resistance (Rth) are also important to ensure the B250C1500RD Bridge Rectifier performs reliably under transient and thermal conditions, matching or exceeding the original W06M's specifications.

5. What are the typical forward voltage drop and reverse leakage current characteristics of the B250C1500RD Bridge Rectifier, and how do these impact power efficiency?

   The forward voltage drop (VF) and reverse leakage current (IR) are crucial characteristics that directly influence the power efficiency of the B250C1500RD Bridge Rectifier. Typically, a standard silicon bridge rectifier like the B250C1500RD will exhibit a forward voltage drop of approximately 1.0V to 1.2V per diode at its rated current. Since a bridge rectifier uses two diodes in series for each half-cycle, the total voltage drop across the B250C1500RD Bridge Rectifier would be around 2.0V to 2.4V. This voltage drop, multiplied by the forward current, represents the power dissipated as heat, reducing the overall power conversion efficiency. A lower VF is desirable for higher efficiency. The reverse leakage current, typically in the microampere range, indicates the small current flowing when the diodes are reverse-biased. While generally negligible in terms of power loss for the B250C1500RD Bridge Rectifier, excessive leakage can indicate a compromised junction and affect long-term reliability in sensitive applications. Minimizing both VF and IR is key to maximizing the efficiency of the B250C1500RD Bridge Rectifier.

6. What are the recommended mounting and soldering practices for the B250C1500RD Bridge Rectifier to ensure optimal performance and longevity?

   Proper mounting and soldering practices are essential for maximizing the performance and longevity of the B250C1500RD Bridge Rectifier. Given its compact package, it's typically designed for through-hole mounting. When soldering, ensure that the soldering iron temperature and dwell time comply with industry standards (e.g., IPC guidelines) to prevent thermal stress to the diode junctions. Overheating during soldering can degrade the B250C1500RD Bridge Rectifier's performance or even damage it. For optimal thermal management, especially in applications operating closer to the 2.5A current limit, consider using larger PCB pads or copper areas connected to the rectifier's leads to act as thermal sinks. Adequate lead length should be maintained to allow for thermal expansion and contraction. Always ensure correct polarity when installing the B250C1500RD Bridge Rectifier to prevent immediate damage upon power-up, following the marked terminals for AC input and DC output.

7. How does the B250C1500RD Bridge Rectifier contribute to the overall reliability and robustness of power supply designs, particularly in industrial control systems?

   The B250C1500RD Bridge Rectifier significantly enhances the reliability and robustness of power supply designs, especially in demanding environments like industrial control systems, due to several key characteristics. Its 600V voltage rating provides a substantial safety margin against voltage transients and line fluctuations common in industrial settings, preventing component breakdown. The 2.5A current rating ensures stable DC power delivery for various loads without overstressing the component. Crucially, the high surge current capability of the B250C1500RD Bridge Rectifier protects the power supply from damaging inrush currents during startup or from load switching, thereby extending the lifespan of the entire system. Its 'robust and reliable' design minimizes the risk of failure, which is paramount in industrial applications where downtime can be costly. By efficiently and dependably converting AC to DC, the B250C1500RD Bridge Rectifier forms a solid foundation for reliable power delivery in critical control systems.
