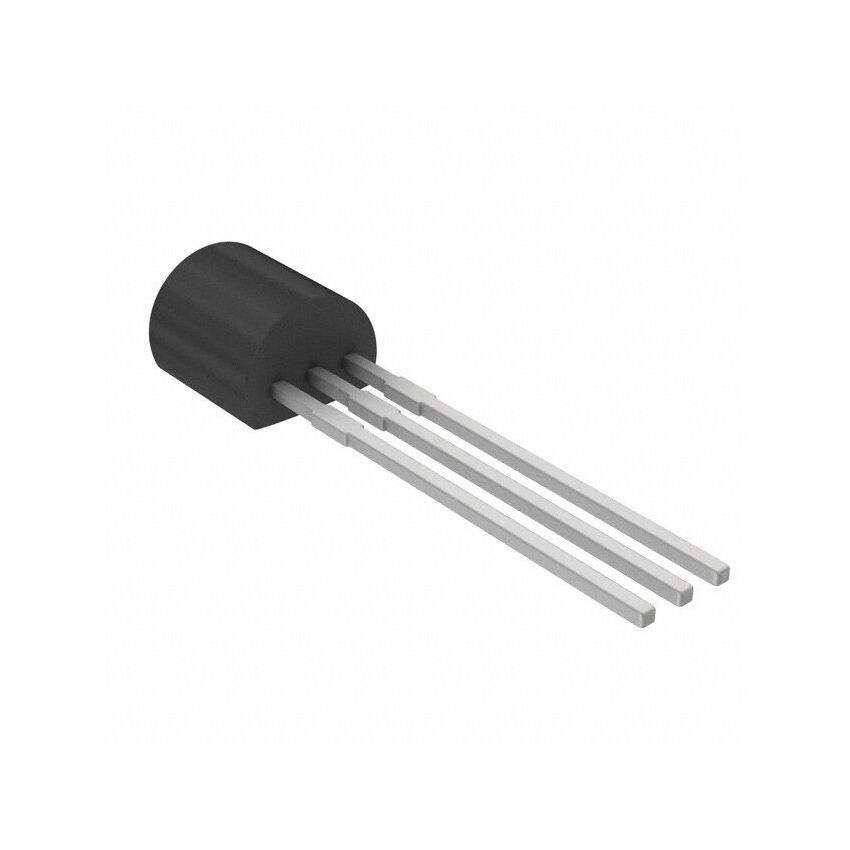

BC171 GENERAL PURPOSE NPN HIGH GAIN TRANSISTOR TO-92

The BC171 is a versatile NPN bipolar junction transistor (BJT) housed in the ubiquitous TO-92 package, making it an ideal choice for a wide array of general-purpose amplification and switching applications. This high-gain transistor is specifically designed to provide substantial current amplification, enabling it to drive larger loads with minimal input current. Its robust construction and reliable performance make it a staple component in both hobbyist projects and professional electronic designs. The BC171's ease of use and widespread availability further contribute to its popularity among engineers and electronics enthusiasts alike. Consider the BC171 for your next project requiring a dependable NPN transistor.

Featuring a collector-emitter voltage (VCEO) of typically 50V and a collector current (IC) rating of around 100mA, the BC171 can handle moderate voltage and current levels, making it suitable for various low to medium power applications. The high current gain (hFE), typically ranging from 100 to 800, allows for efficient amplification of weak signals, ensuring that even small input signals can produce significant output changes. This characteristic is particularly useful in audio amplifiers, signal processing circuits, and other applications where signal integrity is paramount. The transistor's gain characteristics are optimized for linear amplification within its specified operating range.

The TO-92 package of the BC171 ensures easy integration into printed circuit boards (PCBs) and breadboards, simplifying prototyping and assembly processes. Its three leads—collector, base, and emitter—are clearly defined, facilitating straightforward circuit design and troubleshooting. The compact size of the TO-92 package also makes it suitable for applications where space is limited. Furthermore, the BC171 is known for its low saturation voltage, which minimizes power dissipation and improves overall circuit efficiency. This is crucial in battery-powered devices and energy-conscious designs.

Typical applications for the BC171 include audio amplifiers, switching circuits, signal conditioning, and small motor control. In audio amplifiers, it can be used in preamplifier stages to boost weak audio signals before they are fed into power amplifier stages. In switching circuits, it can act as a solid-state switch, controlling the flow of current to various loads based on an input signal. In signal conditioning circuits, it can be used to amplify or filter signals to improve their quality. For small motor control, it can drive small DC motors or relays. Its versatility makes it a valuable component in any electronics toolkit.

In summary, the BC171 general-purpose NPN high-gain transistor in the TO-92 package is a reliable and efficient component suitable for a wide range of electronic applications. Its high gain, moderate voltage and current ratings, and easy integration make it an excellent choice for both beginners and experienced electronics professionals. Whether you're building an audio amplifier, a switching circuit, or a signal conditioning system, the BC171 provides the performance and reliability you need. Add the BC171 to your cart today and experience the difference it can make in your electronic projects. Don't miss out on this essential component for your electronics needs!
