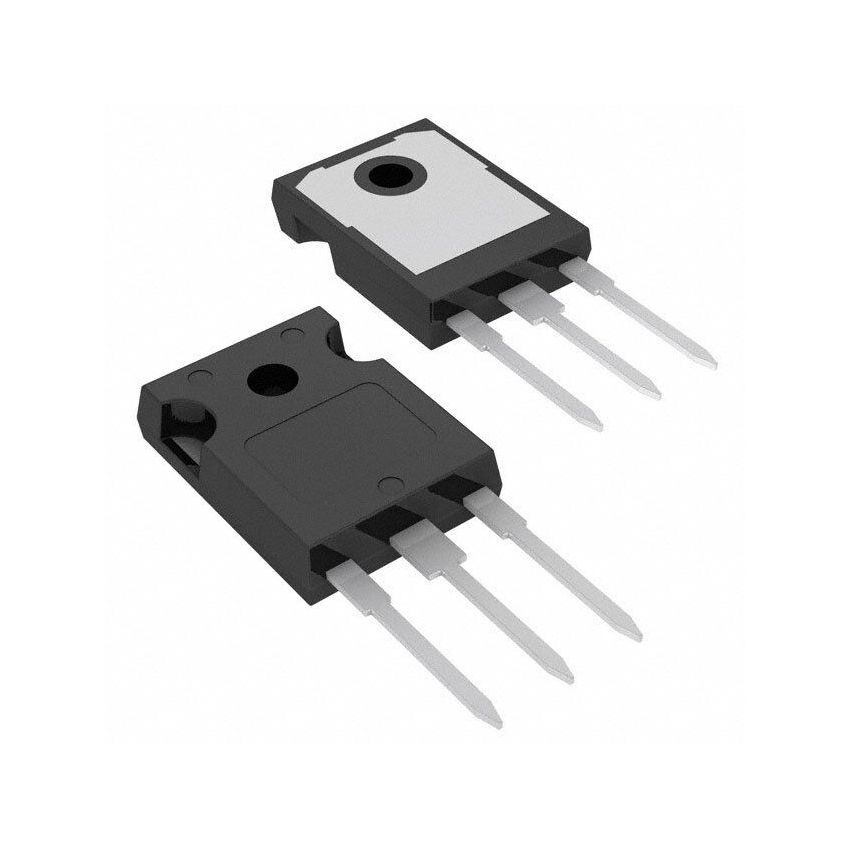

BDV64BG TRANS PNP DARL 100V 10A TO247

The BDV64BG is a high-power PNP Darlington transistor designed for demanding switching and amplification applications. Encased in a robust TO-247 package, this transistor is capable of handling significant power dissipation and high current loads. With a collector-emitter voltage rating of 100V and a continuous collector current of 10A, the BDV64BG is well-suited for motor control, power supplies, and audio amplifiers. The Darlington configuration provides high current gain, allowing for efficient control of large loads with minimal input current. The TO-247 package ensures excellent thermal conductivity, facilitating efficient heat removal and ensuring long-term reliability. This transistor is ideal for use in industrial equipment, automotive applications, and high-power audio systems.

This PNP Darlington transistor leverages advanced silicon technology to achieve high performance and reliability. The Darlington configuration consists of two cascaded bipolar junction transistors (BJTs), providing a high current gain (hFE) that typically ranges from 750 to 2000. This high gain allows for efficient control of large loads with minimal base current. The BDV64BG features a low saturation voltage, minimizing power dissipation and improving overall efficiency. The device's rugged construction and high breakdown voltage provide added protection against voltage transients and overloads. This makes it a dependable choice for applications requiring high reliability and performance.

The BDV64BG finds applications in various power electronics systems, including motor speed controllers, switching regulators, and audio power amplifiers. Its high current gain and low saturation voltage contribute to improved system efficiency and reduced heat generation. The device's robust design and high voltage rating make it suitable for use in harsh industrial environments. The transistor's Darlington configuration simplifies circuit design by reducing the required base drive current. Its ability to handle high surge currents makes it ideal for applications involving inductive loads. The TO-247 package provides excellent thermal conductivity, ensuring reliable operation even at high power levels.

Compared to single BJT transistors, the BDV64BG offers significantly higher current gain, allowing for more efficient control of large loads. Its Darlington configuration reduces the required base drive current, simplifying circuit design and reducing component count. The device's low saturation voltage minimizes power dissipation, improving overall efficiency and reducing heat generation. The BDV64BG's rugged construction and high breakdown voltage provide added protection against voltage transients and overloads. This makes it a dependable choice for applications requiring high reliability and performance. The BDV64BG is a cost-effective solution for power switching and amplification applications, offering a balance of performance, reliability, and ease of use.

In summary, the BDV64BG PNP Darlington transistor is a powerful and reliable component designed for demanding switching and amplification applications. Its high current gain, low saturation voltage, and robust TO-247 package make it an ideal choice for a wide range of applications, including motor control, power supplies, and audio amplifiers. Its rugged construction and ease of use further enhance its appeal. Upgrade your power electronics design with the BDV64BG and experience superior performance and reliability. Order yours today and take your projects to the next level!
