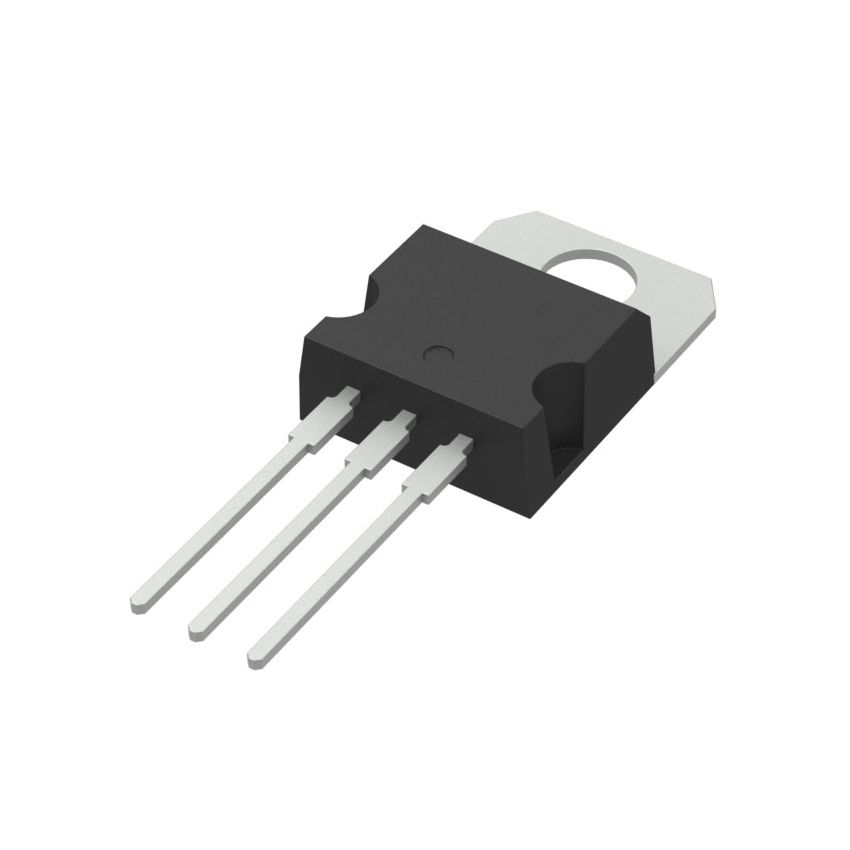

BDX33D + BBDX34D TRANS NPN/PNP DARL 120V 10A TO-220 PAIR

This matched pair of BDX33D (NPN) and BDX34D (PNP) Darlington power transistors is designed for complementary applications requiring robust amplification and switching capabilities. Both transistors are housed in TO-220 packages, offering excellent thermal characteristics and ease of mounting, making them suitable for a wide range of industrial and consumer electronics. With a collector-emitter voltage rating of 120V and a continuous collector current of 10A for each transistor, this pair provides reliable and efficient performance in demanding circuits. Their Darlington configuration ensures high current gain, simplifying the driving circuitry and reducing the load on preceding stages, making them an ideal choice for push-pull amplifiers, motor control, and power supplies.

Key features of this matched pair include the complementary NPN (BDX33D) and PNP (BDX34D) configurations, allowing for symmetrical circuit designs. Both transistors exhibit high DC current gain, typically around 1000 at a collector current of 3A, which allows for efficient amplification of low-level signals. The transistors' low saturation voltage minimizes power loss and improves overall efficiency. The TO-220 packages ensure effective heat dissipation, enabling the transistors to operate at their rated power without overheating. Furthermore, both transistors are designed to withstand high surge currents, enhancing their reliability in demanding applications. Their rugged construction and stable performance make them dependable components for various electronic designs.

This matched pair is commonly used in applications such as push-pull audio amplifiers, where the complementary NPN and PNP transistors provide symmetrical amplification of the audio signal, resulting in high-fidelity sound reproduction. In motor control circuits, they enable efficient and precise control of DC motors. Power supply circuits benefit from their high voltage and current ratings, providing stable and regulated power output. Other applications include complementary relay drivers, solenoid drivers, and general-purpose switching circuits. Their versatility and robust performance make them a popular choice among electronics engineers and hobbyists alike.

When selecting this matched pair, consider their key specifications to ensure they meet the requirements of your application. The 120V collector-emitter voltage rating provides ample headroom for most power supply and motor control applications. The 10A continuous collector current is sufficient for driving many types of loads. The 70W power dissipation rating for each transistor ensures that they can handle significant power levels without exceeding their thermal limits. The high DC current gain simplifies the driving circuitry and reduces the load on preceding stages. These features, combined with their rugged TO-220 packages, make this matched pair a reliable and efficient choice for a wide range of electronic applications.

Upgrade your electronic projects with this BDX33D + BDX34D NPN/PNP Darlington transistor pair. Experience the benefits of high current gain, reliable performance, and easy integration in complementary circuits. Whether you're building an audio amplifier, motor controller, or power supply, this matched pair delivers the power and efficiency you need. Don't compromise on quality – choose this pair for your next project and achieve superior results. Order yours today and take your designs to the next level!
