BDX66C High Power PNP Darlington Transistor

FAQs for Products

1. What are the primary thermal management requirements for the BDX66C High Power PNP Darlington Transistor in high-current applications?

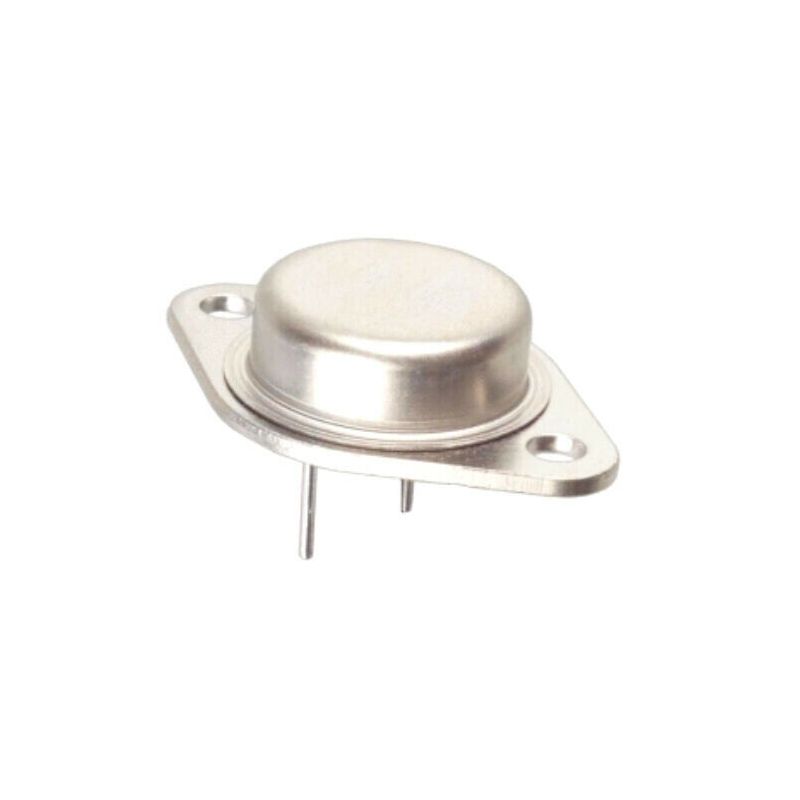

   When integrating the BDX66C High Power PNP Darlington Transistor into your design, thermal management is the most critical factor for ensuring long-term reliability. This component is typically housed in a TO-3 metal can package, designed specifically for superior heat dissipation. Because the BDX66C High Power PNP Darlington Transistor can handle continuous collector currents up to 16A, it generates significant internal heat due to the higher collector-emitter saturation voltage inherent in Darlington configurations. Engineers must utilize a high-quality heat sink with a low thermal resistance (Rthjc) and apply a thin layer of high-conductivity thermal paste to the mounting surface. In industrial environments where ambient temperatures are elevated, forced-air cooling or oversized heat sinks may be necessary to keep the junction temperature below the maximum rating of 200°C. Failure to manage heat effectively can lead to thermal runaway, a condition where increased temperature leads to higher leakage currents, further increasing heat and eventually destroying the BDX66C High Power PNP Darlington Transistor.

2. How does the Darlington configuration of the BDX66C High Power PNP Darlington Transistor affect its gain and saturation voltage compared to standard transistors?

   The BDX66C High Power PNP Darlington Transistor features an internal configuration of two transistors cascaded together. This design provides an exceptionally high DC current gain (hFE), often exceeding 1000 at moderate current levels. This allows the BDX66C High Power PNP Darlington Transistor to control very large loads using only a small base current from low-power microcontrollers or logic circuits. However, the trade-off for this high gain is a higher collector-emitter saturation voltage (VCE(sat)). While a standard power transistor might saturate at 0.5V to 1V, the BDX66C High Power PNP Darlington Transistor typically exhibits a VCE(sat) of approximately 2V to 3V at high currents. For the design engineer, this means the device will dissipate more power (P = VCE(sat) * IC) than a single transistor would under the same load. This characteristic is vital to consider when calculating efficiency and choosing the BDX66C High Power PNP Darlington Transistor for switching regulators or motor drivers where power loss must be minimized.

3. Can the BDX66C High Power PNP Darlington Transistor be used as a complementary pair with the BDX67C for audio or motor control applications?

   Yes, the BDX66C High Power PNP Darlington Transistor is specifically designed to work as the PNP complement to the BDX67C NPN Darlington transistor. This pairing is essential for designing high-fidelity class AB power amplifiers, H-bridge motor controllers, and push-pull output stages. In a push-pull configuration, the BDX66C High Power PNP Darlington Transistor handles the negative half of the waveform while its NPN counterpart handles the positive half. Using matched complementary pairs like the BDX66C High Power PNP Darlington Transistor and BDX67C ensures symmetrical switching and reduces total harmonic distortion (THD) in audio applications. For motor control, this complementary arrangement allows for efficient bidirectional rotation. When sourcing these components for industrial repairs or new designs, it is recommended to use the BDX66C High Power PNP Darlington Transistor from the same manufacturing batch as the NPN complement to ensure the closest possible matching of electrical characteristics like gain and switching speed.

4. What protection circuitry is recommended when using the BDX66C High Power PNP Darlington Transistor to drive inductive loads like solenoids or motors?

   When the BDX66C High Power PNP Darlington Transistor is used to switch inductive loads, such as DC motors, solenoids, or relays, it is susceptible to high-voltage transients generated by back-EMF when the transistor turns off. Although the BDX66C High Power PNP Darlington Transistor is a rugged device with a 100V collector-emitter rating, these inductive spikes can easily exceed this limit, leading to immediate catastrophic failure. To protect the BDX66C High Power PNP Darlington Transistor, a fast-recovery flyback diode must be placed in parallel with the load to provide a safe discharge path for the stored magnetic energy. Additionally, in high-frequency switching applications like PWM motor control, incorporating an RC snubber circuit across the collector and emitter can help dampen oscillations and reduce electromagnetic interference (EMI). Ensuring that the BDX66C High Power PNP Darlington Transistor operates within its Safe Operating Area (SOA) during these switching transitions is crucial for maintaining stability in demanding industrial environments.

5. What are the specific base drive requirements for saturating the BDX66C High Power PNP Darlington Transistor in high-speed switching circuits?

   Driving the BDX66C High Power PNP Darlington Transistor requires a different approach than standard transistors due to its Darlington structure. The base-emitter turn-on voltage (VBE) is higher, typically around 2V to 2.5V, because the input signal must overcome the junction thresholds of two internal transistors. To ensure the BDX66C High Power PNP Darlington Transistor reaches full saturation and minimizes power dissipation, the base current (IB) should be calculated using a forced gain ratio, often 1/250th or 1/500th of the collector current, rather than relying on the maximum hFE. Furthermore, because Darlingtons are inherently slower to turn off due to the stored charge in the internal driver transistor, designers should include a base-emitter resistor to provide a discharge path. When using the BDX66C High Power PNP Darlington Transistor in high-speed switching applications, a speed-up capacitor in parallel with the base resistor can significantly reduce turn-off times, enhancing the overall efficiency of the circuit.

6. How does the Safe Operating Area (SOA) of the BDX66C High Power PNP Darlington Transistor limit its performance in linear power supply designs?

   In linear power supply applications, the BDX66C High Power PNP Darlington Transistor often operates in its active region, where it must simultaneously handle high voltage and high current. This makes the Safe Operating Area (SOA) curve a critical specification for design engineers. The BDX66C High Power PNP Darlington Transistor is limited by its power dissipation capability and the risk of secondary breakdown, a localized overheating phenomenon that can occur even if the total power is within limits. When the BDX66C High Power PNP Darlington Transistor is used as a series pass element, the designer must ensure that the combination of the voltage across the transistor and the current flowing through it stays well within the SOA boundaries provided in the datasheet. This often necessitates derating the BDX66C High Power PNP Darlington Transistor for higher temperatures. For high-voltage linear regulation, using multiple BDX66C High Power PNP Darlington Transistor units in parallel with emitter-ballast resistors can help distribute the load and prevent any single device from exceeding its SOA.

7. Why is the BDX66C High Power PNP Darlington Transistor often preferred over modern MOSFETs in certain industrial electronic repairs?

   While MOSFETs are common in modern electronics, the BDX66C High Power PNP Darlington Transistor remains a preferred choice for many industrial applications and legacy system repairs. One primary reason is the BDX66C High Power PNP Darlington Transistor's robustness against electrostatic discharge (ESD) and its linear gain characteristics, which are often easier to stabilize in older control loops compared to the steep transconductance of MOSFETs. Furthermore, the TO-3 metal package of the BDX66C High Power PNP Darlington Transistor provides superior mechanical durability and a secure bolted connection that is highly resistant to vibration and thermal cycling in heavy machinery. In many existing motor drive and power amplification circuits, the BDX66C High Power PNP Darlington Transistor is a drop-in replacement that maintains the original design's damping and response times. For maintenance professionals, the BDX66C High Power PNP Darlington Transistor offers a reliable, well-documented solution that avoids the complexities of redesigning gate-drive circuitry required when switching to field-effect technologies.
