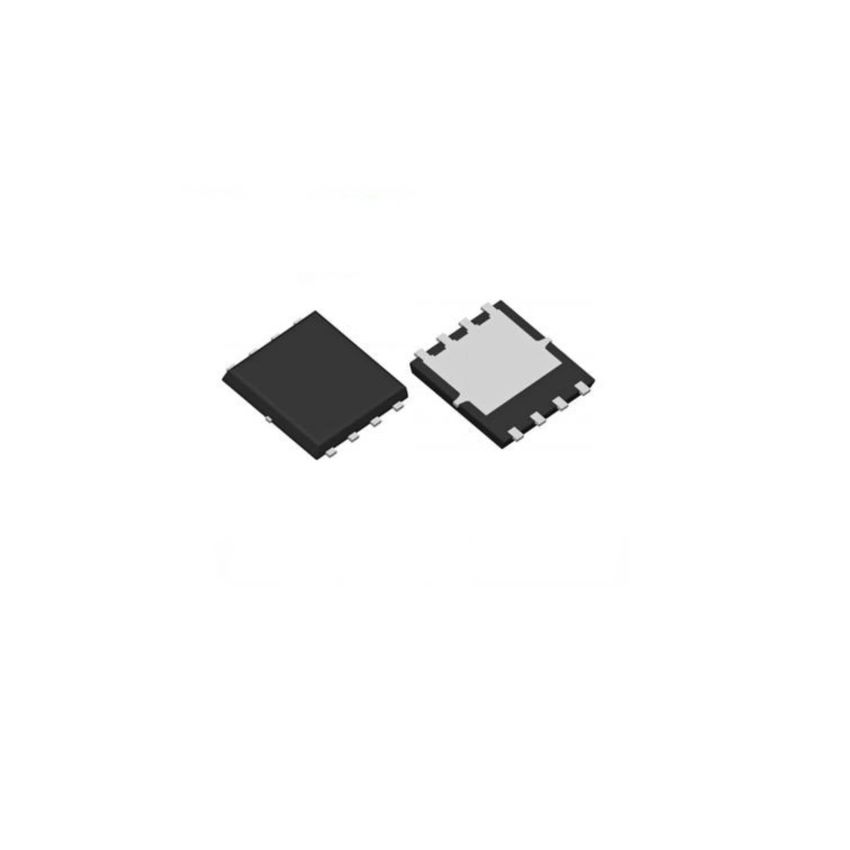

BSC022N03SG 22N03S MOSFET N-Ch TDSON8

The BSC022N03SG is a high-performance N-channel MOSFET designed for efficient power switching and management. This MOSFET features a low on-resistance (RDS(on)) and a high current capability, making it ideal for applications requiring high efficiency and minimal power loss. Encased in a compact TDSON-8 package, the BSC022N03SG is easy to integrate into various circuit designs, offering a space-saving and thermally efficient solution. Its robust construction and reliable performance make it an excellent choice for both industrial and consumer electronics applications. The BSC022N03SG provides efficient and precise control, enhancing the performance and reliability of your electronic systems.

Key specifications of the BSC022N03SG include a drain-source voltage of 30V, ensuring reliable operation in various voltage environments. The continuous drain current of up to 77A allows for controlling high power levels. The TDSON-8 package provides excellent thermal performance, enabling efficient heat dissipation. The BSC022N03SG features a low on-resistance (RDS(on)), minimizing power loss and improving efficiency. This MOSFET is designed to operate over a wide temperature range, ensuring stable performance in diverse operating conditions. Its fast switching speed allows for precise control, making it suitable for demanding applications.

The benefits of using the BSC022N03SG MOSFET are numerous. It provides efficient power switching and management, allowing for precise control of voltage and current levels. Its compact TDSON-8 package saves valuable board space, enabling more compact and efficient designs. The BSC022N03SG enhances system performance by providing fast and reliable switching with minimal power loss. Its low on-resistance (RDS(on)) improves efficiency and reduces heat generation. This MOSFET is a cost-effective solution for a wide range of applications, improving overall system reliability and performance.

Typical applications for the BSC022N03SG MOSFET include synchronous rectification in DC-DC converters, where it is used to improve efficiency and reduce power loss. It is also commonly used in motor control circuits to regulate the speed and torque of electric motors. In power supply circuits, the BSC022N03SG can be used as a switching element to regulate voltage levels. Other applications include battery management systems, load switches, and any application where efficient power switching and management are required. The BSC022N03SG is a versatile component that can enhance the performance and reliability of various electronic systems.

In conclusion, the BSC022N03SG N-channel MOSFET is a reliable and efficient solution for power switching and management in a wide range of applications. Its high current capability, low on-resistance, and compact TDSON-8 package make it suitable for various circuit designs. By using the BSC022N03SG, you can enhance the performance, reliability, and efficiency of your electronic systems. Don't compromise on control and performance – invest in the BSC022N03SG MOSFET today and experience the difference it can make. Order now to ensure your circuits are equipped with the best power switching technology available!
