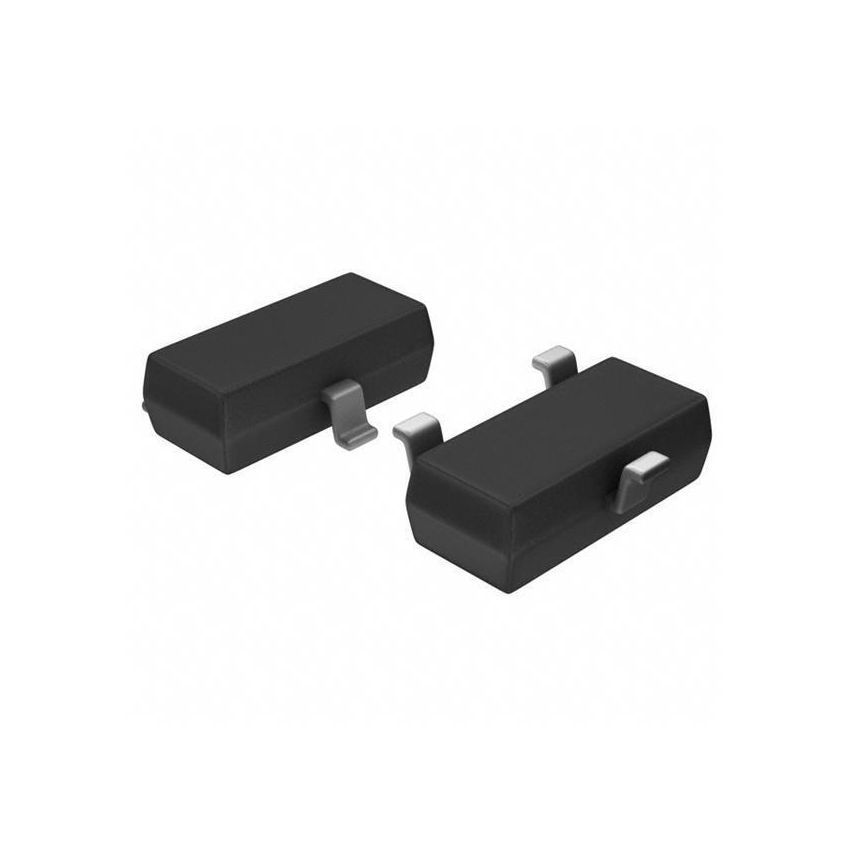

BSR18A TRANS PNP 40V 0.2A SOT-23

The BSR18A is a PNP bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. Encased in a compact SOT-23 package, it's ideal for space-constrained designs. This transistor features a collector-emitter voltage of 40V and a continuous collector current of 0.2A, making it suitable for low to medium power applications. Its high current gain allows for efficient amplification of signals, while its low saturation voltage ensures minimal power loss during switching operations. The BSR18A is a versatile component for signal amplification, switching circuits, and portable device applications.

Key features of the BSR18A include its PNP configuration, allowing for easy implementation in various circuit topologies. The high current gain enables efficient amplification of signals. The low saturation voltage minimizes power dissipation during switching. The compact SOT-23 package saves board space. The transistor is designed for low voltage operation, making it suitable for battery-powered devices. It also features ESD protection, enhancing its robustness and reliability.

The BSR18A finds applications in signal amplification, switching circuits, level shifting, and portable devices. In signal amplification, it can be used to amplify audio signals, sensor signals, and other analog signals. In switching circuits, it can be used to control LEDs, relays, and other loads. In level shifting, it can be used to convert voltage levels between different circuits. In portable devices, its small size and low power consumption make it ideal for battery-powered applications. It is commonly used in smartphones, tablets, and wearable devices.

Compared to other PNP transistors, the BSR18A offers a unique combination of high current gain, low saturation voltage, and compact size. Its high current gain enables efficient amplification of signals, while its low saturation voltage minimizes power dissipation during switching. The compact SOT-23 package saves board space, making it ideal for space-constrained designs. The BSR18A is a reliable and versatile transistor that offers excellent performance at a competitive price.

In conclusion, the BSR18A PNP transistor is a high-performance and versatile component suitable for a wide range of amplification and switching applications. Its high current gain, low saturation voltage, and compact size make it an excellent choice for designers seeking a compact, efficient, and easy-to-use transistor. Whether you're designing signal amplification circuits, switching circuits, or portable devices, the BSR18A can provide the performance and reliability you need. Upgrade your designs today with the BSR18A and experience the difference in performance and efficiency. Order yours now and optimize your electronic designs.
