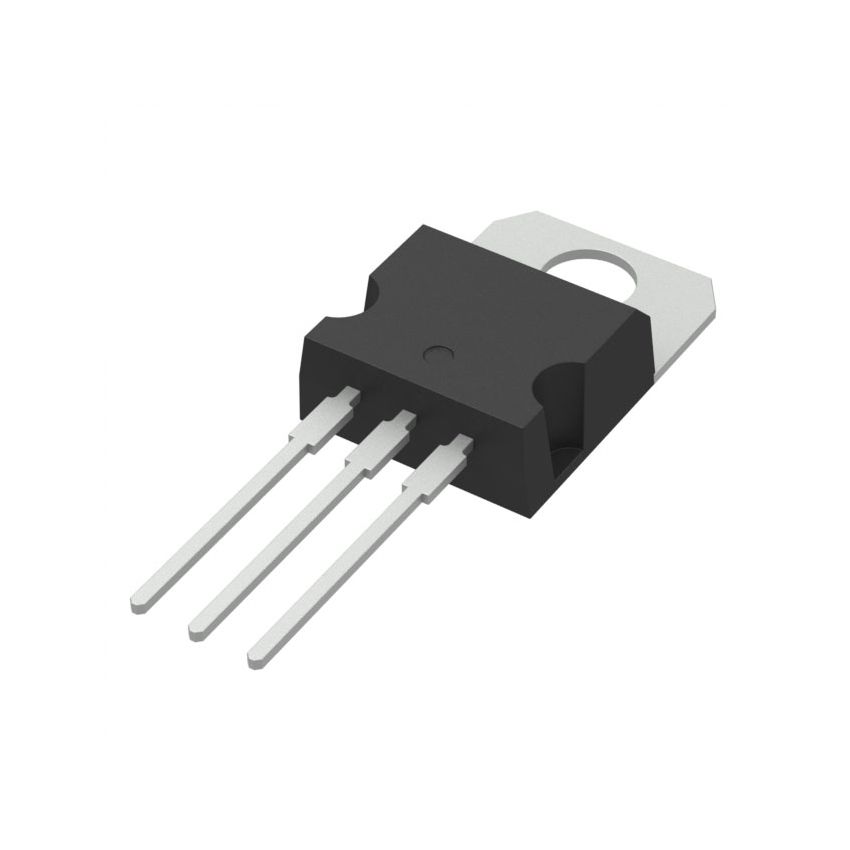

BTA204-800E Triac, 800V, 4A, TO-220AB Package

The BTA204-800E Triac stands as a cornerstone component for efficient and reliable AC power control, offering an impressive blend of high voltage capability and robust current handling. Engineered for demanding applications, this 800V, 4A triac provides precise switching and regulation for resistive, inductive, and capacitive loads, making it an ideal choice for a wide array of household appliances, industrial equipment, and lighting control systems. Its ability to conduct current in both directions of an AC waveform, triggered by a single gate pulse, simplifies circuit design and reduces component count compared to equivalent solutions. When your project requires dependable AC switching with minimal power loss and enhanced thermal stability, the BTA204-800E delivers the performance and longevity essential for modern electronic designs, ensuring smooth and efficient operation across various load types.

Delving into its core specifications, the BTA204-800E boasts a formidable 800V off-state voltage rating, providing a substantial safety margin for applications connected directly to the mains supply, even in regions with higher line voltages. Its 4A on-state RMS current capability allows it to manage significant loads, from motor speed controls to dimmer circuits, without overheating. Encased in the industry-standard TO-220AB package, this triac is designed for easy mounting onto heatsinks, facilitating superior thermal management and ensuring prolonged operational life. The gate trigger voltage (Vgt) of 1.5V and gate trigger current (Igt) of 12mA ensure compatibility with common control logic and microcontrollers, simplifying the driving circuitry. Furthermore, its impressive non-repetitive peak on-state current (Itsm) of 25A provides excellent surge current protection, enhancing the device's robustness against transient overloads.

The operational benefits of integrating the BTA204-800E into your designs are extensive. Its high commutation performance ensures reliable switching, even with challenging inductive loads, minimizing the risk of false triggering or premature device failure. This characteristic is particularly valuable in applications like universal motor control, where the motor's inductance can create significant challenges for standard switching devices. The triac's inherent symmetry in conduction allows for simplified control logic, reducing complexity and cost in your bill of materials. From controlling electric heaters and fans to sophisticated lighting systems and power tools, the BTA204-800E provides a versatile and robust solution for any application requiring precise AC power modulation. Its reliable performance contributes to energy efficiency and extended product lifespan for the end-user, bolstering the overall value proposition.

Manufactured with an emphasis on quality and durability, the BTA204-800E adheres to stringent industry standards, ensuring consistent performance and long-term reliability. Its robust silicon chip construction is optimized for high voltage and current operation, while the TO-220AB package offers excellent thermal characteristics, crucial for dissipating heat generated during switching. This careful engineering translates into a component that can withstand the rigors of continuous operation in demanding environments, offering peace of mind to designers and end-users alike. The device's gate sensitivity is carefully balanced to provide reliable triggering while maintaining a high immunity to electrical noise, preventing unintended switching and enhancing the safety and stability of the controlled system. This commitment to quality ensures that your products will perform reliably for years to come.

The versatility of the BTA204-800E extends across a broad spectrum of applications, making it an invaluable asset for any electronics engineer. It is perfectly suited for phase control circuits used in dimmers for incandescent and LED lighting, as well as for speed control of AC motors found in appliances like blenders, washing machines, and power drills. Its integration capabilities are seamless, allowing it to be driven directly by microcontrollers or through optocouplers for isolation, providing flexibility in system architecture. Whether you're designing intelligent home automation systems, industrial process controls, or advanced power management units, this triac offers the necessary performance and reliability. Its robust design ensures compatibility with various circuit topologies, from basic on/off switching to more complex variable power control schemes, truly embodying adaptability in AC power handling.

Empower your AC power control applications with the exceptional performance and reliability of the BTA204-800E Triac. With its impressive 800V voltage rating, 4A current capability, and robust TO-220AB package, this component is engineered to deliver superior switching efficiency and thermal management for even the most challenging loads. Don't compromise on the quality and stability of your power control designs. Choose the BTA204-800E for its proven durability, precise control, and wide application compatibility. Take the crucial step towards enhancing your product's performance and longevity. Add the BTA204-800E Triac to your project today and experience the confidence that comes with using a premium, high-performance power control solution.
