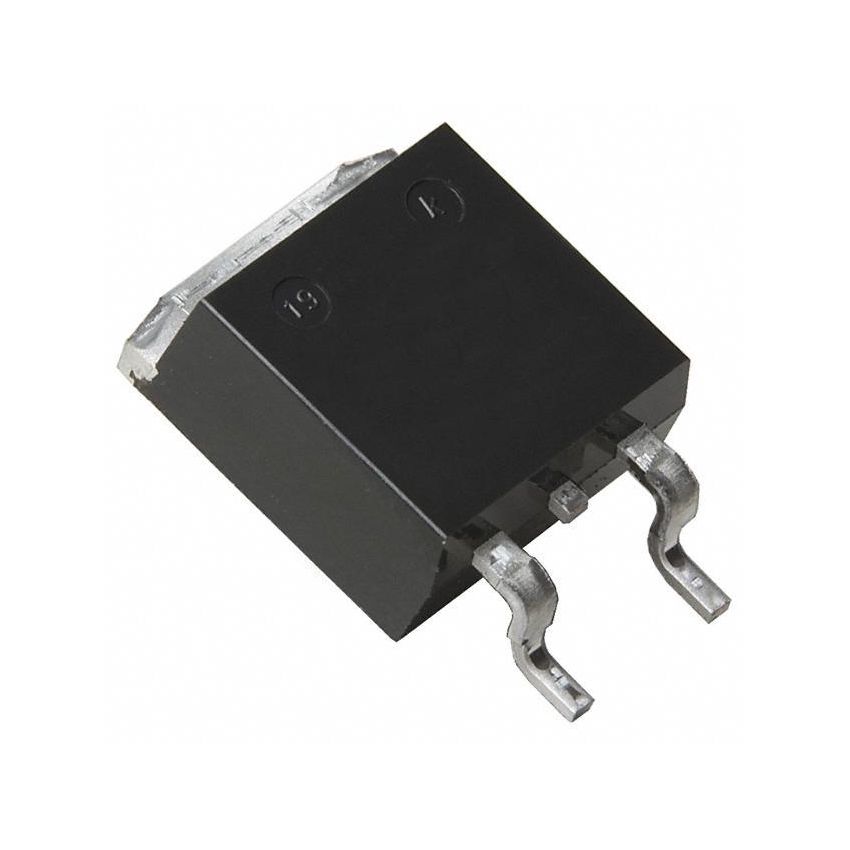

BTA316B-800C.118 Triac; 800V; 16A; D2PAK; Igt: 35mA; Ifsm: 140A; 3Q,Hi-Com

The BTA316B-800C is a high-performance, three-quadrant (3Q) triac designed for the most demanding AC power control applications. As part of the High-Commutation (Hi-Com) family, this device is specifically engineered to provide superior noise immunity and commutation performance, making it ideal for controlling inductive loads without the need for a snubber circuit. This simplifies circuit design, reduces component count, and increases overall system reliability. With a maximum repetitive peak off-state voltage of 800V and a continuous RMS on-state current of 16A, the BTA316B-800C is perfectly suited for a wide range of domestic and industrial appliances, including motor controllers, heating elements, and lighting systems. Its ability to handle high voltages ensures it can operate safely on standard mains supplies worldwide, providing a robust solution for global product deployments.

One of the key technical advantages of the BTA316B-800C is its 3Q technology. Unlike traditional four-quadrant triacs, this 3Q device avoids the fourth quadrant where triggering is less sensitive and more prone to false firing. This design choice significantly improves the dV/dt immunity, allowing the triac to remain in the off-state even when subjected to rapid voltage changes common in electrically noisy environments. With a gate trigger current (Igt) of 35mA, it offers a perfect balance between sensitivity and stability, ensuring reliable turn-on when commanded by a microcontroller or control circuit while remaining resistant to accidental triggering. This makes it an excellent choice for modern smart home devices and industrial automation modules where precise power control is essential for performance and safety.

The BTA316B-800C is housed in the D2PAK (SOT404) surface-mount package, which is designed for high-power applications that require efficient thermal management in a compact footprint. The D2PAK format allows for automated assembly, reducing manufacturing costs and improving consistency across production runs. Its large thermal pad provides an excellent path for heat dissipation into the PCB, which is critical when the triac is conducting its full 16A rated current. For applications that experience high inrush currents, such as the startup of electric motors or large incandescent lamp banks, the BTA316B-800C features a non-repetitive peak on-state current (Ifsm) of 140A. This high surge capacity ensures that the triac can survive transient events that would destroy lesser components, providing a significant boost to the overall durability of your product.

In the realm of motor control, the BTA316B-800C shines by providing smooth, phase-controlled power delivery. Its high commutation capability means it can successfully turn off even when controlling highly inductive loads where the current and voltage are out of phase. This is a common challenge for standard triacs, which often require complex snubber networks to prevent "latching on" and losing control. By using the BTA316B-800C, engineers can design more compact and efficient motor drives for vacuum cleaners, washing machines, and power tools. The triac's high junction temperature rating further enhances its suitability for these types of high-load applications, ensuring that it remains operational even in the hot, confined spaces often found inside modern appliance housings.

Reliability is further reinforced by the triac's construction, which utilizes a passivated glass chip for long-term stability and high blocking voltage capability. This ensures that the BTA316B-800C maintains its electrical characteristics over thousands of hours of operation, reducing the likelihood of field failures. Whether you are designing a digital dimmer switch, a commercial oven controller, or a heavy-duty industrial relay replacement, this triac provides the professional-grade performance required to meet modern safety and efficiency standards. Its compatibility with surface-mount technology and its rugged electrical specs make it a favorite among design engineers who need a reliable, high-capacity switching solution that doesn't compromise on space or performance.

In summary, the BTA316B-800C High-Commutation Triac is a premium choice for any AC power switching application. Its 800V and 16A ratings, combined with advanced 3Q Hi-Com technology, provide a level of performance and reliability that standard triacs simply cannot match. By eliminating the need for snubber circuits and providing high immunity to electrical noise, it allows for cleaner, more efficient, and more reliable electronic designs. If you are looking to enhance the power management capabilities of your next project, the BTA316B-800C offers the perfect blend of high-end specifications and practical, easy-to-implement design features. Choose the BTA316B-800C for your next manufacturing run and ensure your products are powered by the best in semiconductor technology. Order today to secure this high-performance component for your upcoming builds.
