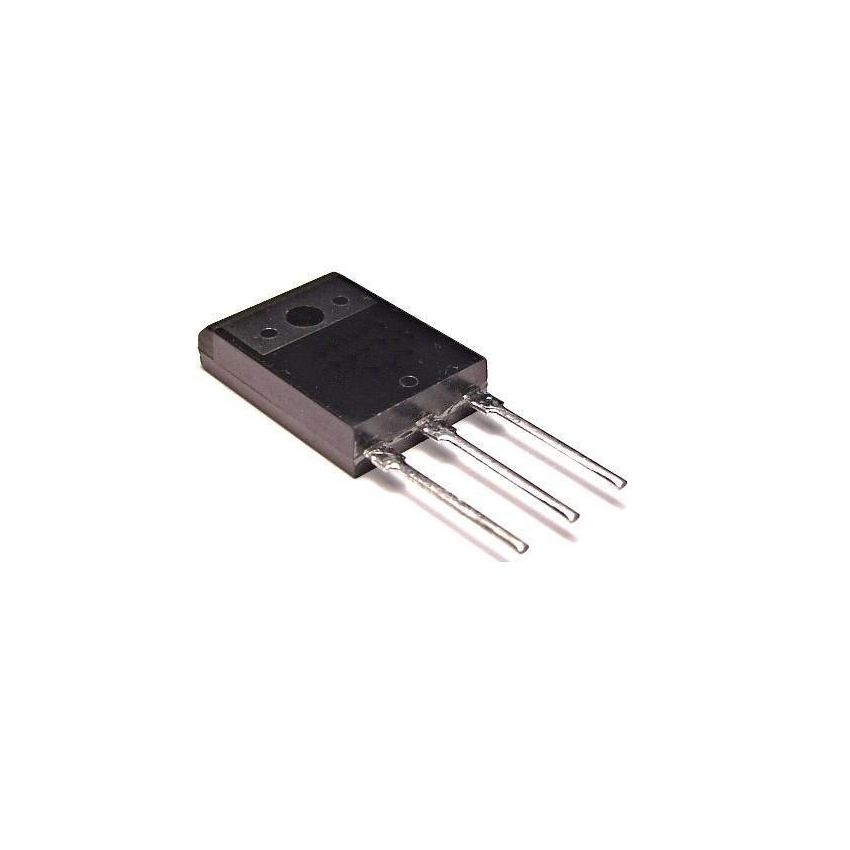

BU2520DF TRANSISTOR SI-N+DI 1500V 10A 45W

The BU2520DF is a high-voltage, high-current NPN transistor designed for demanding applications such as CRT displays, switch-mode power supplies, and high-voltage inverters. This silicon transistor features a built-in damper diode, enhancing its performance and reliability in resonant switching circuits. Housed in a robust package, the BU2520DF offers excellent thermal characteristics, ensuring stable operation even under high power dissipation. Its high breakdown voltage and fast switching speed make it an ideal choice for applications requiring efficient and reliable high-voltage switching. The BU2520DF is a versatile component for both industrial and consumer electronics.

Key specifications of the BU2520DF include a collector-emitter voltage (VCEO) of 1500V, a collector current (IC) of 10A, and a collector power dissipation (PC) of 45W. The transistor's saturation voltage is low, minimizing power losses and improving efficiency. The built-in damper diode provides fast reverse recovery, reducing switching losses and improving overall performance. The BU2520DF is designed for high-speed switching, making it suitable for high-frequency applications. Its rugged construction ensures long-term reliability even under harsh operating conditions. The transistor is also lead-free, adhering to environmental standards.

The benefits of using the BU2520DF are numerous. Its high breakdown voltage allows it to handle high-voltage applications with ease. The high collector current capability enables it to drive demanding loads. The low saturation voltage reduces conduction losses, leading to higher efficiency. The built-in damper diode improves switching performance and reduces losses. The fast switching speed minimizes switching losses, further improving efficiency. The robust package provides excellent thermal performance, ensuring reliable operation even at high power levels. The BU2520DF is a cost-effective solution for high-voltage switching applications, offering a balance of performance, reliability, and value.

Typical applications for the BU2520DF include horizontal deflection circuits in CRT displays, switch-mode power supplies (SMPS), high-voltage inverters, and electronic ballasts. In CRT displays, it drives the horizontal deflection coil to scan the electron beam across the screen. In SMPS applications, it can be used as the main switching element to provide efficient power conversion. In high-voltage inverters, it generates high-voltage AC power from DC sources. In electronic ballasts, it drives fluorescent lamps with high efficiency. The BU2520DF is also suitable for use in welding equipment, induction heating systems, and high-voltage pulse generators.

Upgrade your high-voltage switching circuits with the BU2520DF TRANSISTOR SI-N+DI 1500V 10A 45W and experience enhanced performance, reliability, and efficiency. Its robust design and excellent specifications make it an ideal choice for a wide range of applications. Don't compromise on quality – choose the BU2520DF for your next project. Order now and take advantage of our competitive pricing and fast shipping. Invest in the BU2520DF today and ensure your high-voltage electronics operate at their peak potential. Experience the difference a high-quality transistor can make. Add to cart now!
