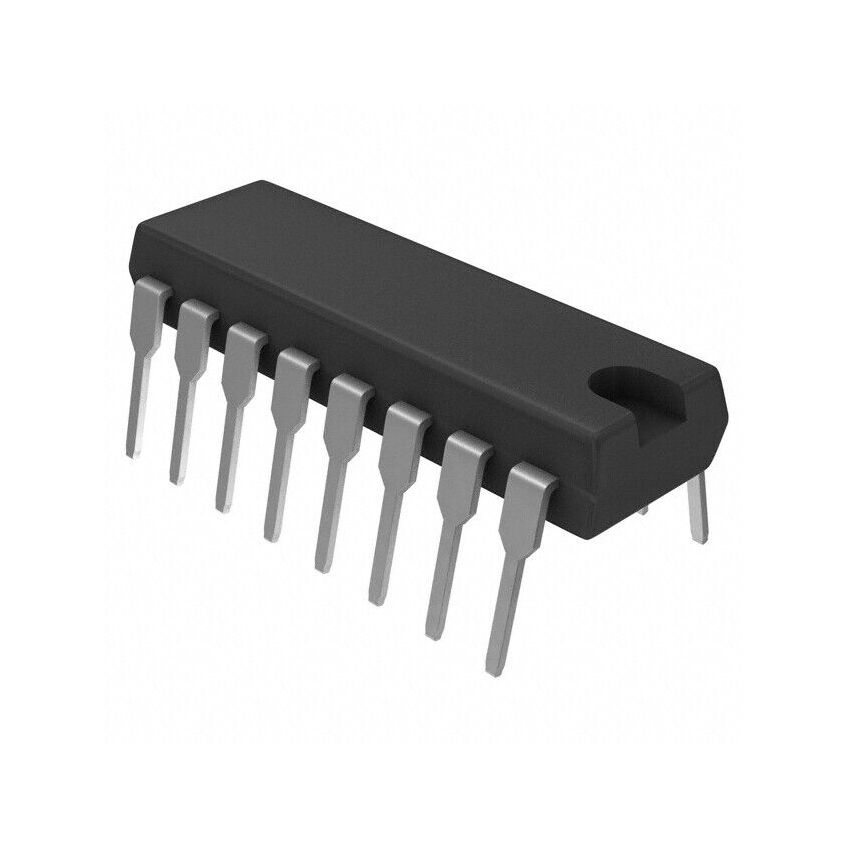

CD74AC139E IC DUAL 2-4 DECODER/DEMUX 16-DIP

The CD74AC139E is a high-speed CMOS logic integrated circuit featuring a dual 2-to-4 line decoder/demultiplexer. Encased in a 16-DIP (Dual In-Line Package), this IC offers a convenient and reliable solution for address decoding, memory chip selection, and data routing applications. Its advanced CMOS technology ensures low power consumption and high noise immunity, making it suitable for a wide range of digital systems. The CD74AC139E provides two independent 2-to-4 decoders in a single package, saving valuable board space and reducing component count. This IC is ideal for both prototyping and production environments, offering ease of use and consistent performance.

This dual decoder/demultiplexer is commonly used in memory systems, address decoding circuits, and data distribution networks. Its key features include high-speed operation, low propagation delay, and wide operating voltage range. The CD74AC139E can drive up to 10 LSTTL loads, making it compatible with a variety of logic families. Its enable inputs allow for easy cascading, enabling the creation of larger decoder/demultiplexer circuits. The 16-DIP package simplifies the soldering process, making it suitable for breadboarding and through-hole PCB designs. The CD74AC139E is also a popular choice for educational purposes, allowing students to learn about digital logic and decoder circuits.

Understanding the specifications of the CD74AC139E is crucial for successful implementation. This IC operates within a voltage range of 2V to 6V and has defined input and output logic levels. Consulting the datasheet is highly recommended to ensure proper biasing and signal conditioning. The CD74AC139E's internal circuitry is designed to minimize propagation delay and provide a clean output signal. Its low power consumption contributes to energy efficiency in battery-powered devices. The reliability of the CD74AC139E is further enhanced by its built-in protection mechanisms against electrostatic discharge (ESD) and latch-up.

When incorporating the CD74AC139E into your designs, consider its pin configuration and the recommended operating conditions. Proper decoupling capacitors should be used to minimize noise and ensure stable operation. The CD74AC139E can be used to select one of four outputs based on a two-bit input address. Its enable inputs allow for easy control and cascading. The versatility of the CD74AC139E makes it a valuable addition to any digital electronics toolkit. The dual decoder/demultiplexer functionality provides added flexibility, allowing you to implement complex logic functions with ease. Explore the possibilities and unlock the potential of the CD74AC139E in your digital designs.

Don't miss out on this opportunity to acquire a high-quality and versatile decoder/demultiplexer IC. The CD74AC139E in a 16-DIP package is an excellent choice for a wide range of digital logic applications. Its ease of use, robust performance, and low power consumption make it a must-have for any electronics enthusiast or professional. Order your CD74AC139E integrated circuit today and take your digital projects to the next level. Experience the quality and reliability of CMOS logic, and enjoy the benefits of a dual decoder/demultiplexer in a single package. Add to cart now and start building!
