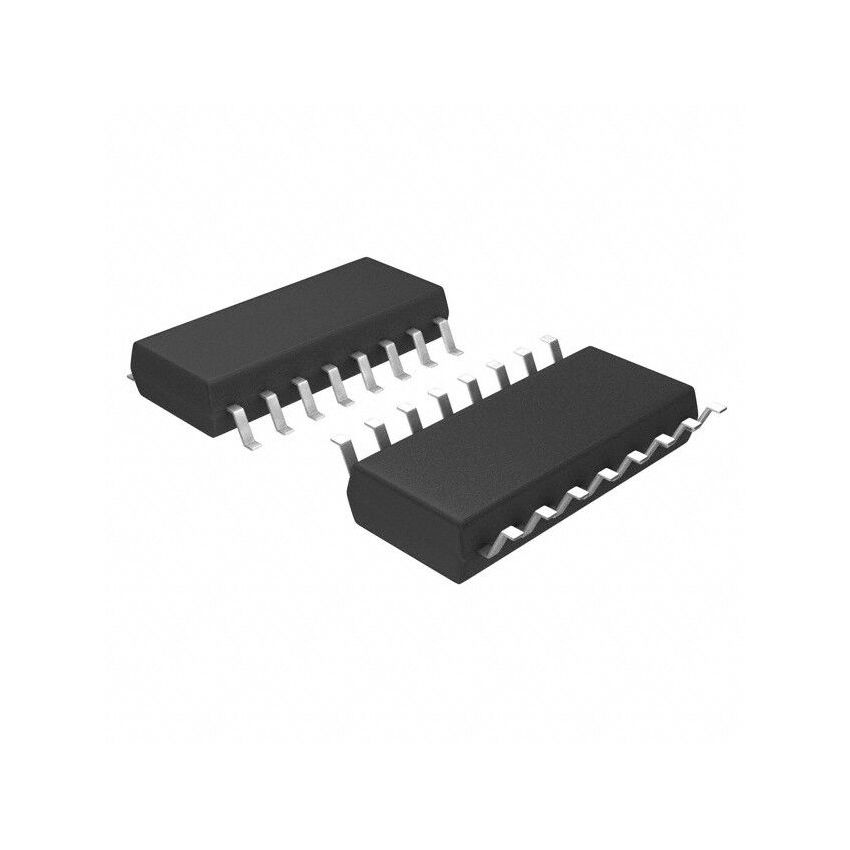

CD74HCT390M IC DUAL DECADE RIP CONTR 16-SOIC

The CD74HCT390M is a high-speed CMOS dual decade ripple counter integrated circuit, designed for a wide range of digital counting and frequency division applications. Encased in a compact 16-SOIC (Small Outline Integrated Circuit) package, this IC offers a space-saving and cost-effective solution for implementing complex counting functions in digital systems. Its dual decade configuration allows for independent or cascaded counting operations, providing flexibility in circuit design. The 'HCT' designation indicates that this IC is fabricated using high-speed CMOS technology, offering low power consumption and high noise immunity. This makes it suitable for use in battery-powered devices and noisy industrial environments. The CD74HCT390M consists of two independent decade counters, each capable of counting from 0 to 9.

Each counter features a separate clock input, reset input, and output pins, allowing for independent control and monitoring. The ripple carry output (RCO) of each counter can be cascaded to the clock input of the next counter, enabling the implementation of multi-decade counters. The IC also features a master reset input, which resets both counters simultaneously. This is useful for synchronizing the counters or for initializing the counting sequence. The 16-SOIC package is designed for surface mounting, simplifying the manufacturing process and reducing board space requirements. The package also offers excellent thermal performance, allowing the IC to operate at high clock frequencies without overheating.

In frequency division applications, the CD74HCT390M can be used to divide an input frequency by a factor of 10, 100, or any other multiple of 10. This is useful for generating lower frequency signals from a higher frequency source. In digital clock circuits, the CD74HCT390M can be used to count seconds, minutes, and hours. Its dual decade configuration allows for the implementation of a complete timekeeping system with minimal external components. In industrial control systems, the CD74HCT390M can be used to count events, measure time intervals, or control the operation of machinery. Its high noise immunity and low power consumption make it suitable for use in harsh industrial environments.

The CD74HCT390M is a versatile and reliable integrated circuit that offers a cost-effective solution for a wide range of digital counting and frequency division applications. Its high-speed CMOS technology, dual decade configuration, and compact 16-SOIC package make it an ideal choice for modern digital systems. Upgrade your digital circuits with the CD74HCT390M IC today. Order now and experience the difference in performance and reliability. Don't compromise on quality – choose the CD74HCT390M for your next project.
