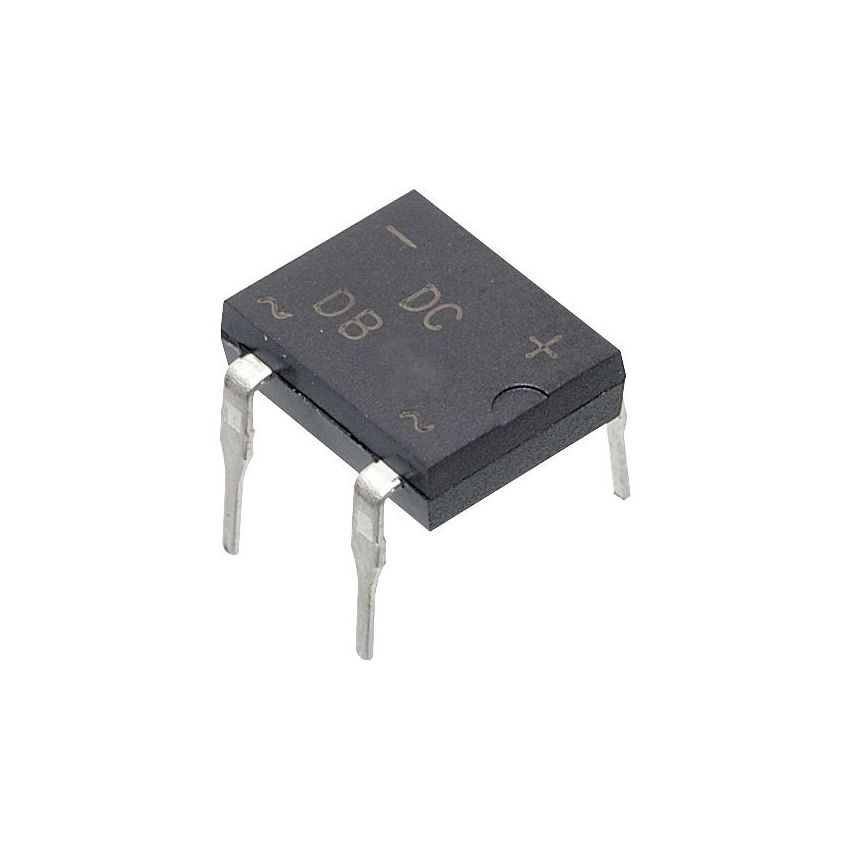

DB102 BRIDE RECTIFIER DIP-4

The DB102 Bridge Rectifier is a compact and efficient component designed to convert alternating current (AC) to direct current (DC). Encased in a DIP-4 (Dual In-line Package) format, this rectifier is widely used in power supplies, adapters, and various electronic circuits where a stable DC voltage is required. Its primary function is to rectify the AC input, ensuring that the current flows in only one direction, thereby providing a clean and consistent DC output. The DB102 is known for its reliability, ease of integration, and cost-effectiveness, making it a popular choice among electronic designers and hobbyists.

Key features of the DB102 include its high surge current capability, which allows it to withstand momentary spikes in current without damage. The DIP-4 package simplifies mounting and soldering onto printed circuit boards (PCBs), making it easy to incorporate into various circuit designs. The DB102 is also characterized by its low forward voltage drop, which minimizes power loss during rectification, improving overall efficiency. Its robust construction and stable performance make it a dependable choice for applications where a reliable DC power source is essential. The rectifier's compact size further enhances its versatility, allowing it to be used in space-constrained applications.

From a technical standpoint, the DB102 consists of four diodes arranged in a bridge configuration. This configuration allows the rectifier to convert both the positive and negative halves of the AC waveform into a positive DC voltage. The diodes are carefully selected to ensure low forward voltage drop and high reverse voltage blocking capability. The DB102 is designed to operate within specified voltage and current limits, which must be observed to prevent damage to the rectifier. Its specifications include maximum forward current, peak reverse voltage, and operating temperature range. The DIP-4 package provides a secure and reliable connection to the circuit board.

In practical applications, the DB102 is commonly used in power supplies for electronic devices, such as chargers, adapters, and voltage regulators. It is also found in industrial control systems, where it provides a stable DC power source for various components and circuits. Other applications include LED lighting systems, motor control circuits, and battery charging systems. The DB102's ease of use and availability make it a popular choice for a wide range of electronic projects. Its robust design ensures long-term performance and minimal maintenance requirements. The bridge rectifier configuration provides efficient and reliable AC-to-DC conversion.

If you're looking for a reliable and efficient bridge rectifier for your power supply or electronic circuit, the DB102 is an excellent choice. Its compact size, high surge current capability, and ease of use make it suitable for a wide range of applications. Don't miss out on the opportunity to enhance your circuits with this dependable component. Order your DB102 Bridge Rectifier today and experience stable and efficient AC-to-DC conversion!
