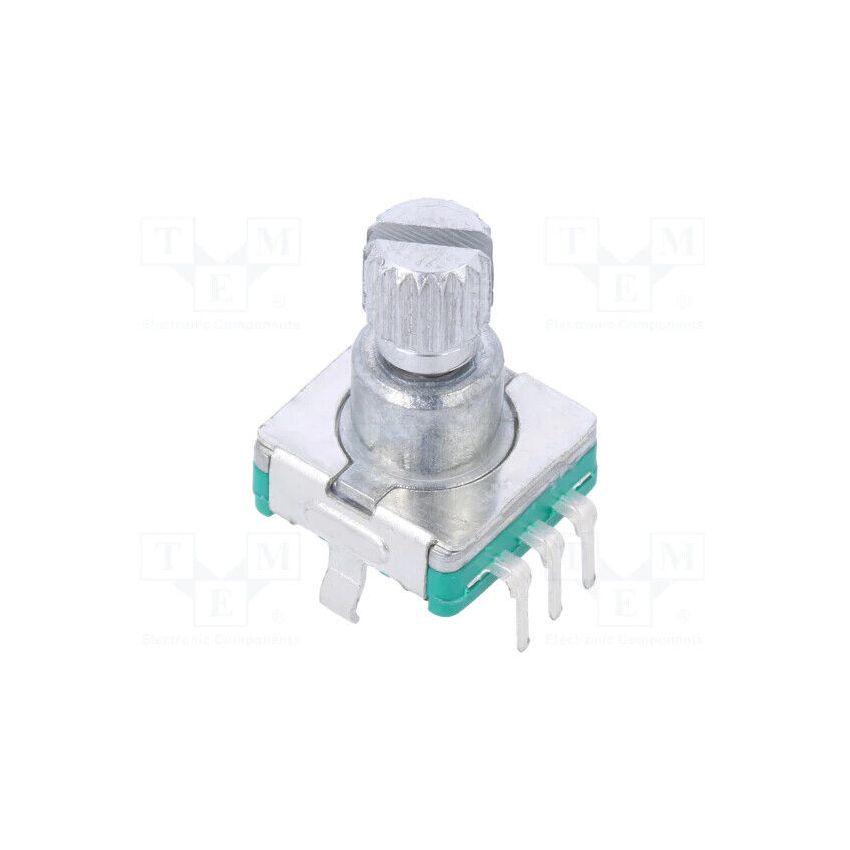

EC11E12-15P30C-SW Encoder: incremental; THT; 15imp/revol; Pos: 30; two phase A a

The EC11E12-15P30C-SW is a versatile incremental rotary encoder designed for precise rotational input in a variety of applications. This through-hole (THT) encoder provides 15 detents (impulses) per revolution, offering a tactile and accurate user experience. With 30 distinct positions and a two-phase A and B output, it allows for reliable detection of both direction and speed of rotation. The integrated push-button switch adds an extra layer of functionality, enabling selection or control options directly from the encoder. The EC11E12-15P30C-SW is built for durability and consistent performance, making it a dependable choice for user interface designs.

This incremental encoder is ideal for applications requiring precise rotational control, such as volume adjustments, menu navigation, and parameter setting. The 15 impulses per revolution provide a good balance between resolution and ease of use, allowing for fine-grained adjustments while maintaining a clear tactile feedback. The two-phase output enables quadrature decoding, which is essential for determining the direction of rotation and mitigating the effects of noise. The through-hole mounting style ensures a secure and stable connection to the printed circuit board (PCB), making it suitable for robust applications.

The integrated push-button switch enhances the encoder's functionality, allowing it to serve as both a rotational input device and a selection button. This combination simplifies the user interface and reduces the number of components required. The switch can be used for various purposes, such as selecting menu items, confirming settings, or triggering actions. The EC11E12-15P30C-SW's compact design and versatile features make it a valuable addition to any project requiring precise rotational input and control. The encoder is designed for easy integration into existing circuits.

Typical applications for the EC11E12-15P30C-SW include audio equipment, consumer electronics, industrial control panels, and automotive interfaces. Its precise rotational control and integrated switch make it well-suited for applications requiring a combination of rotational input and selection capabilities. The encoder's robust design and reliable performance ensure consistent operation in various environments. Its through-hole mounting style provides a secure and stable connection, making it ideal for applications where durability is essential. The EC11E12-15P30C-SW is a versatile and dependable choice for rotational input and control.

Enhance your user interface designs with the EC11E12-15P30C-SW incremental encoder. Its precise rotational control, integrated switch, and robust design make it the ideal choice for a wide range of applications. Order yours today and experience the difference that a high-quality encoder can make. Improve your system's usability and reliability with the EC11E12-15P30C-SW. Don't wait, purchase now and bring precision to your projects!
