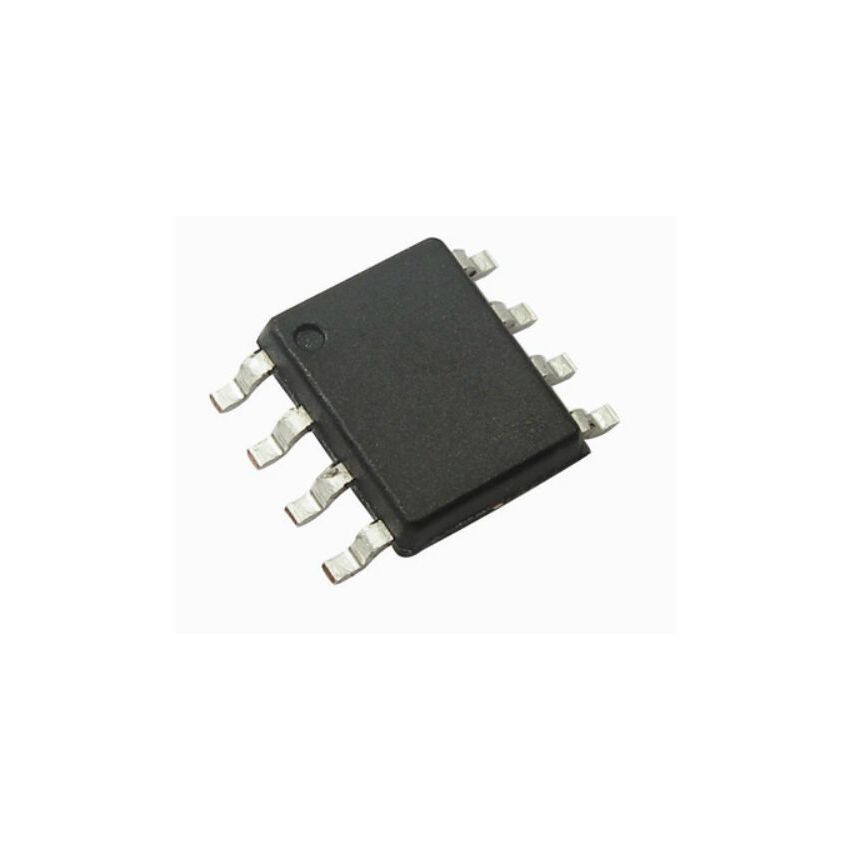

FAN6754MRMY SMD INTEGRATED CIRCUIT SOP-8

The FAN6754MRMY is a highly integrated and efficient Quasi-Resonant (QR) flyback controller designed for offline power supplies. This surface-mount device (SMD) integrated circuit, housed in a compact SOP-8 (Small Outline Package) package, offers a cost-effective and high-performance solution for various power conversion applications. Its primary function is to control the switching of a power MOSFET in a flyback converter, providing regulated output voltage and current while minimizing power losses. The FAN6754MRMY is known for its low standby power consumption, high efficiency, and robust protection features, making it suitable for energy-efficient power supplies in consumer electronics, industrial equipment, and LED lighting systems. This controller is a crucial component in modern power management, enabling efficient and reliable operation of electronic devices.

This QR flyback controller operates by switching the power MOSFET at the valley of the drain-source voltage waveform, minimizing switching losses and improving overall efficiency. The FAN6754MRMY features a built-in soft-start function, reducing stress on the components during startup. Its low standby power consumption meets stringent energy efficiency standards, such as Energy Star and ErP. The device also incorporates comprehensive protection features, including over-voltage protection, over-current protection, and over-temperature protection, safeguarding the power supply from damage. Its robust design and advanced features contribute to its reliability and longevity, making it a preferred choice for demanding applications. Engineers and designers appreciate the FAN6754MRMY for its ease of integration, performance, and cost-effectiveness, making it a staple in power supply solutions.

The FAN6754MRMY is widely used in applications such as AC-DC adapters, battery chargers, LED lighting drivers, and auxiliary power supplies. In AC-DC adapters, it converts the AC mains voltage to a regulated DC voltage for powering electronic devices. In battery chargers, it provides a controlled charging current and voltage to recharge batteries efficiently. In LED lighting drivers, it regulates the current flowing through the LEDs, ensuring consistent brightness and long lifespan. In auxiliary power supplies, it provides a low-power supply for standby functions in electronic devices. Its versatility and efficiency make it a valuable tool for engineers and designers across various disciplines.

Key specifications of the FAN6754MRMY include a wide input voltage range, a low standby power consumption, and a high switching frequency. The SOP-8 package provides excellent thermal performance and facilitates easy soldering and assembly. The device is also compliant with industry standards, ensuring compatibility with other components and systems. Its integrated protection features simplify system design and enhance reliability. The FAN6754MRMY is a reliable and efficient solution for controlling flyback converters, making it an essential component in modern power supplies.

In summary, the FAN6754MRMY SMD integrated circuit is a high-performance QR flyback controller that offers a compact, low-power, and cost-effective solution for various power supply applications. Its advanced features, robust design, and wide range of applications make it an ideal choice for AC-DC adapters, battery chargers, and LED lighting drivers. Upgrade your power supply system with the FAN6754MRMY and experience enhanced performance and reliability. Order yours today to ensure seamless integration and superior efficiency in your power electronic designs.
