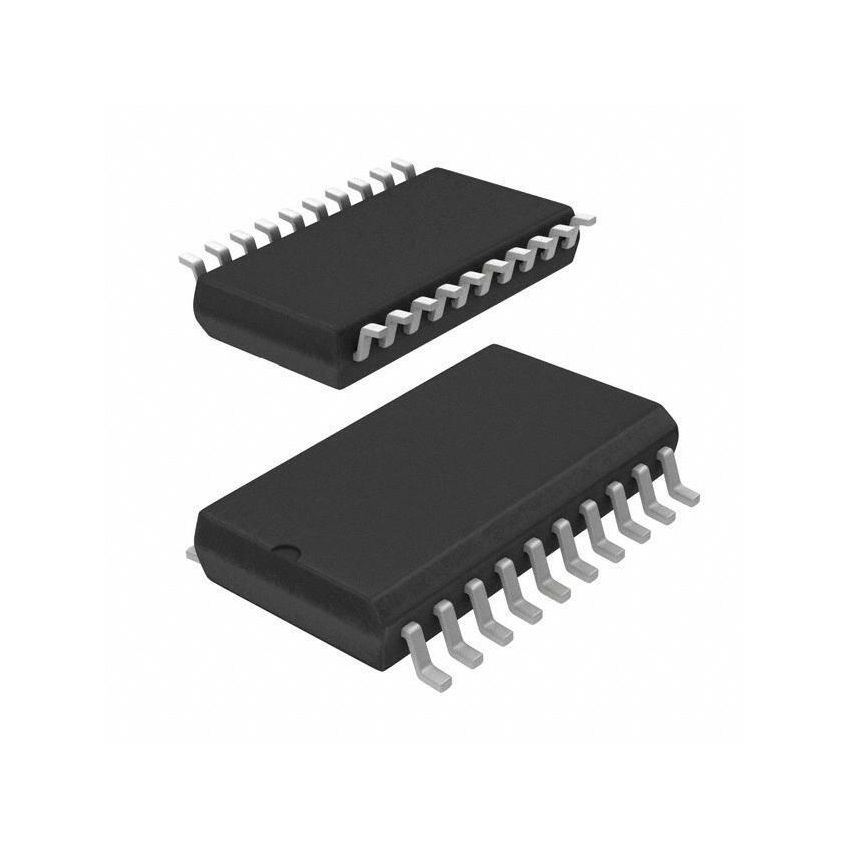

FAN7314 LCD Backlight Inverter Drive SOP-20

The FAN7314 is a highly integrated LCD backlight inverter drive IC designed to efficiently power cold cathode fluorescent lamps (CCFLs) used in LCD panels. Housed in a compact SOP-20 package, this device simplifies the design of LCD backlight systems by incorporating essential functions such as PWM dimming control, fault detection, and protection features. Its high efficiency and robust performance make it an ideal choice for a wide range of LCD applications, including notebook computers, LCD monitors, and LCD TVs. The FAN7314 offers a cost-effective and reliable solution for driving CCFL backlights.

This inverter drive IC utilizes a push-pull topology to generate the high-voltage AC waveform required to ignite and sustain the CCFL. The integrated PWM dimming control allows for precise adjustment of the backlight brightness, enabling dynamic contrast ratio enhancement and power saving. The FAN7314 also incorporates a soft-start function to minimize stress on the CCFL during startup, extending its lifespan. Its advanced control circuitry ensures stable and flicker-free operation, providing a comfortable viewing experience for the end-user. The FAN7314 is designed for optimal performance and reliability.

The FAN7314 incorporates comprehensive protection features to safeguard the CCFL and the inverter circuit. These features include over-voltage protection (OVP), over-current protection (OCP), short-circuit protection (SCP), and open-lamp protection (OLP). These protection mechanisms prevent damage to the CCFL and the inverter circuit in the event of a fault condition, ensuring the system's reliability and longevity. The OVP feature protects the CCFL from excessive voltage, while the OCP and SCP features prevent damage from excessive current flow. The OLP feature detects an open-lamp condition and shuts down the inverter to prevent arcing.

The SOP-20 package of the FAN7314 allows for easy integration into compact LCD backlight systems. Its minimal external component count simplifies the design process and reduces the overall system cost. The device operates over a wide input voltage range, making it compatible with various power supply configurations. The FAN7314 is designed to meet the stringent requirements of modern LCD applications, providing high efficiency, reliability, and performance. Its compact size and integrated features make it an ideal choice for space-constrained designs.

If you're looking for a reliable and efficient LCD backlight inverter drive IC, the FAN7314 is an excellent choice. Its integrated features, comprehensive protection mechanisms, and compact SOP-20 package make it easy to design and implement into your LCD backlight system. Don't compromise on the quality and performance of your LCD display. Order your FAN7314 today and experience the difference in backlight performance and reliability!
