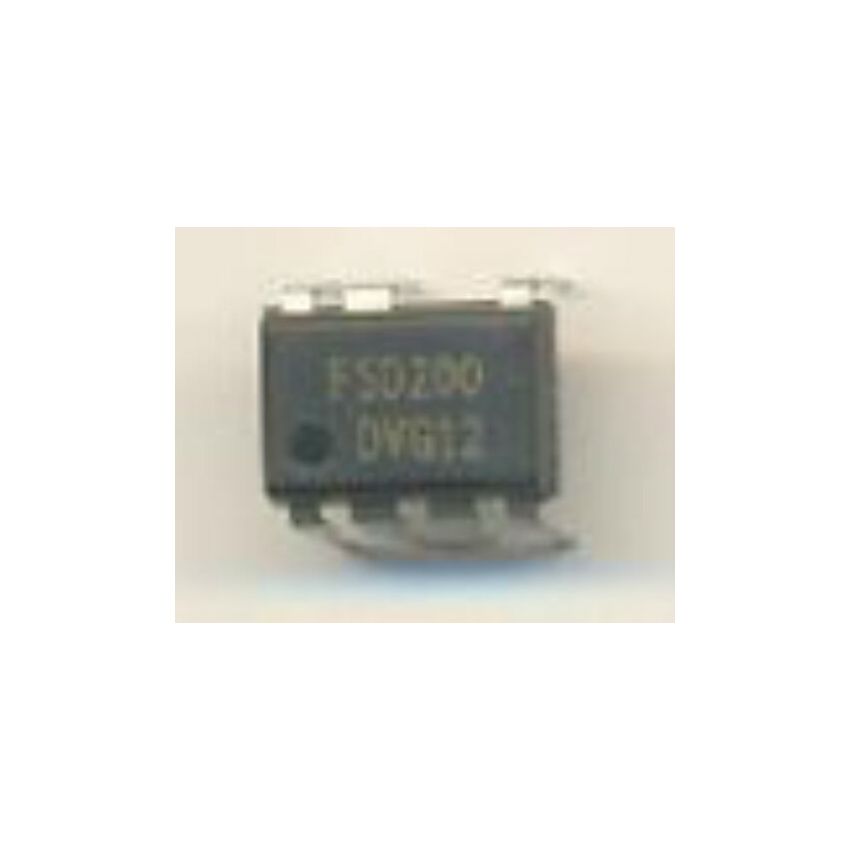

FSD200 SMPS Power Switch

FAQs for Products

1. What are the primary advantages of using the FSD200 SMPS Power Switch in new power supply designs?

   The FSD200 SMPS Power Switch offers significant advantages for modern power supply designs by integrating a high-voltage power MOSFET with a current-mode PWM controller. This integration drastically reduces the Bill of Materials (BOM) count, leading to a more compact and cost-effective solution. Its optimized internal circuitry is designed for high efficiency across various load conditions, which is crucial for meeting stringent energy regulations. Designers benefit from simplified circuit layouts, reduced EMI concerns due to integrated control, and enhanced reliability thanks to its robust feature set. Utilizing the FSD200 SMPS Power Switch allows for faster design cycles and a smaller PCB footprint, making it ideal for a wide range of applications from consumer electronics to industrial power supplies requiring efficient and reliable AC-DC conversion.

2. What protection features are integrated into the FSD200 SMPS Power Switch to ensure system reliability and safety?

   The FSD200 SMPS Power Switch is equipped with a comprehensive suite of protection features to safeguard the power supply and connected loads. These typically include Over-Current Protection (OCP) to prevent damage from excessive load current, Over-Voltage Protection (OVP) to protect against output voltage surges, and Over-Temperature Protection (OTP) which shuts down the device if the junction temperature exceeds a safe limit. Additionally, it often incorporates Under-Voltage Lockout (UVLO) to ensure stable operation by preventing the IC from operating at insufficient supply voltages, and sometimes features like internal soft-start. These integrated protections enhance the overall robustness and longevity of systems using the FSD200 SMPS Power Switch, making it a reliable choice for critical applications where safety and operational integrity are paramount.

3. How does the FSD200 SMPS Power Switch contribute to achieving low standby power consumption in electronic devices?

   The FSD200 SMPS Power Switch is engineered with features specifically designed to minimize standby power consumption, a critical requirement for energy-efficient devices and compliance with standards like Energy Star or ErP. It typically employs burst mode operation or a similar 'green mode' function under light-load or no-load conditions. In burst mode, the FSD200 SMPS Power Switch periodically enables and disables switching, effectively reducing the average switching losses and the IC's quiescent current. This allows the power supply to maintain a regulated output with minimal energy draw when the main load is inactive. By intelligently managing its operation, the FSD200 SMPS Power Switch significantly contributes to lowering the overall power consumption of the end product in standby mode, leading to energy savings and reduced environmental impact.

4. What are the typical input voltage range and output power capabilities when designing with the FSD200 SMPS Power Switch?

   The FSD200 SMPS Power Switch is primarily designed for offline AC-DC power conversion, making it suitable for universal input voltage applications, typically ranging from 85VAC to 265VAC. This wide input range accommodates global power standards. Its output power capabilities depend on the specific variant of the FSD200 SMPS Power Switch, the chosen transformer design, and thermal management. Generally, these devices are well-suited for power levels ranging from a few watts up to approximately 20-30W for non-isolated designs, and similar ranges for isolated flyback configurations, making them ideal for auxiliary power supplies, LED lighting drivers, and consumer electronics adapters. Proper component selection and thermal design are crucial to maximize the FSD200 SMPS Power Switch's output power and ensure long-term reliability within the specified operating conditions.

5. In what common power supply topologies is the FSD200 SMPS Power Switch most effectively utilized?

   The FSD200 SMPS Power Switch is most commonly and effectively utilized in flyback converter topologies, particularly for offline AC-DC applications. The integrated power MOSFET and control circuitry make it an excellent choice for isolated power supplies requiring a simple, cost-effective, and compact solution. Its current-mode control scheme inherently provides good line and load regulation, making it suitable for applications like smartphone chargers, auxiliary power supplies in larger equipment, LED drivers, and standby power modules. While primarily optimized for flyback, its versatility might allow for use in other non-isolated topologies like buck converters for specific low-power, non-isolated applications, provided the design constraints align with its internal structure. The FSD200 SMPS Power Switch simplifies the design process for these common topologies by consolidating multiple components into a single package.

6. What considerations are important for thermal management when implementing the FSD200 SMPS Power Switch in a design?

   Effective thermal management is crucial for ensuring the long-term reliability and optimal performance of the FSD200 SMPS Power Switch. As an integrated power switch, it dissipates heat primarily through its package, especially the drain pin connected to the PCB copper. Designers must ensure adequate copper area on the PCB, acting as a heatsink, to dissipate heat effectively. Depending on the power level and ambient temperature, additional heatsinking might be required, or the PCB layout might need optimization for thermal conductivity, potentially using thermal vias. It's essential to keep the junction temperature of the FSD200 SMPS Power Switch below its maximum specified limit to prevent premature failure and ensure stable operation. Careful calculation of power dissipation, considering efficiency and load, is necessary to design an appropriate thermal solution and avoid triggering the integrated Over-Temperature Protection (OTP).

7. Does the FSD200 SMPS Power Switch offer fixed or variable switching frequency, and how does this impact EMI and efficiency?

   The FSD200 SMPS Power Switch typically operates with a fixed switching frequency, which is internally set or externally programmable within a certain range. This fixed-frequency operation simplifies filter design for electromagnetic interference (EMI) and allows for predictable ripple characteristics in the output. While fixed frequency generally provides stable operation, some variants might incorporate frequency jittering or modulation techniques to spread the energy spectrum, thereby reducing peak EMI emissions and simplifying compliance with EMI standards. The choice of switching frequency also directly impacts efficiency; a higher frequency can allow for smaller magnetics but may increase switching losses, while a lower frequency might reduce switching losses but require larger passive components. The FSD200 SMPS Power Switch is optimized to balance these factors, providing a robust solution with manageable EMI and good efficiency for its target applications.
