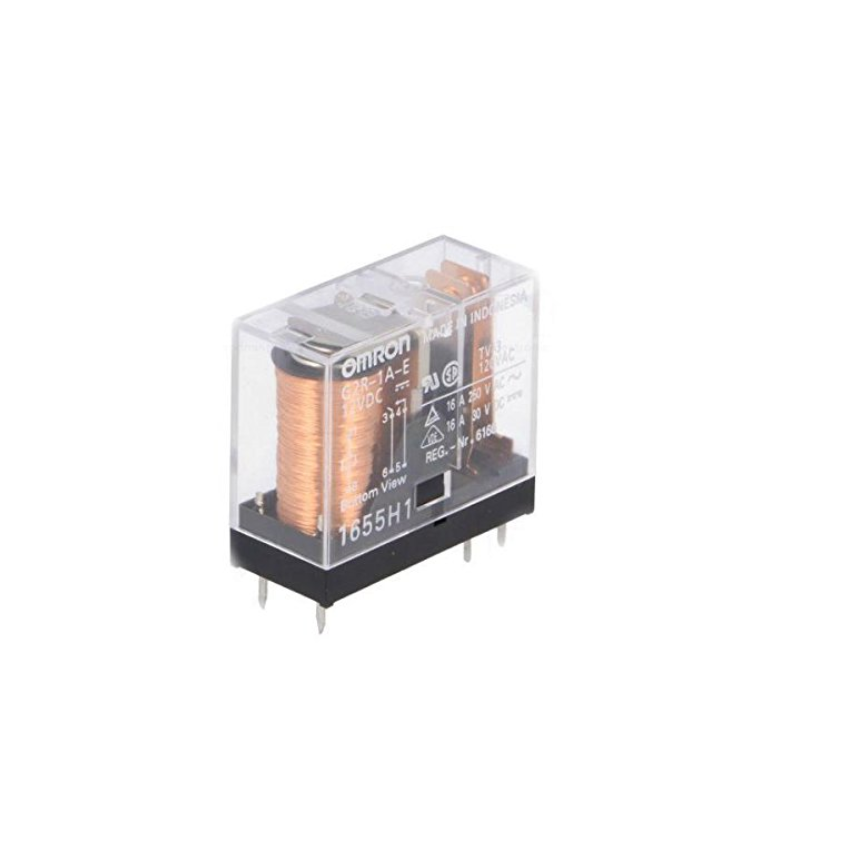

G2R-1A-E-12DC OMRON RELAY 12VDC, 30mΩ, 16A/250VAC

The Omron G2R-1A-E-12DC Power Relay is a premium electromechanical component designed for high-capacity switching and exceptional reliability in a compact form factor. As part of Omron's world-renowned G2R series, this relay is engineered to meet the rigorous demands of both industrial automation and consumer appliance applications. It features a 12VDC coil and a single-pole, normally open (SPST-NO) contact configuration, capable of switching loads up to 16A at 250VAC. This high switching capacity makes it an ideal choice for controlling heavy-duty loads such as motors, heaters, and high-wattage lighting systems. With Omron's reputation for quality, the G2R-1A-E-12DC provides a dependable interface between low-power control circuits and high-power electrical loads, ensuring safe and efficient operation over millions of cycles.

One of the key technical advantages of the G2R-1A-E-12DC is its remarkably low contact resistance, typically measured at just 30mΩ. This low resistance minimizes power loss and heat generation at the contact points, which is crucial for maintaining the efficiency of the power system and extending the life of the relay itself. The relay is designed with high-quality contact materials that resist welding and pitting, even when switching inductive or high-inrush current loads. This ensures consistent electrical performance and reduces the need for frequent maintenance or replacement. For designers, this means higher reliability for the end-user and a reduction in potential field failures. The precision engineering behind the G2R series ensures that every click of the relay is a testament to its durability and superior construction, making it a staple in professional electronic designs.

Safety and isolation are fundamental to the design of the Omron G2R-1A-E-12DC. It provides a high level of dielectric strength and impulse withstand voltage between the coil and the contacts, ensuring that sensitive control electronics are fully isolated from high-voltage AC lines. This isolation is critical for protecting microcontrollers and other low-voltage components from transients and electrical noise. The relay is designed to meet stringent international safety standards, including UL, CSA, and VDE certifications, providing peace of mind for engineers who must comply with global regulatory requirements. The physical design of the relay includes generous creepage and clearance distances, further enhancing its safety profile. Whether used in a medical device or a home furnace controller, the G2R-1A-E-12DC offers the isolation and protection necessary for secure and reliable operation.

The mechanical design of the G2R-1A-E-12DC is optimized for PCB mounting, featuring a standard footprint that allows for easy integration into a wide variety of board layouts. Its compact dimensions make it suitable for applications where space is at a premium, without sacrificing the power handling capabilities required for industrial tasks. The relay's housing is made from high-grade, flame-retardant materials that provide excellent environmental protection and mechanical stability. This ensures that the internal components are shielded from dust, moisture, and vibration, which are common challenges in industrial environments. The pins are designed for secure soldering, providing a robust electrical connection that can withstand the thermal cycling associated with high-current switching. This combination of mechanical toughness and electrical precision makes the G2R-1A-E-12DC a versatile tool for any hardware developer.

Applications for the Omron G2R-1A-E-12DC Power Relay are incredibly diverse, spanning across multiple industries. In the realm of home automation and appliances, it is frequently used in HVAC systems, washing machines, and refrigerators to control compressors and heating elements. In industrial settings, it serves as a reliable switching element in PLCs, timers, and security systems. Its ability to handle 16A makes it particularly useful for power distribution units and smart plug designs. The 12VDC coil is compatible with a wide range of standard power supplies, making it easy to drive from common transistor or logic-level circuits. For hobbyists and professional engineers alike, the G2R-1A-E-12DC represents a high-performance, cost-effective solution for any project that requires the safe and efficient switching of mains-level voltages.

In conclusion, the Omron G2R-1A-E-12DC Power Relay is a top-tier switching component that offers a perfect balance of power, safety, and reliability. Its high 16A rating, combined with low contact resistance and excellent isolation, makes it a superior choice for a wide range of demanding applications. By choosing an Omron product, you are benefiting from decades of expertise in relay technology and a commitment to quality that is recognized worldwide. This relay is not just a component; it is a guarantee of performance for your electronic systems. Ensure the longevity and safety of your designs by incorporating the G2R-1A-E-12DC into your next project. Order now to secure the high-capacity switching performance and industrial-grade dependability that only Omron can deliver, and take your power control designs to the next level of excellence.
