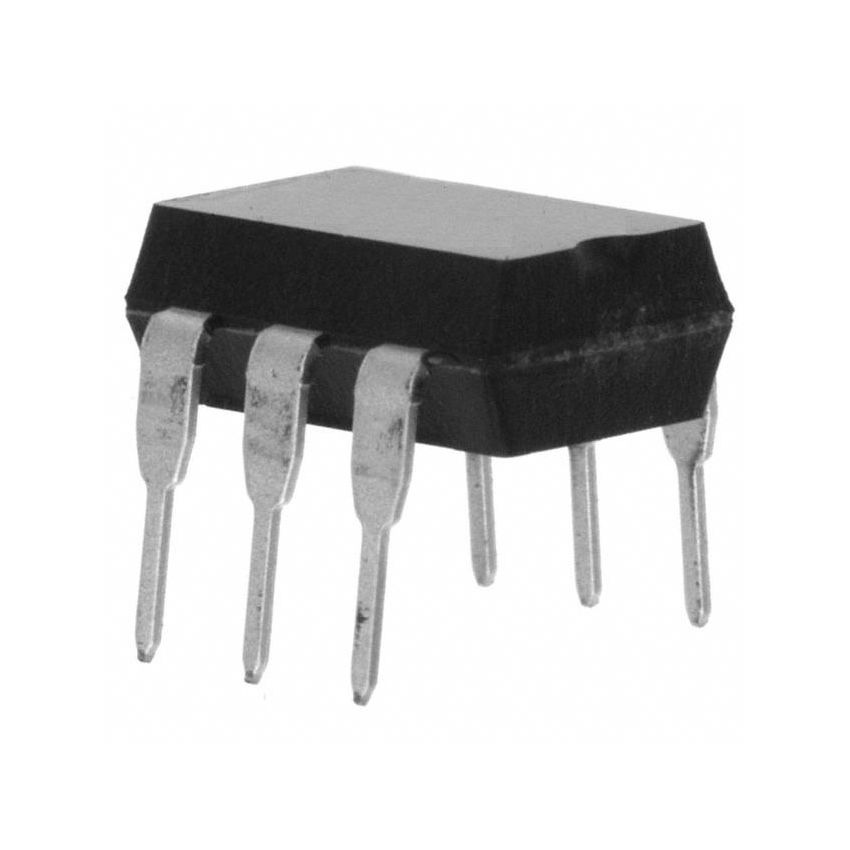

H11B1 OPTOISO 5KV DARL W/BASE 6DIP

The H11B1 is a high-performance optoisolator featuring a Darlington transistor output and a 5kV isolation voltage, housed in a 6-pin DIP package. This optoisolator provides electrical isolation between input and output circuits, protecting sensitive electronic components from high voltages, noise, and transient signals. The Darlington transistor output offers high current transfer ratio, making it ideal for driving a variety of loads. The H11B1 is a versatile solution for a wide range of applications, including industrial control, power electronics, and telecommunications. Its robust design and high isolation voltage ensure reliable performance in demanding environments.

This optoisolator utilizes an infrared emitting diode (IRED) and a Darlington phototransistor to achieve electrical isolation. When current flows through the IRED, it emits infrared light, which activates the phototransistor. The Darlington configuration of the phototransistor provides high current gain, allowing the H11B1 to drive loads with relatively low input current. The 5kV isolation voltage ensures that the input and output circuits are electrically isolated, preventing damage from high-voltage transients. The H11B1's fast switching speed enables it to transmit signals with minimal delay. Its compact DIP package allows for easy integration into existing circuit boards.

The H11B1 is equipped with several features that enhance its usability and performance. It operates on a wide supply voltage range, providing flexibility in power supply selection. The optoisolator also features a high common-mode transient immunity, minimizing the effects of noise and interference. Its TTL-compatible input allows for seamless integration with standard logic circuits. The H11B1 is available in various lead-free options, catering to environmental regulations. Its simple and straightforward operation makes it easy to use for both experienced and novice designers. The base connection allows for further control of the transistor.

This optoisolator finds applications in a wide range of industries, including industrial automation, power electronics, and telecommunications. In industrial automation, it is used for isolating control signals from high-voltage motor drives and power supplies. In power electronics, it is used for isolating gate drive signals in switching power supplies and inverters. In telecommunications, it is used for isolating data signals in communication equipment. The H11B1 is a versatile and reliable component that can improve system safety and performance.

Protect your sensitive electronic circuits with the H11B1 optoisolator. Its high isolation voltage, Darlington transistor output, and versatile features make it an ideal choice for demanding applications. Improve your system safety, reduce noise, and enhance overall performance with this high-quality optoisolator. Order yours today and experience the benefits of reliable electrical isolation. Don't wait, invest in the H11B1 and safeguard your electronic designs.
