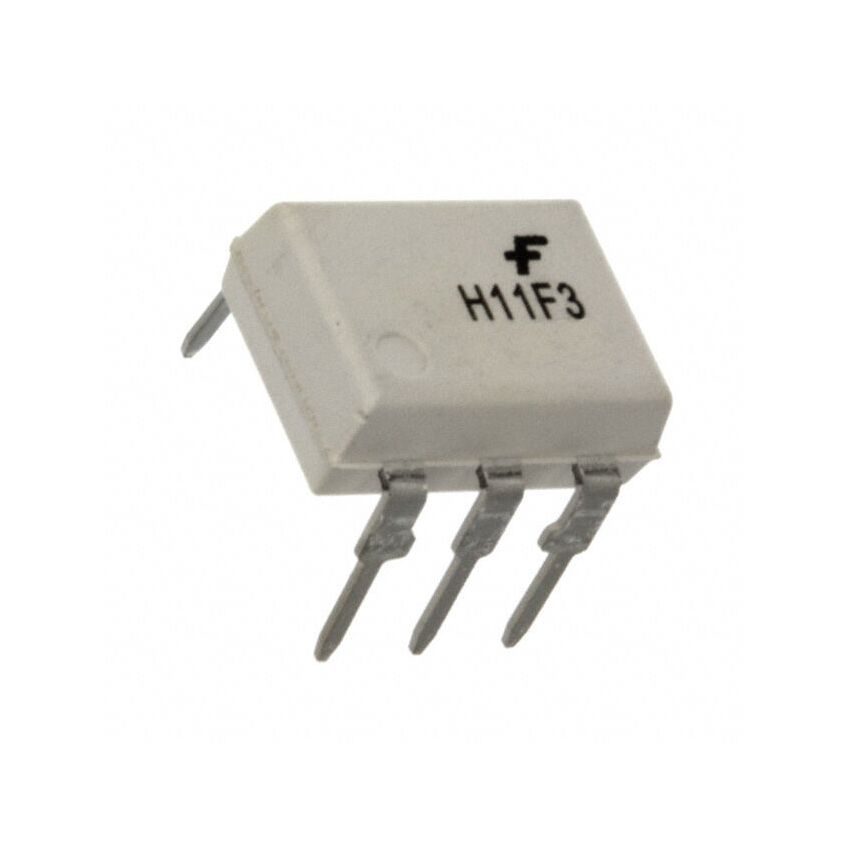

H11F3 OPTOCOUPLER INTEGRATED CIRCUIT DIP-6 H11F3M

The H11F3 optocoupler is a high-performance integrated circuit (IC) housed in a DIP-6 (Dual In-line Package) designed to provide galvanic isolation between circuits. This optocoupler, specifically the H11F3M variant, is engineered for applications requiring high isolation voltage and robust signal transfer. An optocoupler, also known as an optoisolator, transfers electrical signals between two isolated circuits by using light. This isolation protects sensitive control circuitry from high voltages and electrical noise, preventing damage and ensuring reliable operation. The H11F3 features a gallium arsenide (GaAs) infrared LED as the input stage and a silicon bilateral analog FET as the output stage. The LED emits light when a current is applied, and this light activates the FET, allowing current to flow in the output circuit.

This design offers excellent linearity and low distortion, making it ideal for analog signal isolation. Key specifications of the H11F3 include a high isolation voltage, typically up to 5300 VRMS, providing robust protection against voltage spikes and surges. The input current is usually around 10mA, while the output voltage can range up to 30V. The H11F3M variant often offers enhanced performance characteristics, such as tighter tolerances and improved stability. This optocoupler is commonly used in industrial control systems, motor control, power supplies, and data acquisition systems. In industrial environments, where electrical noise and high voltages are prevalent, the H11F3 protects sensitive microcontrollers and control circuits from damage.

In motor control applications, it isolates the control signals from the high-power motor drive circuits, ensuring safe and reliable operation. In power supplies, the optocoupler provides isolation between the primary and secondary sides, preventing dangerous voltage transfer. In data acquisition systems, it isolates analog signals from the digital control circuitry, improving signal integrity and reducing noise. The H11F3 optocoupler offers several advantages over traditional isolation methods. Its compact size and DIP-6 package allow for easy integration into circuit boards. Its high isolation voltage provides superior protection compared to transformers or relays.

Its low input current and fast switching speed make it suitable for a wide range of applications. The H11F3 is also known for its long-term reliability and stability, ensuring consistent performance over its lifespan. Engineers frequently use the H11F3 in applications requiring precise analog signal isolation, such as audio circuits, instrumentation amplifiers, and sensor interfaces. Its linear output characteristic minimizes distortion, preserving the integrity of the analog signal. Furthermore, the H11F3 is compliant with various safety standards, ensuring its suitability for use in safety-critical applications. When selecting an optocoupler, it is crucial to consider the isolation voltage, input current, output voltage, and switching speed requirements of the application.

The H11F3 offers a balanced combination of these characteristics, making it a versatile choice for a wide range of isolation needs. Secure your systems with the reliable isolation offered by the H11F3 optocoupler. Order yours today and protect your valuable circuitry!
