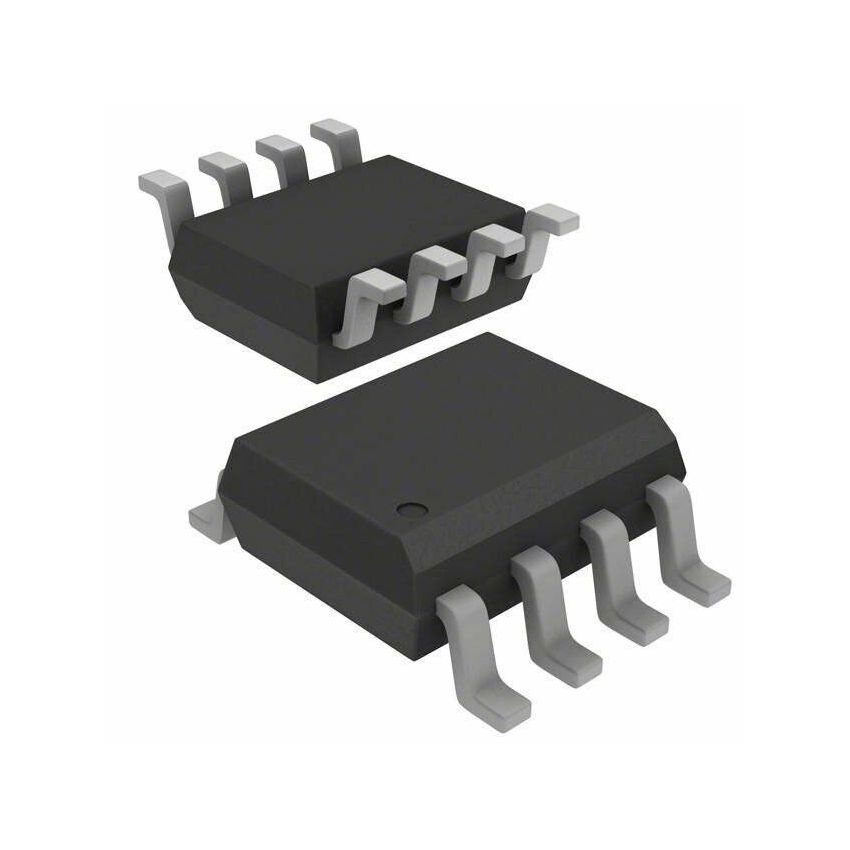

HCLP7100 High Speed CMOS Optocouplers SOP-8

The HCLP7100 is a high-speed CMOS optocoupler available in an 8-pin Small Outline Package (SOP-8). This compact optocoupler provides robust galvanic isolation between input and output circuits, ensuring excellent electrical insulation and noise immunity. Designed for high-speed digital communication and control applications, its CMOS compatibility and efficient performance make it a versatile choice. The HCLP7100 utilizes an LED on the input side and a high-speed CMOS detector on the output side, facilitating rapid and dependable signal transfer across the isolation barrier. This device excels in applications demanding high data rates and minimal power consumption.

Featuring a typical propagation delay of just a few nanoseconds, the HCLP7100 enables swift data transmission. Its CMOS output seamlessly integrates with various logic families, including TTL and CMOS. The optocoupler boasts a high common-mode transient immunity (CMTI), effectively preventing false triggering caused by noise or voltage transients. The SOP-8 package is ideal for surface mount technology (SMT), allowing for efficient board assembly and space-saving designs. Compliant with stringent safety standards, the HCLP7100 delivers reliable isolation in critical applications.

The HCLP7100 finds widespread use in diverse fields such as industrial automation, motor control, switched-mode power supplies, and data communication systems. It serves to isolate sensitive control circuits from high-voltage or electrically noisy environments, enhancing system reliability. Its high-speed capabilities make it suitable for applications requiring rapid data transfer, such as digital interfaces and communication links. The low power consumption inherent in CMOS technology makes it an excellent choice for battery-operated devices and energy-conscious designs. The HCLP7100 stands as a versatile and dependable solution for galvanic isolation in a broad spectrum of electronic systems.

When integrating the HCLP7100 into your designs, it's crucial to adhere to proper handling precautions for CMOS devices. Electrostatic discharge (ESD) can potentially damage the IC, so it's advisable to use an anti-static wrist strap and work on a grounded surface. Additionally, ensure that you do not exceed the maximum voltage and current ratings specified in the datasheet. Employ appropriate decoupling capacitors near the power supply pins to minimize noise and ensure stable operation. Always drive the input LED with a suitable current limiting resistor to prevent damage to the LED itself.

In summary, the HCLP7100 high-speed CMOS optocoupler in the SOP-8 package is a reliable and efficient component for providing galvanic isolation in high-speed digital applications. Its rapid propagation delay, CMOS compatibility, and high CMTI make it an invaluable asset in any electronics toolkit. Whether you're designing an industrial control system, a power supply, or a data communication link, the HCLP7100 offers a dependable and cost-effective solution. Order your HCLP7100 today and ensure safe and efficient signal isolation in your next project, optimizing both performance and reliability!
