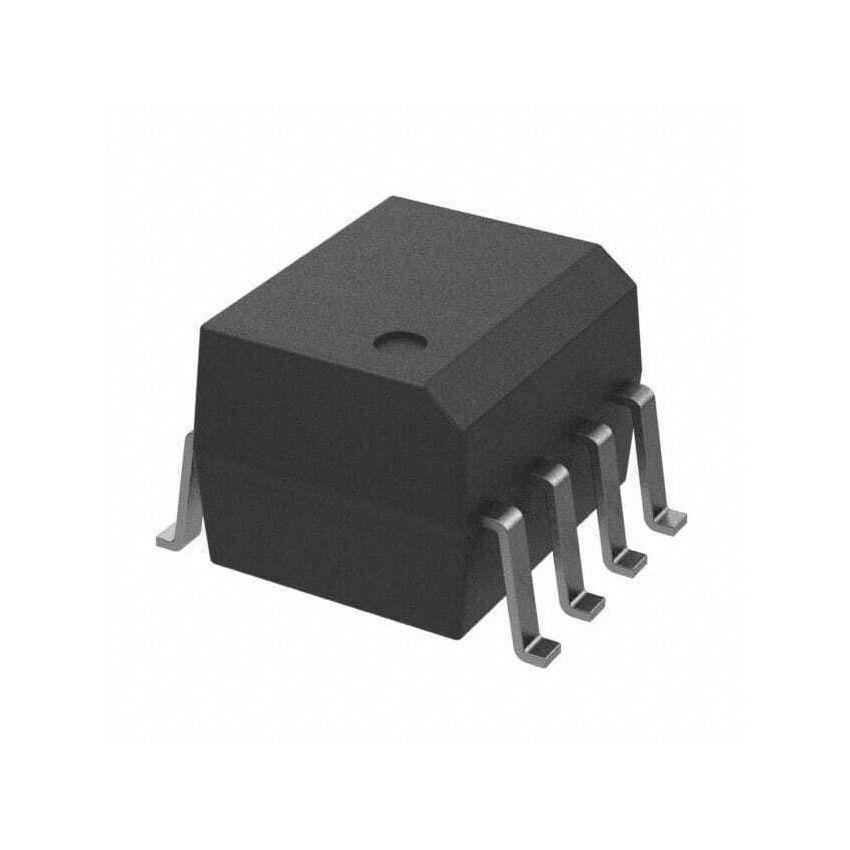

HCPL0701R2 OPTOCOUPLER SGL DARL OUT 8-SOIC

The HCPL0701R2 is a single-channel optocoupler featuring a Darlington transistor output, designed for electrical isolation and signal transfer in a compact 8-SOIC (Small Outline Integrated Circuit) package. This optocoupler provides high common-mode transient immunity (CMTI), making it suitable for noisy industrial environments. It is ideal for isolating sensitive circuits from high-voltage or high-current signals, ensuring reliable and safe operation. The HCPL0701R2 is commonly used in applications such as motor control, power supplies, and digital logic interfaces.

This optocoupler consists of an LED (light-emitting diode) and a photodetector, which are optically coupled to provide electrical isolation between the input and output circuits. The Darlington transistor output offers high current transfer ratio (CTR), enabling it to drive a wide range of loads. The HCPL0701R2 operates on a single 5V power supply and features a wide operating temperature range. Its small size and low power consumption make it suitable for space-constrained and battery-powered applications. The device also includes built-in protection features to prevent damage from overvoltage and overcurrent conditions.

Key features of the HCPL0701R2 include its single-channel configuration, providing isolation for one signal path. The Darlington transistor output offers high current transfer ratio. The 8-SOIC package allows for easy integration into circuit boards. The high common-mode transient immunity ensures reliable operation in noisy environments. The wide operating temperature range makes it suitable for various applications. These features combine to make the HCPL0701R2 a versatile and reliable optocoupler solution.

The HCPL0701R2 finds applications in a wide range of industrial and commercial devices, including motor control systems, power supplies, and digital logic interfaces. Its electrical isolation capability protects sensitive circuits from high-voltage or high-current signals. The high CMTI ensures reliable operation in noisy environments. The Darlington transistor output can drive a variety of loads. Whether you are designing a new industrial control system or upgrading an existing power supply, the HCPL0701R2 offers a compelling combination of performance, reliability, and ease of use.

Isolate and protect your circuits with the HCPL0701R2 optocoupler. Experience the benefits of high CMTI, Darlington transistor output, and compact 8-SOIC package. Order yours today and ensure your systems operate safely and reliably. Don't compromise on isolation – choose the HCPL0701R2 for your critical signal isolation needs and optimize your system's performance. Invest in the HCPL0701R2 and see the difference in your isolation applications. Get yours now!
