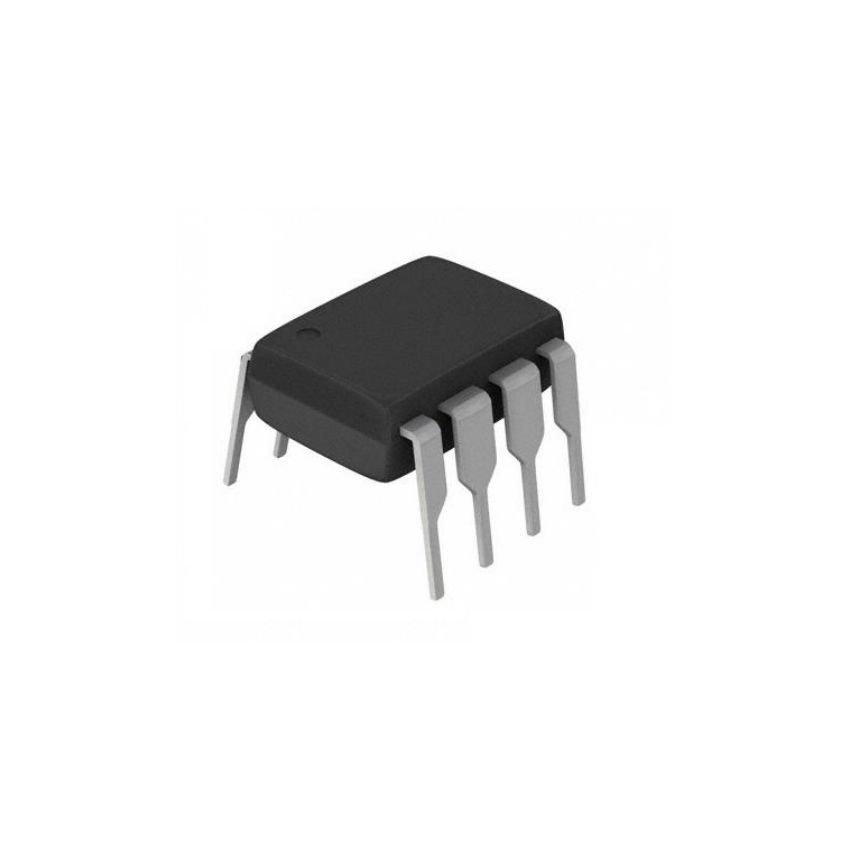

HCPL2200 OPTOISO 3.75KV TRI-STATE 8-DIP

The HCPL2200 is a high-performance optocoupler featuring a 3.75 kV isolation voltage and a tri-state output, all housed in an 8-DIP package. This optoisolator is designed to provide electrical isolation between input and output circuits, protecting sensitive components from voltage spikes and surges. Its tri-state output allows for multiple devices to share a common bus, making it ideal for applications requiring data transmission and control in noisy environments. The HCPL2200 ensures reliable signal transfer while maintaining a high level of electrical safety, crucial for industrial and medical equipment.

This optocoupler utilizes an LED as its input stage and a photodiode and high-gain amplifier as its output stage. This configuration enables fast switching speeds and excellent common-mode transient immunity, preventing spurious signals from affecting the output. The 8-DIP package provides easy integration into existing circuit boards, and its robust design ensures long-term reliability. The HCPL2200 is suitable for isolating microprocessors, logic circuits, and power supplies, offering a versatile solution for various isolation needs.

Key features of the HCPL2200 include its high isolation voltage of 3.75 kV, which meets stringent safety standards, and its tri-state output, which simplifies bus interfacing. The device also boasts a wide operating temperature range, making it suitable for harsh environments. Its compact 8-DIP package saves valuable board space, and its low input current requirement minimizes power consumption. These features make the HCPL2200 an excellent choice for applications where isolation, speed, and reliability are paramount.

Typical applications for the HCPL2200 include isolating digital logic, microprocessor system interfaces, and power supply feedback loops. It is also commonly used in industrial control systems, medical equipment, and data communication devices. By providing a robust barrier against high voltages and electrical noise, the HCPL2200 ensures the safe and reliable operation of critical systems. Its tri-state output further enhances its versatility, allowing it to be used in a wide range of applications.

In summary, the HCPL2200 optocoupler offers a combination of high isolation voltage, fast switching speeds, and a convenient 8-DIP package. Its tri-state output and robust design make it an ideal choice for applications requiring reliable signal transfer and electrical safety. Upgrade your system's isolation capabilities with the HCPL2200 today and experience enhanced performance and protection. Order now to ensure your circuits are safeguarded against voltage spikes and noise, improving overall system reliability and longevity.
