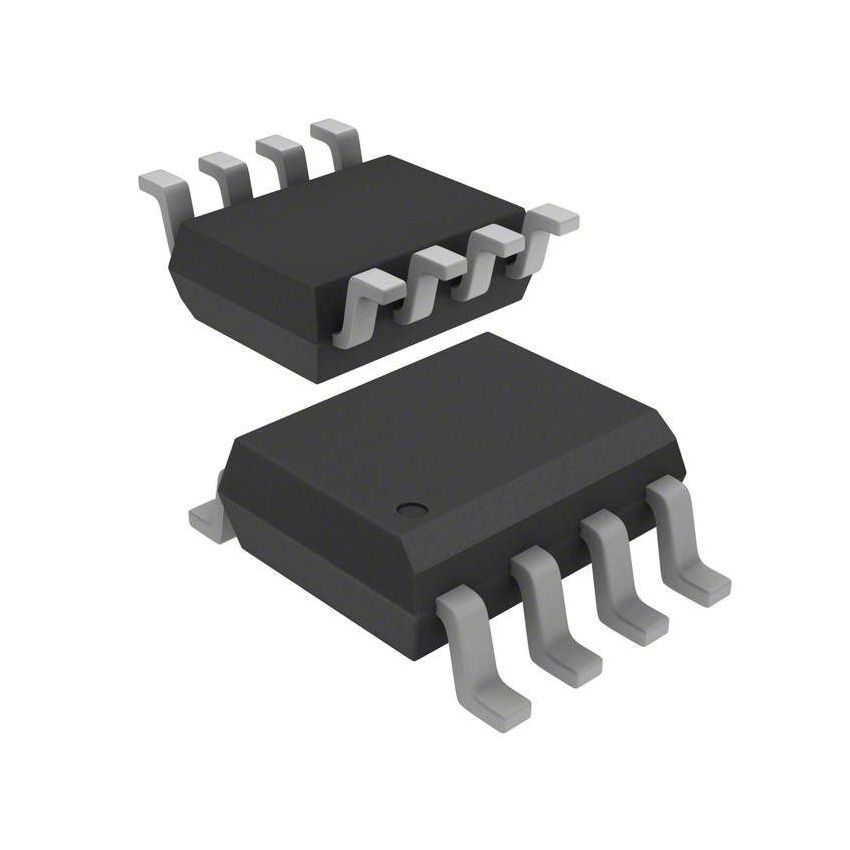

HCPL2231 OPTOISO 3.75KV 2CH PSH PULL 8SOP

The HCPL2231 is a dual-channel optocoupler designed for high-performance isolation with a 3.75 kV isolation voltage. Housed in a compact 8-SOP (Small Outline Package), this device features a push-pull output configuration, making it ideal for applications requiring high-speed data transmission and robust noise immunity. This optoisolator ensures reliable signal transfer while protecting sensitive components from high-voltage transients and ground loops, crucial for maintaining the integrity of control and communication systems in industrial and commercial environments.

This optocoupler utilizes two independent LED input stages coupled with photodiode and high-gain amplifier output stages to achieve fast switching speeds and excellent common-mode transient immunity. The 8-SOP package allows for surface mount technology (SMT) assembly, saving valuable board space and simplifying manufacturing processes. The HCPL2231 is well-suited for isolating microprocessors, logic circuits, and power supplies, offering a versatile solution for diverse isolation needs where bidirectional signal transmission is required.

Key features of the HCPL2231 include its high isolation voltage of 3.75 kV, meeting stringent safety standards for electrical isolation. Its dual-channel configuration allows for simultaneous isolation of two independent signals, reducing component count and board space. The push-pull output provides enhanced noise immunity and faster switching speeds compared to traditional open-collector outputs. The device also offers a wide operating temperature range, ensuring reliable performance in harsh environments. The compact 8-SOP package is ideal for space-constrained applications.

Typical applications for the HCPL2231 include isolating digital logic, microprocessor system interfaces, and power supply feedback loops. It is commonly used in industrial control systems, medical equipment, and data communication devices where electrical isolation and high-speed data transmission are critical. By providing a robust barrier against high voltages and electrical noise, the HCPL2231 ensures the safe and reliable operation of critical systems. Its dual-channel configuration and push-pull output make it ideal for applications requiring bidirectional communication and high noise immunity.

In summary, the HCPL2231 optocoupler offers a combination of high isolation voltage, fast switching speeds, and a space-saving 8-SOP package. Its dual-channel configuration and push-pull output make it an ideal choice for applications requiring reliable signal transfer, electrical safety, and high noise immunity in compact designs. Upgrade your system's isolation capabilities with the HCPL2231 today and experience enhanced performance and protection. Order now to ensure your circuits are safeguarded against voltage spikes and noise, improving overall system reliability and longevity in space-sensitive applications requiring bidirectional signal isolation.
