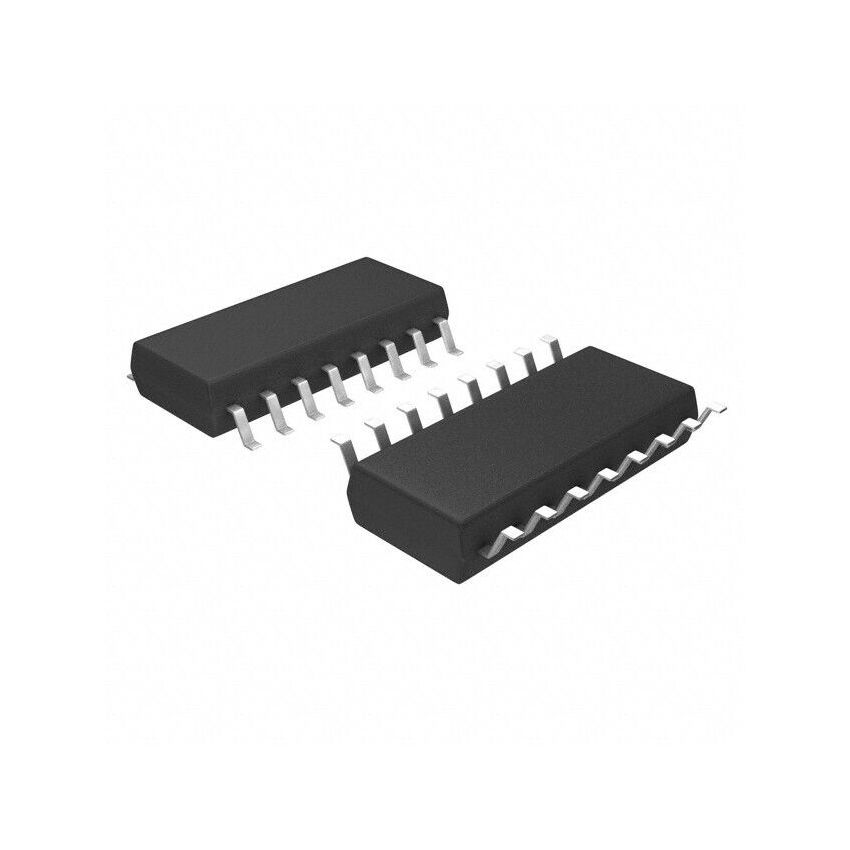

HEF4094BT.653 IC: digital; shift and store,register; CMOS; SMD; SO16; 3÷15VDC

The HEF4094BT.653 is a versatile 8-stage shift and store bus register integrated circuit (IC) fabricated using CMOS technology. This digital IC is designed for serial-to-parallel data conversion and is commonly used in applications such as remote control systems, display drivers, and data acquisition systems. Packaged in a compact SO16 (Small Outline 16-pin) surface-mount device (SMD), the HEF4094BT.653 offers a wide operating voltage range of 3V to 15VDC, making it compatible with various logic families. Its low power consumption and high noise immunity make it an ideal choice for battery-powered and noise-sensitive applications. Explore the possibilities with this versatile IC and streamline your digital designs.

This shift and store register IC features a serial data input (SER), a clock input (CLK), a strobe input (STR), and eight parallel outputs (Q0-Q7). The serial data is shifted into the register on the rising edge of the clock signal. When the strobe input is high, the data in the shift register is transferred to the store register, and the parallel outputs reflect the stored data. The HEF4094BT.653 also includes an output enable (OE) input, which allows the outputs to be disabled, providing a high-impedance state. This feature is useful for multiplexing applications and for preventing bus contention. Its comprehensive feature set makes it a valuable component for various digital circuits.

The HEF4094BT.653 IC is well-suited for a wide range of applications. In remote control systems, it can be used to decode serial data transmitted from a remote control unit and drive various output devices, such as LEDs, relays, and motors. In display driver circuits, it can be used to convert serial data into parallel data for driving LED displays, LCD displays, and other types of displays. In data acquisition systems, it can be used to collect data from multiple sensors and transmit it serially to a microcontroller or computer. The IC's versatility and ease of use make it a popular choice among engineers and hobbyists.

Engineers and technicians appreciate the HEF4094BT.653 for its ease of use and reliable performance. Its standard SO16 package simplifies soldering and assembly, while its well-defined logic levels make it easy to interface with other digital circuits. Comprehensive datasheets and application notes are readily available, providing designers with the information they need to optimize their circuits for maximum performance. Whether you are designing a new remote control system, display driver, or data acquisition system, the HEF4094BT.653 IC offers a compelling combination of performance, reliability, and value.

Ready to streamline your digital designs? The HEF4094BT.653 IC is your go-to solution for serial-to-parallel data conversion. With its wide operating voltage range, low power consumption, and versatile feature set, this IC delivers exceptional performance in a variety of applications. Don't settle for less – choose the HEF4094BT.653 for your next project and experience the difference. Order yours today and simplify your digital circuits! Benefit from its output enable feature and its high noise immunity.
