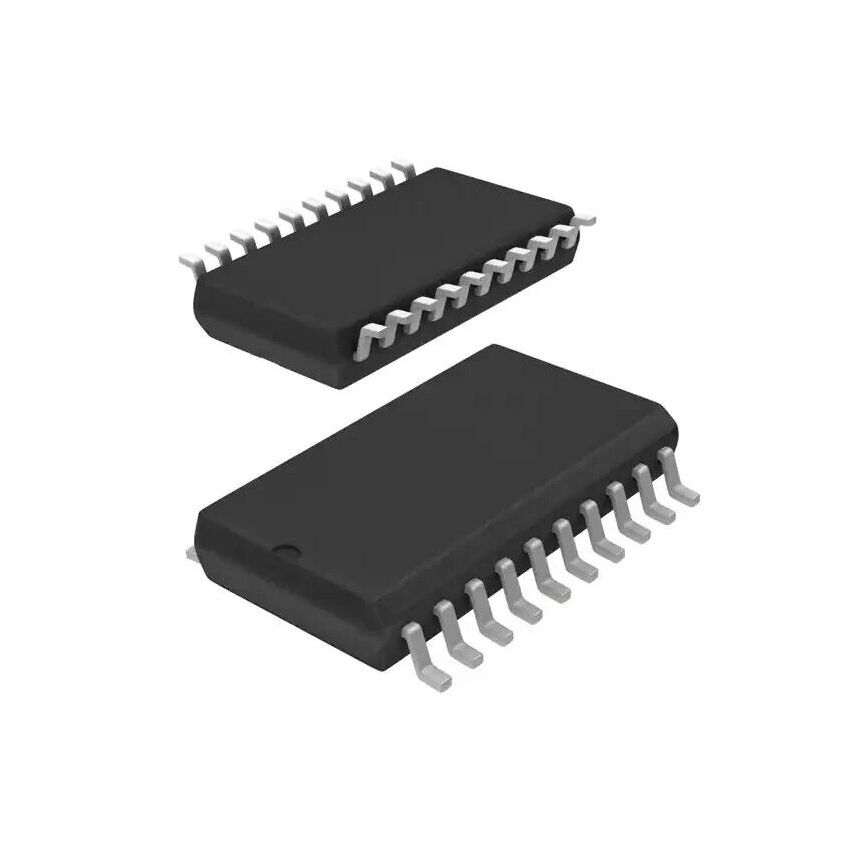

HEF4894BT IC SHIFT REGISTER 12STAGE 20SOIC

The HEF4894BT is a 12-stage static shift register fabricated using advanced silicon-gate CMOS technology. Encased in a compact 20-SOIC (Small Outline Integrated Circuit) package, this integrated circuit offers a versatile solution for serial-to-parallel data conversion, delay lines, and general-purpose storage applications. Its static design ensures that data is retained as long as power is applied, eliminating the need for refresh cycles and simplifying system design. The HEF4894BT operates over a wide supply voltage range, typically from 3V to 15V, making it compatible with various logic families and power supply configurations. This robust operating voltage range enhances its adaptability in diverse electronic systems.

Key features of the HEF4894BT include its 12 independent storage stages, each capable of holding one bit of data. Data is serially shifted into the register on the rising edge of the clock signal. A dedicated data input pin allows for easy integration with serial data streams. The device also incorporates a master reset input, which clears all storage stages to a logic low state, providing a convenient method for initializing the register. The 20-SOIC package ensures efficient heat dissipation and ease of soldering, making it suitable for both prototyping and mass production environments. Its compact size allows for high-density board layouts.

The HEF4894BT finds applications in a wide array of electronic systems. In digital displays, it can be used to convert serial data from a microcontroller into parallel data for driving LEDs or other display elements. In communication systems, it can serve as a delay line, introducing a precisely controlled delay into the signal path. Its storage capabilities make it suitable for implementing simple memory functions or data buffering. Furthermore, the HEF4894BT can be employed in sequencing and control circuits, where it can generate a series of timed pulses or control signals based on the input data. Its versatility makes it a valuable component in various digital logic designs.

When selecting a shift register, consider the HEF4894BT for its reliable performance, ease of use, and wide operating voltage range. Its static design simplifies system integration, while its compact 20-SOIC package allows for efficient board layouts. Whether you are designing digital displays, communication systems, or control circuits, the HEF4894BT offers a robust and versatile solution for your data storage and manipulation needs. Explore the possibilities and integrate the HEF4894BT into your next project to experience its reliable performance and design flexibility. Order yours today and unlock the potential of this versatile shift register!
